COGIS - WELL SCOUT CARD

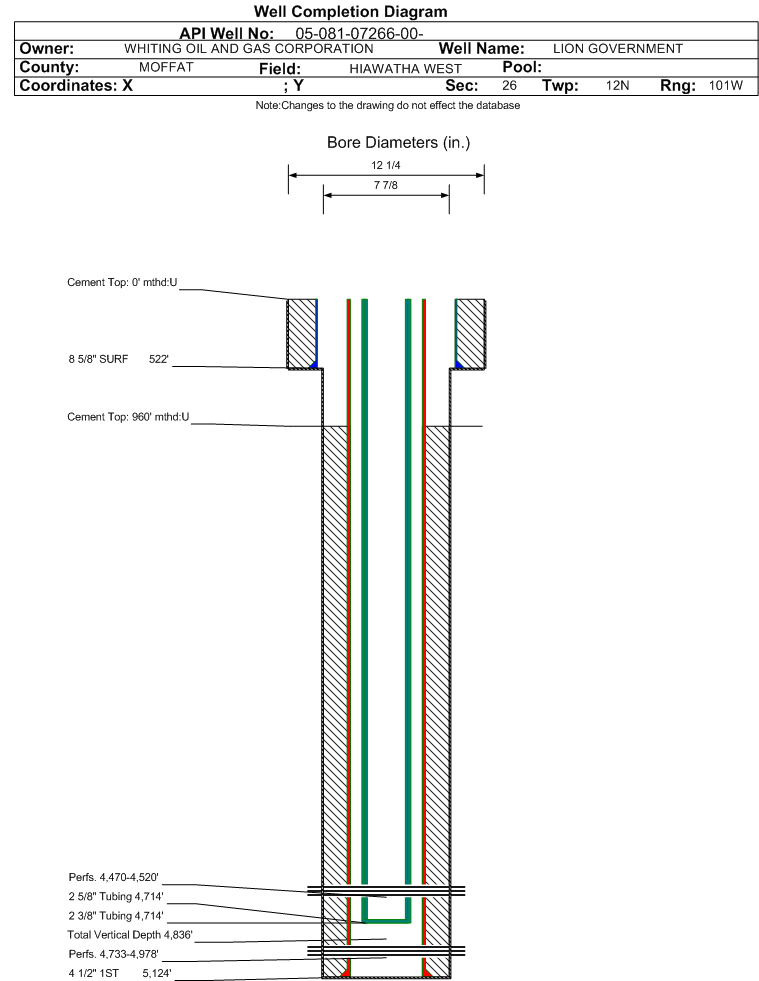

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-081-07266		Well Classification: GW Status: PR - 7/1/2024
Well Name/No:LION GOVERNMENT #31-26D
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:HILCORP ENERGY COMPANY - 10133
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/1/2024
FacilityID:282740LocationID:311773
County:MOFFAT #081Location:SENW 26 12N101W 6
Field:HIAWATHA WEST - #34351Elevation:6864 ft.
Basin:SAND WASH BASIN
Planned Location:1896FNL  1911 FWLLat/Long: 40.973246 / -108.718309Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.973205 / -108.718451Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/1/2024             Measured TD: 5124 ft.    Vertical TD: 4836 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/1/2024
Wellbore PermitDIRECTIONAL
Permit #:20054821 Expiration Date:1/18/2007
Proposed Top PZ Location:Sec:26 Twp: 12N 101W Footage: 983   2362
Bottom Hole Location:Sec:26 Twp: 12N 101W Footage: 983   2362
Proposed Depth/Form:4750 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: LWFTW , Formation: LEWIS-FORT UNION-WASATCH , Order: 133-22 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:12/13/2006
Spud Date:9/16/2006Spud Date Is:ACTUAL
Measured TD:5124 ft.Measured PB depth:5072 ft.
True Vertical TD:4836 ft.True Vertical PB depth:4784 ft.
Top PZ Location:Sec:26 Twp: 12N 101WFootage: 983 FNL  2362 FEL
Bottom Hole Location:Sec:26 Twp: 12N 101WFootage: 983 FNL  2362 FEL
Log Types:PND-GR-CCL (MD AND TVD); CBL (MD AND TVD); MUDLOG
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 522 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 366, Top: 0 ft., Bottom: 522 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5124 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 980, Top: 960 ft., Bottom: 5124 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NOT SPECIFIED2263 ft.NN
WASATCH3118 ft.NN
WASATCH G3585 ft.NN
FORT UNION4180 ft.NN
UNKNOWN4448 ft.NN
LEWIS4530 ft.NN

Formation LWIS                     Formation Classification:  GW                     Status:  PR - 7/1/2024                  Interval Top: 4733 ft.    Interval Bottom: 4978 ft.

 Completed Information for Formation LEWIS
1st Production Date:2/14/2007Choke Size:0.500 in.
Formation Name:LEWISCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/17/2006
Treatment Summary:4853'-4978'-180460# 20/40 WHITE SAND, 478 BBLS FLUID, 65Q N2
Tubing Size:2.666667 in.Tubing Setting Depth:4714 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/13/2007Test Method:SEPARATOR
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 2
BBLS_OIL 0
BTU_GAS 1124
CALC_BBLS_H2O 2
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 364
CASING_PRESS 200
MCF_GAS 364
TUBING_PRESS 160
Perforation Data:
Interval Top:4733 ft.# Of Holes:91
Interval Bottom:4978 ft.Hole Size:0.38 in.

Formation FTUN                     Formation Classification:  GW                     Status:  PR - 7/1/2024                  Interval Top: 4470 ft.    Interval Bottom: 4520 ft.

 Completed Information for Formation FORT UNION
1st Production Date:2/14/2007Choke Size:0.469 in.
Formation Name:FORT UNIONCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/6/2006
Treatment Summary:130100# 20/40 OTTAWA SAND, 322 BBLS FLUID, 65Q N2
Tubing Size:2.375 in.Tubing Setting Depth:4714 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/14/2006Test Method:SEPARATOR
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1111
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 132
CASING_PRESS 100
MCF_GAS 132
TUBING_PRESS 0
Perforation Data:
Interval Top:4470 ft.# Of Holes:48
Interval Bottom:4520 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)11412
GOR
GOR DeterminationMCFE
Average BOE per Day5.393
Average MCFE per Day31.255

 Federal Financial Assurance  i Y

 Tribal Well  i No
