COGIS - WELL SCOUT CARD

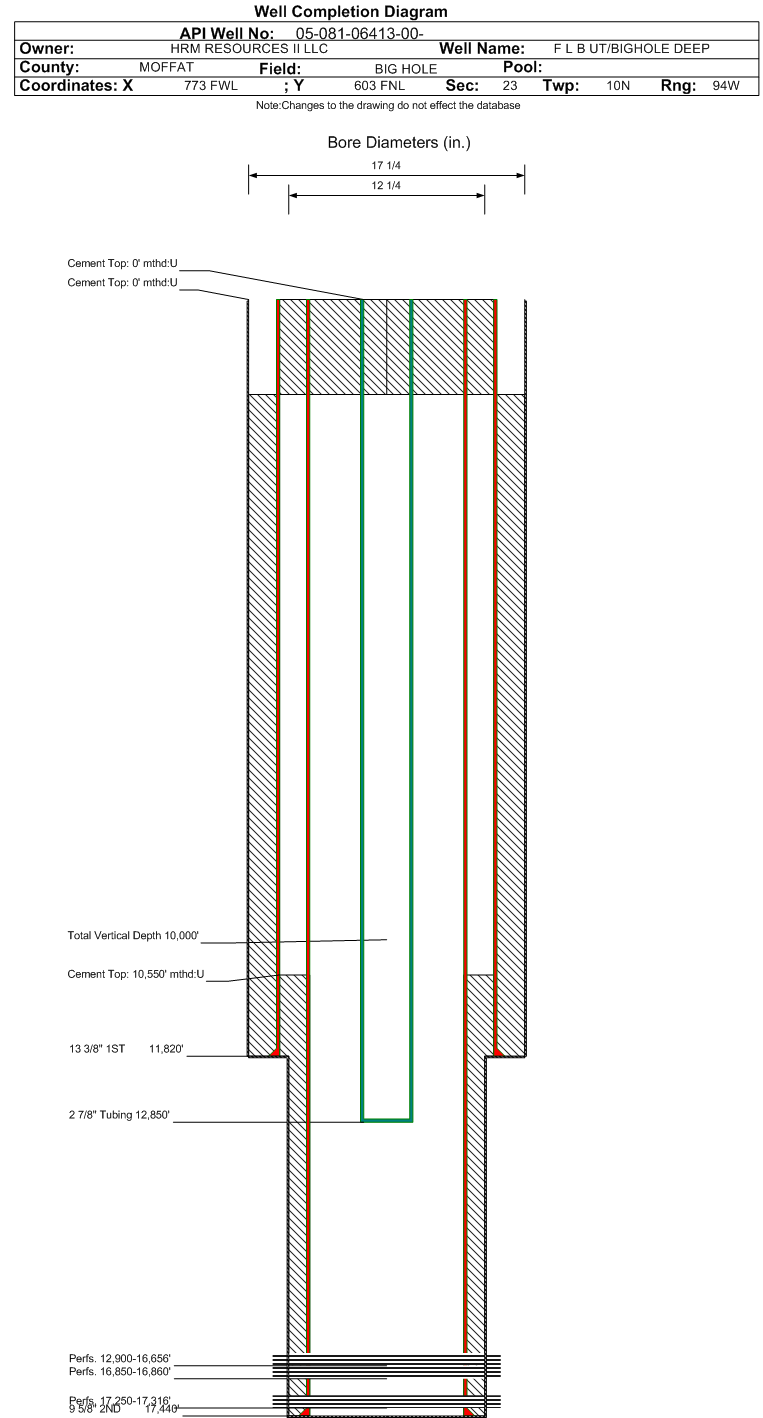

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-081-06413		Well Classification: GW Status: PA - 6/19/2014
Well Name/No:F L B UT/BIGHOLE DEEP #23-2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:WOLVERINE RESOURCES LLC - 10677
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:36135
Facility Status:PAStatus Date6/19/2014
FacilityID:223051LocationID:312964
County:MOFFAT #081Location:NWNW 23 10N94W 6
Field:BIG HOLE - #6450Elevation:6747 ft.
Basin:SAND WASH BASIN
Planned Location:603FNL  773 FWLLat/Long: 40.817432 / -107.922624Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.817480 / -107.922310Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 6/19/2014             Measured TD: 18535 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 6/19/2014
Wellbore Permit
Permit #:791438 Expiration Date:4/18/1980
Proposed Depth/Form:18400 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: MNCS , Formation: MANCOS , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:4/5/1981
Spud Date:1/29/1980Spud Date Is:ACTUAL
Measured TD:18535 ft.Measured PB depth:16683 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:DIL-GR, BHC-GR, FDC-CNL-GR, DLL-MSFL, CBL, CAL
Casing:String Type: SURF, Hole Size: , Size: , Top: 0 ft., Depth: 1484 ft., Weight: 133 , Citings Type: ACTUAL
Cement:Sacks: 1500, Top: 0 ft., Bottom: 1484 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 17.25 in., Size: 13.375 in., Top: 0 ft., Depth: 11820 ft., Weight: 72 , Citings Type: ACTUAL
Cement:Sacks: 3875, Top: 0 ft., Bottom: 11820 ft., Determination Method: CALC
Casing:String Type: 2ND, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 17440 ft., Weight: 53.5 , Citings Type: ACTUAL
Cement:Sacks: 2045, Top: 10550 ft., Bottom: 17440 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FORT UNION5146 ft.
LANCE6328 ft.
FOX HILLS6946 ft.
LEWIS SHALE7270 ft.
MESAVERDE8994 ft.
ILES10282 ft.
MANCOS11552 ft.
MORAPOS11722 ft.
NIOBRARA13902 ft.
FRONTIER16846 ft.
MOWRY17114 ft.
DAKOTA17238 ft.
LAKOTA17348 ft.
MORRISON17416 ft.

Formation DKTA                     Formation Classification:  GW                     Status:  AB - 1/31/1981                 Interval Top: 17250 ft.    Interval Bottom: 17316 ft.

 Completed Information for Formation DAKOTA
1st Production Date:N/AChoke Size:
Formation Name:DAKOTACommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation DKTA.
Perforation Data:
Interval Top:17250 ft.# Of Holes:
Interval Bottom:17316 ft.Hole Size:

Formation FRTR                     Formation Classification:  GW                     Status:  AB - 1/31/1981                 Interval Top: 16850 ft.    Interval Bottom: 16860 ft.

 Completed Information for Formation FRONTIER
1st Production Date:N/AChoke Size:
Formation Name:FRONTIERCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation FRTR.
Perforation Data:
Interval Top:16850 ft.# Of Holes:24
Interval Bottom:16860 ft.Hole Size:

Formation MNCS                     Formation Classification:  GW                     Status:  AB - 6/19/2014                 Interval Top: 12900 ft.    Interval Bottom: 16656 ft.

 Completed Information for Formation MANCOS
1st Production Date:3/1/1982Choke Size:1,864.000 in.
Formation Name:MANCOSCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/18/1981Test Method:FLOWING
Hours Tested:21Gas Type:
Gas Disposal:VENTED
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 112
CALC_BBLS_H2O 5.7
CALC_BBLS_OIL 128
CALC_MCF_GAS 625
MCF_GAS 546
TUBING_PRESS 954
Perforation Data:
Interval Top:12900 ft.# Of Holes:192
Interval Bottom:16656 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/19/2014
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
