 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-081-06179		Well Classification: GW Status: SI - 8/1/2019
Well Name/No:BIGHOLE-FED LAND BANK #14-1 (OWP)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:WOLVERINE RESOURCES LLC - 10677
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:36214
Facility Status:SIStatus Date8/1/2019
FacilityID:222819LocationID:312912
County:MOFFAT #081Location:NWSW 14 10N94W 6
Field:BIG HOLE - #6450Elevation:6702 ft.
Basin:SAND WASH BASIN
Planned Location:1980FSL  660 FWLLat/Long: 40.824522 / -107.923024Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.824650 / -107.922790Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 8/1/2019             Measured TD: 7950 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 8/1/2019
Wellbore Permit
Permit #:720660 Expiration Date:12/15/1972
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: LWIS , Formation: LEWIS , Order: 290-2 , Unit Acreage: 320, Drill Unit: W/2
Wellbore Completed
Completion Date:12/20/2002
Spud Date:8/16/1972Spud Date Is:ACTUAL
Measured TD:7950 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:DIL,GAMMA SONIC,GAMMA DEN.,CNL, BOND

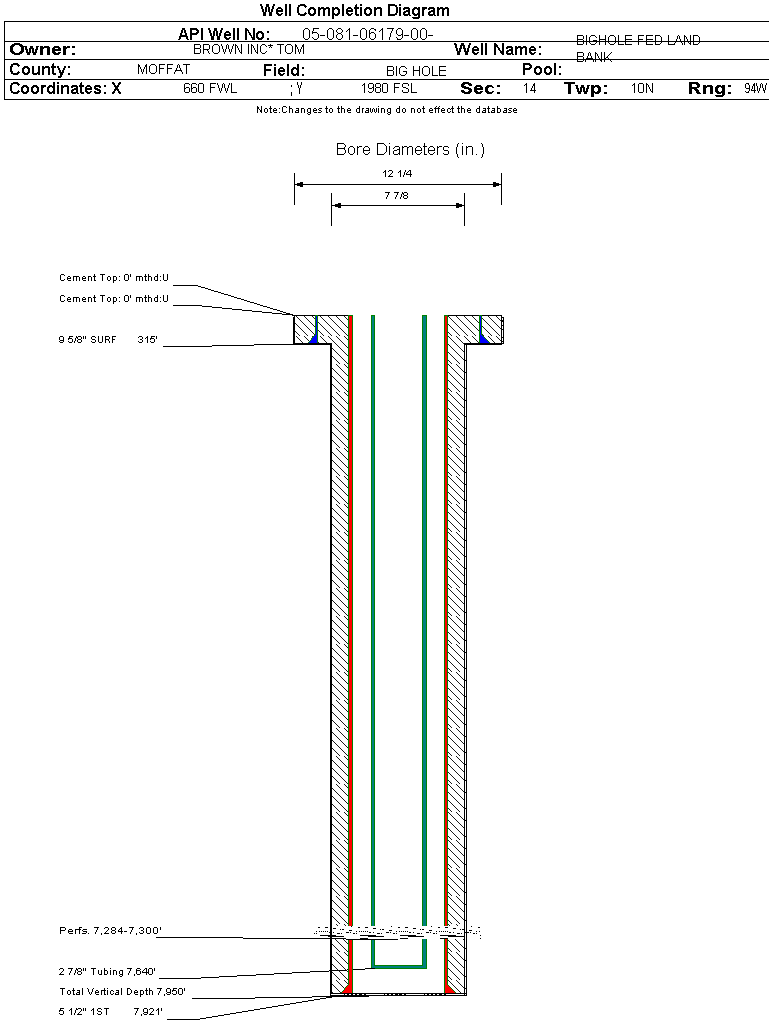

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 315 ft., Weight: 32 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 315 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 7921 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 120, Top: 7000 ft., Bottom: 7921 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.NN
FORT UNION5102 ft.NN
LANCE6245 ft.NN
FOX HILLS7080 ft.NN
LEWIS SHALE7198 ft.NN
LEWIS7198 ft.

Formation LWIS                     Formation Classification:  GW                     Status:  SI - 8/1/2019                  Interval Top: 7284 ft.    Interval Bottom: 7300 ft.

 Completed Information for Formation LEWIS
1st Production Date:12/20/2002Choke Size:
Formation Name:LEWISCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:12/20/2002
Treatment Summary:UPPER LEWIS FRAC W/49,100 GAL 30Q N2 & 195,000# 20/40 SAND,ISIP-2100#;7669-7810' FRAC W/11,000 GAL HCL W/400 SCF NITROGEN/BBL W/6 BALL SEALERS.
Tubing Size:2.875 in.Tubing Setting Depth:7640 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/20/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:
Test TypeMeasure
BBLS_H2O 10
CASING_PRESS 400
MCF_GAS 175
TUBING_PRESS 300
Perforation Data:
Interval Top:7284 ft.# Of Holes:48
Interval Bottom:7300 ft.Hole Size:
Primary Well Designation:
Reported Plugged      i
            All DesignationsDate
Reported PluggedY01/29/2026
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
07/31/2019
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
