Wellbore #00 Wellbore Classification: OW Status: AB - 10/8/2024 Measured TD: 6714 ft. Vertical TD: 6714 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW AB - 10/8/2024 | | Wellbore Permit | | | Permit #: | | Expiration Date: | 5/31/2019 | | Proposed Depth/Form: | 6797 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | Maudlin Gulch | Unit Number: | COC 47649X | | Formation And Spacing: | Code: DKTA , Formation: DAKOTA , Order: 0 , Unit Acreage: 0, Drill Unit: | | Formation And Spacing: | Code: MRSN , Formation: MORRISON , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: SURF, Hole Size: 15 in., Size: 10.75 in., Top: 0 ft., Depth: 798 ft., Weight: 40.5 , Citings Type: PLANNED | | Cement: | Sacks: 365, Top: 0 ft., Bottom: 798 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6163 ft., Weight: 20 , Citings Type: PLANNED | | Cement: | Sacks: 75, Top: 5100 ft., Bottom: 6163 ft. | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: 7 in., Top: , Depth: 800 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 220, Top: 0 ft., Bottom: 800 ft. | | Casing: | String Type: 2ND, Hole Size: 6.125 in., Size: 5.5 in., Top: 0 ft., Depth: 6100 ft., Weight: 15.5 , Citings Type: PLANNED | | Cement: | Sacks: 0, Top: 4000 ft., Bottom: 6100 ft. | | Casing: | String Type: TAPER, Hole Size: 6.125 in., Size: 5 in., Top: 6100 ft., Depth: 6797 ft., Weight: 15 , Citings Type: PLANNED | | Cement: | Sacks: 125, Top: 6100 ft., Bottom: 6797 ft. |
| | |

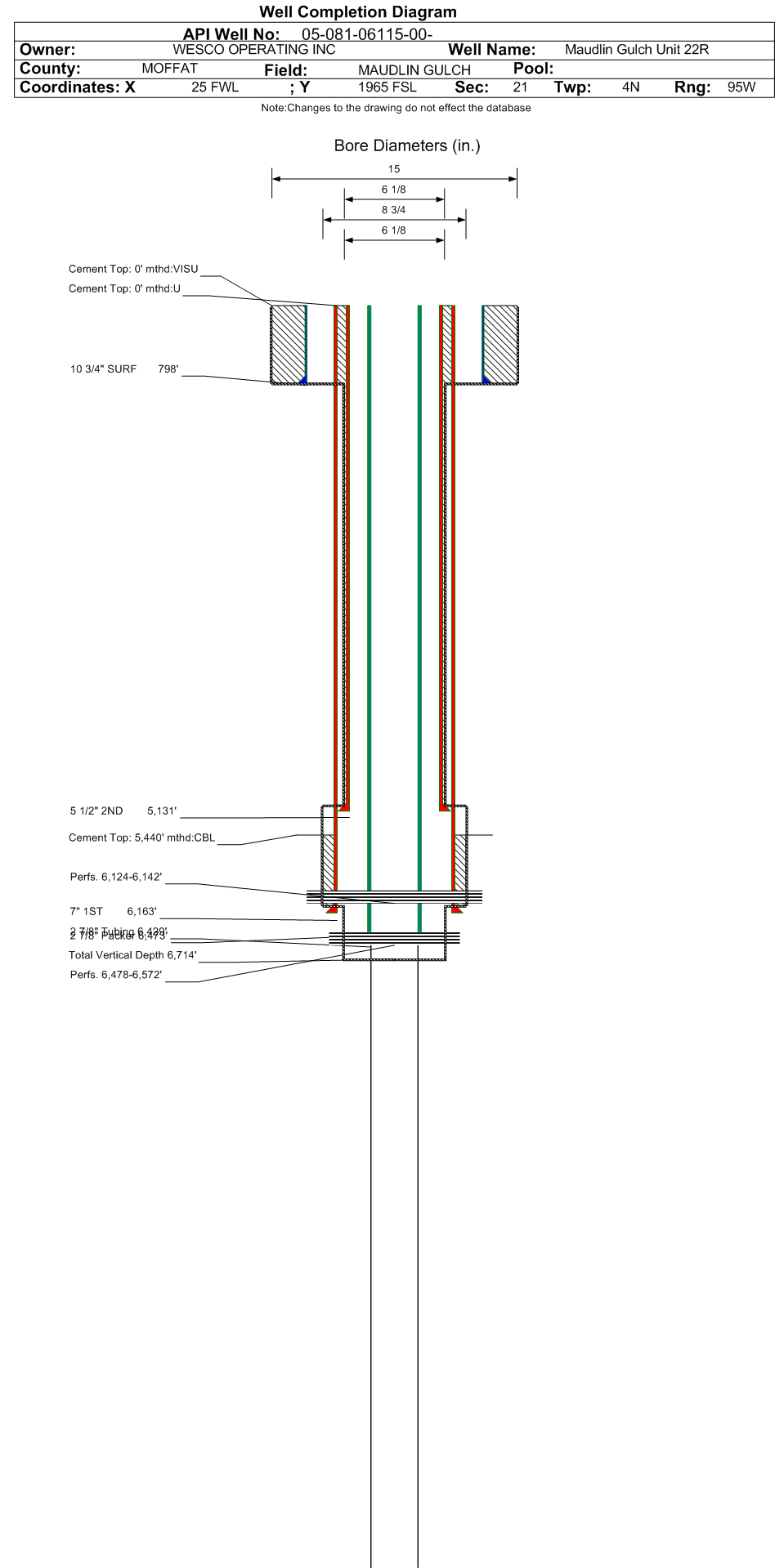

| Wellbore Completed | | Completion Date: | 5/9/2019 | | Spud Date: | 7/27/1970 | Spud Date Is: | ACTUAL | | Measured TD: | 6714 ft. | Measured PB depth: | 6666 ft. | | True Vertical TD: | 6714 ft. | True Vertical PB depth: | 6666 ft. | | Log Types: | CBL, IND, DEN, NEU | | Casing: | String Type: SURF, Hole Size: , Size: 10.75 in., Top: 0 ft., Depth: 798 ft., Weight: 40.5 , Citings Type: ACTUAL | | Cement: | Sacks: 365, Top: 0 ft., Bottom: 798 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: , Top: 0 ft., Depth: 6163 ft., Weight: 23 , Citings Type: ACTUAL | | Cement: | Sacks: 125, Top: 5400 ft., Bottom: 6163 ft., Determination Method: CBL | | Casing: | String Type: 2ND, Hole Size: 6.125 in., Size: 5.5 in., Top: 0 ft., Depth: 5131 ft., Weight: 15.5 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Casing: | String Type: TAPER, Hole Size: 6.125 in., Size: , Top: 5131 ft., Depth: 6714 ft., Weight: 18 , Citings Type: ACTUAL | | Cement: | Sacks: 175, Top: 5310 ft., Bottom: 6714 ft., Determination Method: CBL | | Additional Cement: | String Type: 1ST , Top: 734 ft., Depth: 800 ft., Bottom: 800 ft., Sacks: 98, Method: SQUEEZE | | Formation | Interval Top | Log Bottom | Cored | DSTs | | MORAPOS | 1255 ft. | | | | | MANCOS | 1429 ft. | | N | N | | FRONTIER | 5763 ft. | | N | N | | MOWRY | 6043 ft. | | N | N | | MUDDY | 6120 ft. | | N | Y | | DAKOTA | 6234 ft. | | N | N | | MORRISON | 6279 ft. | | N | N | | ENTRADA | 6692 ft. | | N | N |
Formation MRSN Formation Classification: OW Status: AB - 10/8/2024 Interval Top: 6478 ft. Interval Bottom: 6572 ft.| Completed Information for Formation MORRISON | | 1st Production Date: | 8/30/2019 | Choke Size: | 2.000 in. | | Formation Name: | MORRISON | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | ACID JOB | | Treatment Date: | 7/11/2019 | Treatment End Date: | 7/17/2019 | | Treatment Summary: | Acidized the Morrison in 2 stages both stages consisted of 35 BBLS of acid, and 48 BBLS of SoLO Fluid. The maximum treating pressure was 1382 and maximum rate was 5 BPM. | | Total fluid used in treatment (bbls): | 191 | Max pressure during treatment (psi): | 1382 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.40 | | Type Of gas: | | Number Of staged intervals: | 2 | | Total acid used in treatment (bbls): | 70 | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 191 | | Fresh water used in treatment (bbls): | 121 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 0 | Green completions techniques utilized: | No | | Reason green techniques Not utilized: PRESSURE |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 6429 ft. | | Tubing Packer Depth: | 6493 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/18/2019 | Test Method: | | | Hours Tested: | 9 | Gas Type: | WET | | Gas Disposal: | VENTED | |
| Test Type | Measure |
|---|
| BBLS_H2O | 135 | | BBLS_OIL | 34 | | BTU_GAS | 1100 | | CALC_BBLS_H2O | 360 | | CALC_BBLS_OIL | 90 | | CALC_GOR | 100 | | CALC_MCF_GAS | 9 | | GRAVITY_OIL | 32 | | MCF_GAS | 3 |
| | Perforation Data: | | Interval Top: | 6478 ft. | # Of Holes: | 333 | | Interval Bottom: | 6572 ft. | Hole Size: | 0.4 in. |
|
Formation DKTA Formation Classification: OW Status: AB - 7/10/1997 Interval Top: 6124 ft. Interval Bottom: 6142 ft.| Completed Information for Formation DAKOTA | | 1st Production Date: | 8/28/1970 | Choke Size: | 0.000 in. | | Formation Name: | DAKOTA | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/28/1970 | Test Method: | PUMPING | | Hours Tested: | 72 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 1182 | | CALC_BBLS_OIL | 394 | | GRAVITY_OIL | 37.6 |
| | Perforation Data: | | Interval Top: | 6124 ft. | # Of Holes: | | | Interval Bottom: | 6142 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | Y | 10/08/2024 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
