COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-081-06076		Well Classification: GW Status: PR - 7/1/2022
Well Name/No:VAN SCHAICK-GOV'T "B" #3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:HILCORP ENERGY COMPANY - 10133
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:36901
Facility Status:PRStatus Date7/1/2022
FacilityID:222716LocationID:312879
County:MOFFAT #081Location:SWSW 24 12N101W 6
Field:HIAWATHA WEST - #34351Elevation:6868 ft.
Basin:SAND WASH BASIN
Planned Location:883FSL  792 FWLLat/Long: 40.980726 / -108.703300Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.980874 / -108.703299Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/1/2022             Measured TD: 16760 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/1/2022
Wellbore Permit
Permit #:930571 Expiration Date:9/7/1993
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:D-033151-B
Formation And Spacing:Code: LNCE , Formation: LANCE , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:11/15/1969
Measured TD:16760 ft.Measured PB depth:4700 ft.
True Vertical TD:0 ft.True Vertical PB depth:

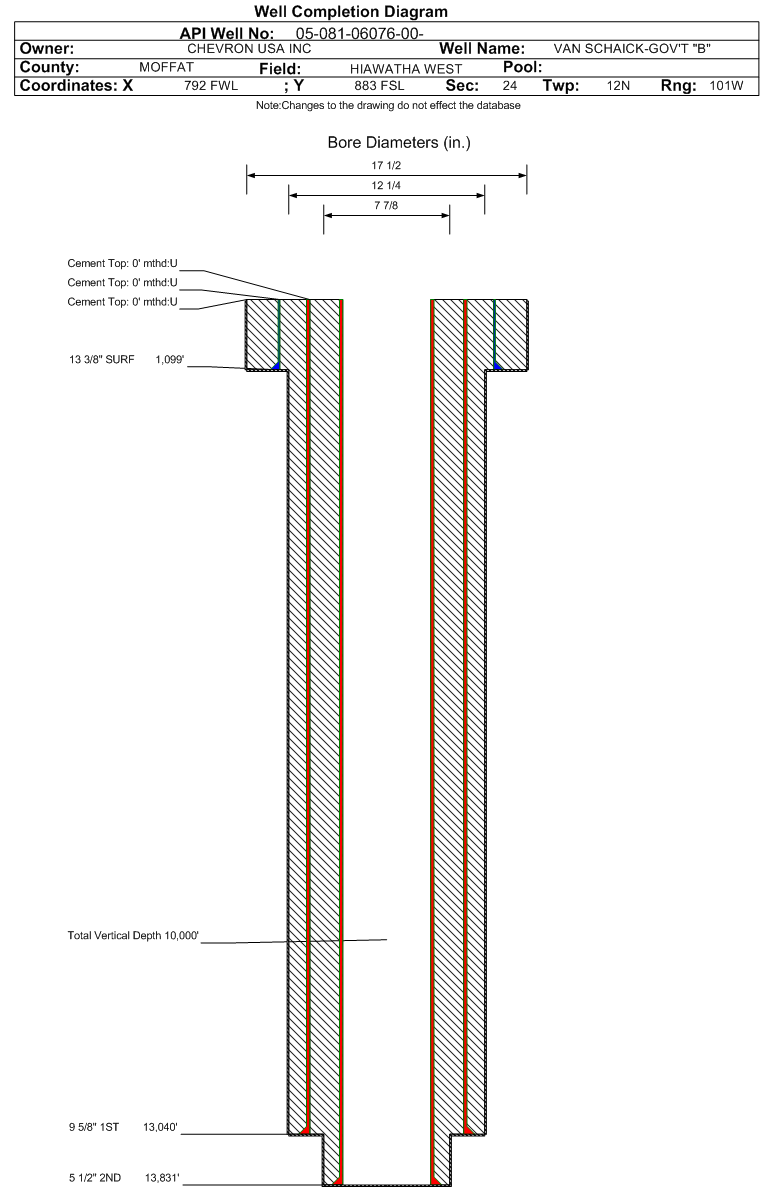

Casing:String Type: SURF, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 1099 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 1200, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 13040 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 2ND, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 13831 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
MESAVERDE5050 ft.
MANCOS7418 ft.
FRONTIER12247 ft.
MOWRY12409 ft.
MUDDY12594 ft.
MORRISON12740 ft.

Formation LNCE                     Formation Classification:  GW                     Status:  CM - 12/5/1969

 Completed Information for Formation LANCE
1st Production Date:7/8/1994Choke Size:1,464.000 in.
Formation Name:LANCECommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation LNCE.
No Perforation Data was found for formation LNCE.

Formation LWIS                     Formation Classification:  GW                     Status:  PR - 7/1/2022

 Completed Information for Formation LEWIS
1st Production Date:N/AChoke Size:
Formation Name:LEWISCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation LWIS.
No Perforation Data was found for formation LWIS.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)41
Total Gas Produced (MCF)14969
GOR365097
GOR DeterminationMCFE
Average BOE per Day7.201
Average MCFE per Day41.749

 Federal Financial Assurance  i Y

 Tribal Well  i No
