COGIS - WELL SCOUT CARD

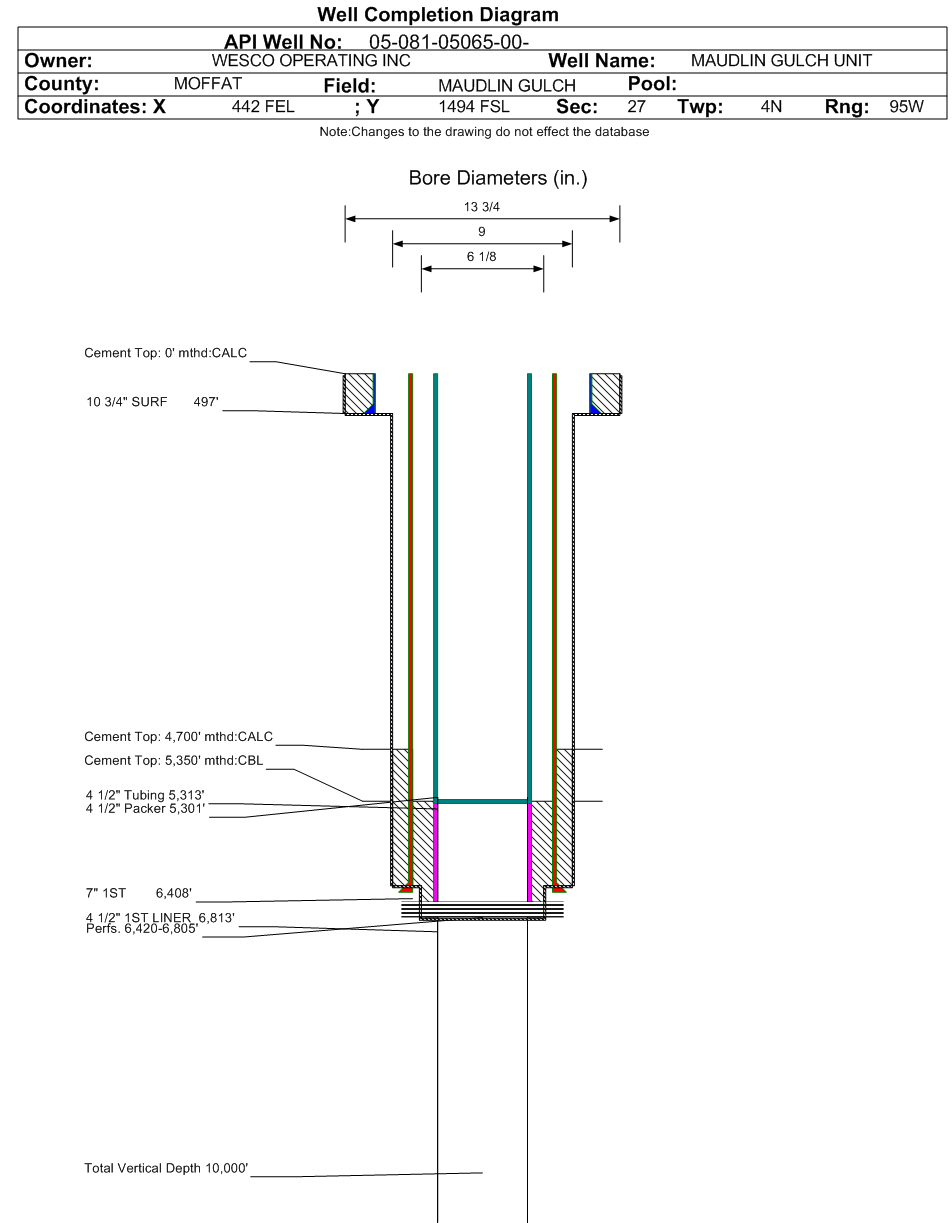

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-081-05065		Well Classification: DSPW Status: PA - 6/24/2025
Well Name/No:MAUDLIN GULCH UNIT #2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:WESCO OPERATING INC - 95520
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date6/24/2025
FacilityID:222158LocationID:332715
County:MOFFAT #081Location:NESE 27 4N95W 6
Field:MAUDLIN GULCH - #52950Elevation:7462 ft.
Basin:PICEANCE BASIN
Planned Location:1494FSL  442 FELLat/Long: 40.283988 / -108.029782Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.284140 / -108.029760Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DSPW             Status: AB - 6/24/2025             Measured TD: 6813 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: DSPW        AB - 6/24/2025
Wellbore Permit
Permit #:100001 Expiration Date:3/29/1984
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:C-052312
Formation And Spacing:Code: SNDC , Formation: SUNDANCE , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:11/17/1984
Measured TD:6813 ft.Measured PB depth:6810 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 13.75 in., Size: 10.75 in., Top: 0 ft., Depth: 497 ft., Weight: 40.5 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: 497 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 9 in., Size: 7 in., Top: 0 ft., Depth: 6408 ft., Weight: 23/26 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 4760 ft., Bottom: 6408 ft., Determination Method: CALC
Casing:String Type: 1ST LINER, Hole Size: 6 in., Size: 4.5 in., Top: 5300 ft., Depth: 6813 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 275, Top: 5300 ft., Bottom: 6813 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FRONTIER5392 ft.
DAKOTA5778 ft.
MORRISON5810 ft.
CURTIS6342 ft.
ENTRADA6388 ft.

Formation SNDC                     Formation Classification:  GW                     Status:  AB - 6/24/2025                 Interval Top: 6420 ft.    Interval Bottom: 6808 ft.

 Completed Information for Formation SUNDANCE
1st Production Date:N/AChoke Size:0.000 in.
Formation Name:SUNDANCECommingled:
Production Method:
Open Hole Completion:
Tubing Size:4.5 in.Tubing Setting Depth:5313 ft.
Tubing Packer Depth:5321 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation SNDC.
Perforation Data:
Interval Top:6420 ft.# Of Holes:
Interval Bottom:6808 ft.Hole Size:

Formation ENRD                     Formation Classification:  DSPW                     Status:  AB - 6/4/1954                  Interval Top: 6391 ft.    Interval Bottom: 6398 ft.

 Completed Information for Formation ENTRADA
1st Production Date:9/2/1948Choke Size:
Formation Name:ENTRADACommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation ENRD.
Perforation Data:
Interval Top:6391 ft.# Of Holes:42
Interval Bottom:6398 ft.Hole Size:

Formation DK-CM                   Formation Classification:  DSPW                   Status:  AB - 7/19/1966                 Interval Top: 5754 ft.    Interval Bottom: 5954 ft.

 Completed Information for Formation DAKOTA-CEDAR MOUNTAIN
1st Production Date:N/AChoke Size:
Formation Name:DAKOTA-CEDAR MOUNTAINCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/19/1966
Treatment Summary:Frac with 9000 gal of oil & 5250# of 20/40 sand.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation DK-CM.
Perforation Data:
Interval Top:5754 ft.# Of Holes:59
Interval Bottom:5954 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/24/2025
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
