Wellbore #00 Wellbore Classification: GW Status: PR - 4/23/2009 Measured TD: 7617 ft. Vertical TD: 7589 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/23/2009 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20083062 | Expiration Date: | 6/12/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 439 FSL 658 FWL | | Bottom Hole Location: | Sec:23 Twp: 8S 92W | Footage: 439 FSL 658 FWL | | Proposed Depth/Form: | 7602 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: MVRD , Formation: MESAVERDE , Order: 529-1 , Unit Acreage: , Drill Unit: |
| | |

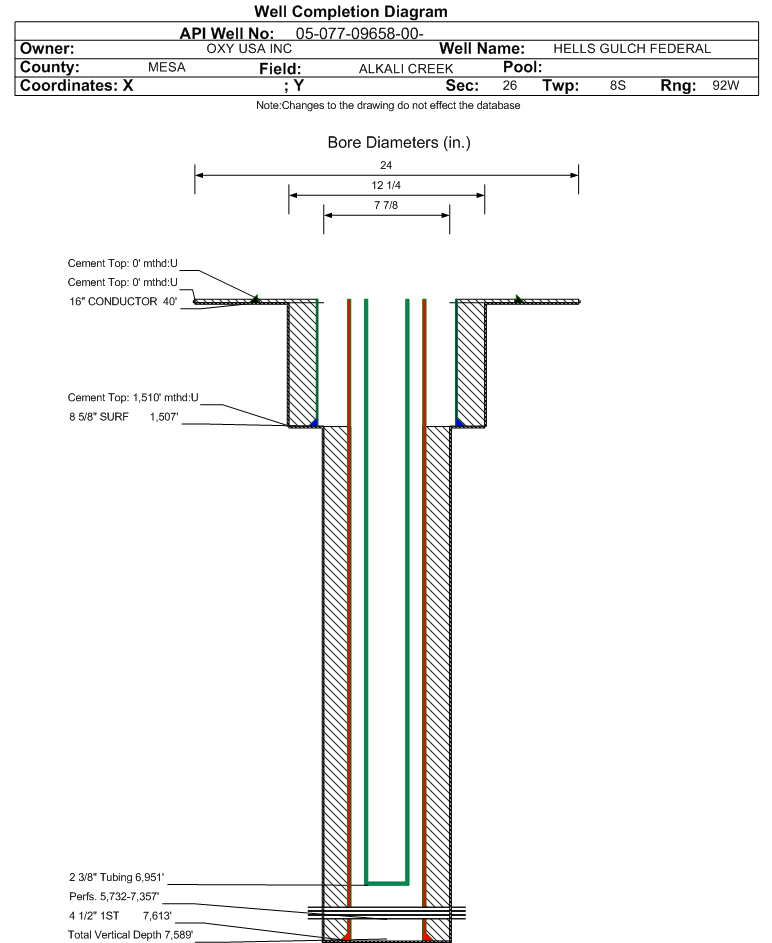

| Wellbore Completed | | Completion Date: | 8/11/2008 | | Spud Date: | 7/28/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 7617 ft. | Measured PB depth: | 7570 ft. | | True Vertical TD: | 7589 ft. | True Vertical PB depth: | 7542 ft. | | Top PZ Location: | Sec:23 Twp: 8S 92W | Footage: 456 FSL 663 FWL | | Bottom Hole Location: | Sec:23 Twp: 8S 92W | Footage: 456 FSL 663 FWL | | Log Types: | HRI W/SP, GR, CALIPER, SPECTRAL DENSITY, DUAL SPACED NEUTRON | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 4, Top: , Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 1507 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 420, Top: , Bottom: 1510 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7613 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1200, Top: 1510 ft., Bottom: 7617 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | CAMEO | 6677 ft. | 7420 ft. | N | N | | ROLLINS | 7420 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 4/23/2009 Interval Top: 5732 ft. Interval Bottom: 7357 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 11/28/2008 | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/17/2008 | | Treatment Summary: | 7 STAGES PUMP 15,028 BBLS WATER 597,000 SKS SAND |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6951 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/30/2008 | Test Method: | FLOWS FROM WELL | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | VENTED | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1055 | | BBLS_OIL | 0 | | BTU_GAS | 1071 | | CALC_BBLS_H2O | 1055 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 1150 | | CASING_PRESS | 1750 | | MCF_GAS | 1150 | | TUBING_PRESS | 675 |
| | Perforation Data: | | Interval Top: | 5732 ft. | # Of Holes: | 159 | | Interval Bottom: | 7357 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 47 |
| Total Gas Produced (MCF) | 16024 |
| GOR | 340936 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.706 |
| Average MCFE per Day | 44.678 |
| Federal Financial Assurance | i | Y |
|
|
