COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-077-09657		Well Classification: GW Status: PR - 3/1/2024
Well Name/No:HELLS GULCH FEDERAL #23-14C
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:LARAMIE ENERGY LLC - 10433
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC66918
Facility Status:PRStatus Date3/1/2024
FacilityID:296466LocationID:334536
County:MESA #077Location:NWNW 26 8S92W 6
Field:ALKALI CREEK - #1950Elevation:7304 ft.
Basin:PICEANCE BASIN
Planned Location:53FNL  578 FWLLat/Long: 39.338472 / -107.641419Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.338472 / -107.641419Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/1/2024             Measured TD: 7728 ft.    Vertical TD: 7523 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/1/2024
Wellbore PermitDIRECTIONAL
Permit #:20083064 Expiration Date:6/12/2009
Proposed Top PZ Location:Sec:23 Twp: 8S 92W Footage: 216 FSL  1990 FWL
Bottom Hole Location:Sec:23 Twp: 8S 92W Footage: 216 FSL  1990 FWL
Proposed Depth/Form:7727 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: MVRD , Formation: MESAVERDE , Order: 529-1 , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:11/7/2008
Spud Date:8/29/2008Spud Date Is:ACTUAL
Measured TD:7728 ft.Measured PB depth:7679 ft.
True Vertical TD:7523 ft.True Vertical PB depth:7463 ft.
Top PZ Location:Sec:23 Twp: 8S 92WFootage: 216 FSL  1990 FWL
Bottom Hole Location:Sec:23 Twp: 8S 92WFootage: 216 FSL  1990 FWL
Log Types:CBL, MUD

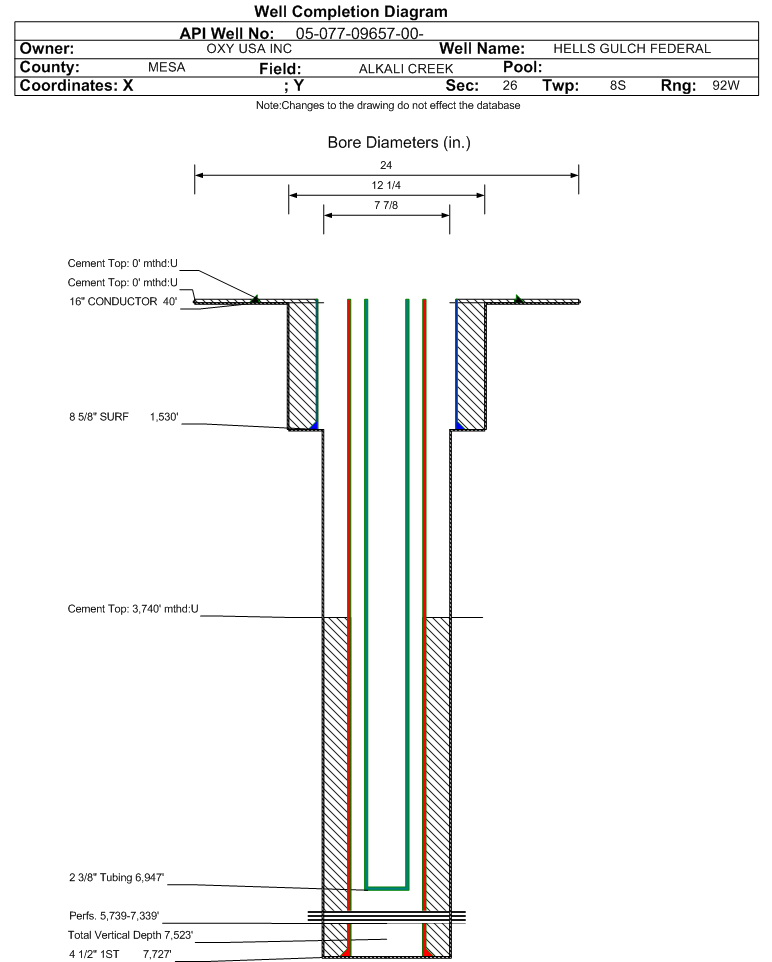

Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 4, Top: , Bottom: 40 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 1530 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 420, Top: , Bottom: 1530 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7727 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1130, Top: 3740 ft., Bottom: 7727 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK5660 ft.NN
CAMEO6783 ft.7535 ft.NN
ROLLINS7535 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 3/1/2024                  Interval Top: 5739 ft.    Interval Bottom: 7339 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:11/28/2008Choke Size:0.375 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/22/2008
Treatment Summary:6 STAGES PUMP 13,811 BBLS WATER, 522,530 # SAND.
Tubing Size:2.375 in.Tubing Setting Depth:6947 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/8/2008Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:VENTED
Test TypeMeasure
BBLS_H2O 1220
BBLS_OIL 0
BTU_GAS 1071
CALC_BBLS_H2O 1220
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 2033
CASING_PRESS 1450
MCF_GAS 2033
TUBING_PRESS 900
Perforation Data:
Interval Top:5739 ft.# Of Holes:147
Interval Bottom:7339 ft.Hole Size:0.34 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
09/2024 - 08/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)4
Total Gas Produced (MCF)1485
GOR371250
GOR DeterminationMCFE
Average BOE per Day0.715
Average MCFE per Day4.135

 Federal Financial Assurance  i Y

 Tribal Well  i No
