Wellbore #00 Wellbore Classification: GW Status: PR - 2/1/2015 Measured TD: 8229 ft. Vertical TD: 7552 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/1/2015 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20071022 | Expiration Date: | 4/4/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2307 FSL 1975 FWL | | Bottom Hole Location: | Sec:23 Twp: 8S 92W | Footage: 2307 FSL 1975 FWL | | Proposed Depth/Form: | 7702 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: MVRD , Formation: MESAVERDE , Order: 529-1 , Unit Acreage: , Drill Unit: |
| | |

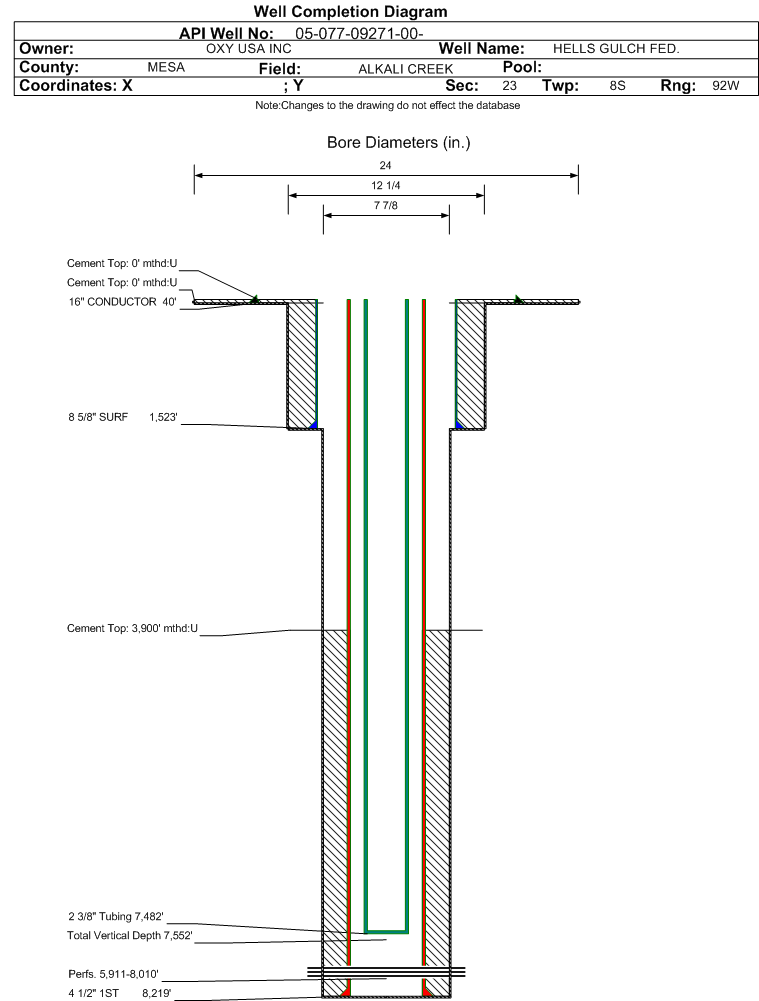

| Wellbore Completed | | Completion Date: | 6/19/2007 | | Spud Date: | 6/1/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 8229 ft. | Measured PB depth: | | | True Vertical TD: | 7552 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:23 Twp: 8S 92W | Footage: 2313 FSL 1988 FWL | | Bottom Hole Location: | Sec:23 Twp: 8S 92W | Footage: 2313 FSL 1988 FWL | | Log Types: | CBL/TEMP/GR | | Log Types: | TRIPLE COMBO, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1523 ft., Weight: 32 , Citings Type: ACTUAL | | Cement: | Sacks: 460, Top: 0 ft., Bottom: 1523 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8219 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1265, Top: 3900 ft., Bottom: 8219 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 5900 ft. | 7330 ft. | N | N | | CAMEO | 7330 ft. | 8040 ft. | N | N | | ROLLINS | 8040 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 2/1/2015 Interval Top: 5911 ft. Interval Bottom: 8010 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/19/2007 | | Treatment Summary: | 8 STAGES USING 675,700 LBS PROPPANT AND 17,929 BBLS H20 |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7482 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/27/2007 | Test Method: | FLOWED FROM WEL | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | FLARED | |
| Test Type | Measure |
|---|
| BBLS_H2O | 20 | | BBLS_OIL | 0 | | BTU_GAS | 1070 | | CALC_BBLS_H2O | 20 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 3065 | | CASING_PRESS | 1850 | | MCF_GAS | 3065 | | TUBING_PRESS | 1125 |
| | Perforation Data: | | Interval Top: | 5911 ft. | # Of Holes: | 165 | | Interval Bottom: | 8010 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 60 |
| Total Gas Produced (MCF) | 19517 |
| GOR | 325283 |
| GOR Determination | MCFE |
| Average BOE per Day | 9.384 |
| Average MCFE per Day | 54.416 |
| Federal Financial Assurance | i | Y |
|
|
