Wellbore #00 Wellbore Classification: GW Status: PR - 7/18/2007 Measured TD: 4425 ft. Vertical TD: 4133 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 7/18/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20070644 | Expiration Date: | 3/14/2008 | | Proposed Top PZ Location: | Sec:7 Twp: 8S 96W | Footage: 2018 FNL 1602 FWL | | Bottom Hole Location: | Sec:7 Twp: 8S 96W | Footage: 2018 FNL 1602 FWL | | Proposed Depth/Form: | 4482 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

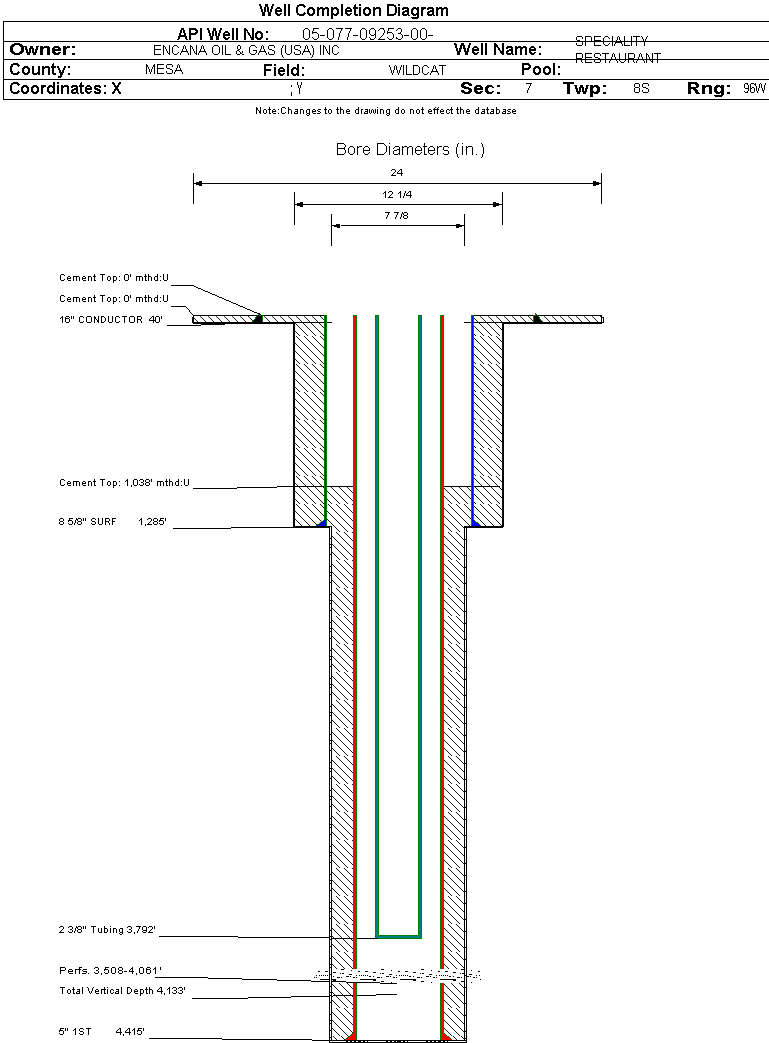

| Wellbore Completed | | Completion Date: | 6/1/2007 | | Spud Date: | 5/25/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 4425 ft. | Measured PB depth: | 4369 ft. | | True Vertical TD: | 4133 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:7 Twp: 8S 96W | Footage: 2018 FNL 1602 FWL | | Bottom Hole Location: | Sec:7 Twp: 8S 96W | Footage: 2018 FNL 1602 FWL | | Log Types: | RST/GR, CBL/GR/TEMP | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 5, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1285 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 860, Top: 0 ft., Bottom: 1285 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5 in., Top: 0 ft., Depth: 4415 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 592, Top: 2066 ft., Bottom: 4425 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 2035 ft. | N | N | | WILLIAMS FORK | 2036 ft. | 4308 ft. | N | N | | ROLLINS | 4309 ft. | 4425 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 7/9/2007 Interval Top: 3508 ft. Interval Bottom: 4061 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 7/18/2007 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/29/2007 | | Treatment Summary: | STAGES 01-02 TREATED WITH A TOTAL OF 5750 BBLS OF SLICKWATER AND 276,086 LBS 20-40 WHITE SAND |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 3792 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/9/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | FLARED | |
| Test Type | Measure |
|---|
| BBLS_H2O | 22 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 22 | | CASING_PRESS | 400 | | TUBING_PRESS | 200 |
| | Perforation Data: | | Interval Top: | 3508 ft. | # Of Holes: | 46 | | Interval Bottom: | 4061 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 14538 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 6.869 |
| Average MCFE per Day | 39.832 |
| Federal Financial Assurance | i | |
|
|
