Wellbore #00 Wellbore Classification: GW Status: SI - 10/1/2025 Measured TD: 6494 ft. Vertical TD: 6063 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 10/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20054390 | Expiration Date: | 12/8/2006 | | Proposed Top PZ Location: | Sec:14 Twp: 8S 96W | Footage: 1950 FSL 660 FWL | | Bottom Hole Location: | Sec:14 Twp: 8S 96W | Footage: 1950 FSL 660 FWL | | Proposed Depth/Form: | 6502 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | ORCHARD UNIT | Unit Number: | COC 66496X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

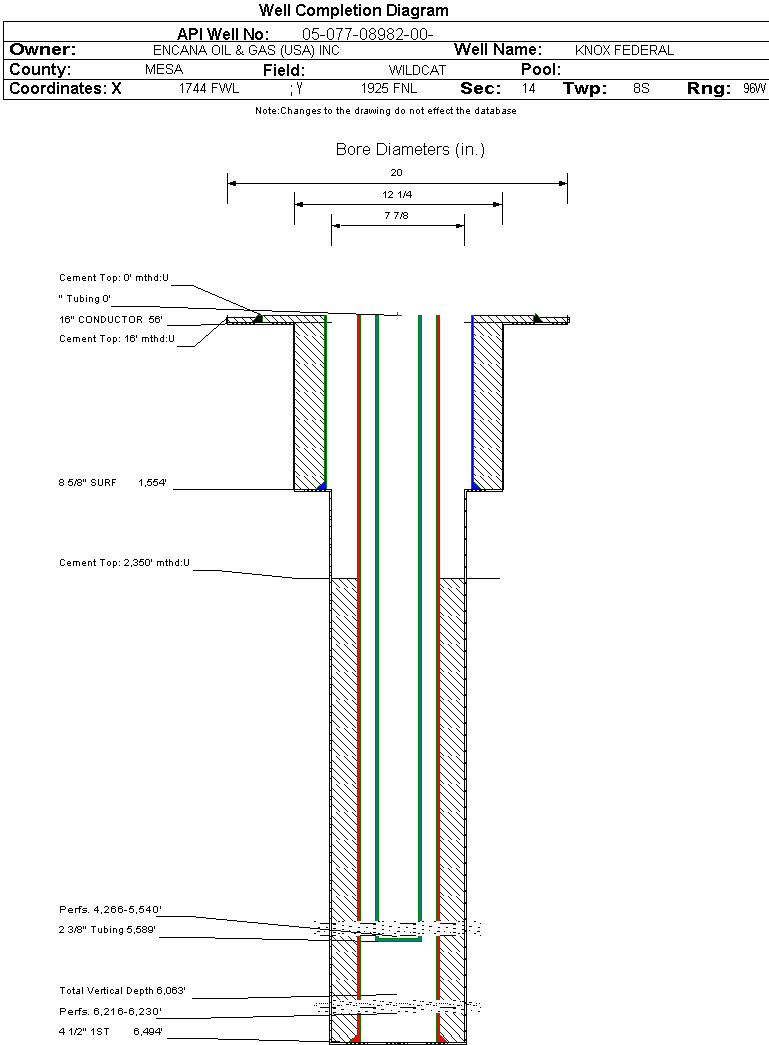

| Wellbore Completed | | Completion Date: | 3/30/2006 | | Spud Date: | 12/22/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 6494 ft. | Measured PB depth: | 6449 ft. | | True Vertical TD: | 6063 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:14 Twp: 8S 96W | Footage: 1999 FSL 659 FWL | | Bottom Hole Location: | Sec:14 Twp: 8S 96W | Footage: 1999 FSL 659 FWL | | Log Types: | PE-TCOMBO-LD/NEUT/AI, CBL/GR/CCL/TEMP | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 56 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 16 ft., Bottom: 56 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1554 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 960, Top: 0 ft., Bottom: 1560 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6494 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 950, Top: 2350 ft., Bottom: 6494 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 3197 ft. | N | N | | WILLIAMS FORK | 3198 ft. | 5664 ft. | N | N | | ROLLINS | 5665 ft. | 5927 ft. | N | N | | COZZETTE | 5928 ft. | 6171 ft. | N | N | | CORCORAN | 6172 ft. | 6494 ft. | N | N |
Formation CRCRN Formation Classification: GW Status: SI - 10/1/2025 Interval Top: 6216 ft. Interval Bottom: 6230 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 5/22/2006 | Choke Size: | 24.000 in. | | Formation Name: | CORCORAN | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/9/2006 | | Treatment Summary: | STAGE 1: 2,092 BBLS SLICKWATER; 72,215 LBS 20/40 SAND |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/5/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 2 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 2 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 126000 | | CALC_MCF_GAS | 252 | | CASING_PRESS | 775 | | MCF_GAS | 252 | | TUBING_PRESS | 325 |
| | Perforation Data: | | Interval Top: | 6216 ft. | # Of Holes: | 28 | | Interval Bottom: | 6230 ft. | Hole Size: | 0.34 in. |
|
Formation WMFK Formation Classification: GW Status: SI - 10/1/2025 Interval Top: 4266 ft. Interval Bottom: 5540 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 5/22/2006 | Choke Size: | 24.000 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/10/2006 | | Treatment Summary: | STAGES 2 THROUGH 5: 12,086 BBLS SLICKWATER; 413,704 LBS 20/40 SAND |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5589 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/5/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 8 | | BBLS_OIL | 1 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 8 | | CALC_BBLS_OIL | 1 | | CALC_GOR | 126000 | | CALC_MCF_GAS | 1008 | | CASING_PRESS | 775 | | MCF_GAS | 1008 | | TUBING_PRESS | 325 |
| | Perforation Data: | | Interval Top: | 4266 ft. | # Of Holes: | 78 | | Interval Bottom: | 5540 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
12/2024 - 11/2025 |
| Total Oil Produced (Barrels) | 3 |
| Total Gas Produced (MCF) | 57 |
| GOR | 19000 |
| GOR Determination | MCFE |
| Average BOE per Day | 0.036 |
| Average MCFE per Day | 0.206 |
| Federal Financial Assurance | i | Y |
|
|
