COGIS - WELL SCOUT CARD

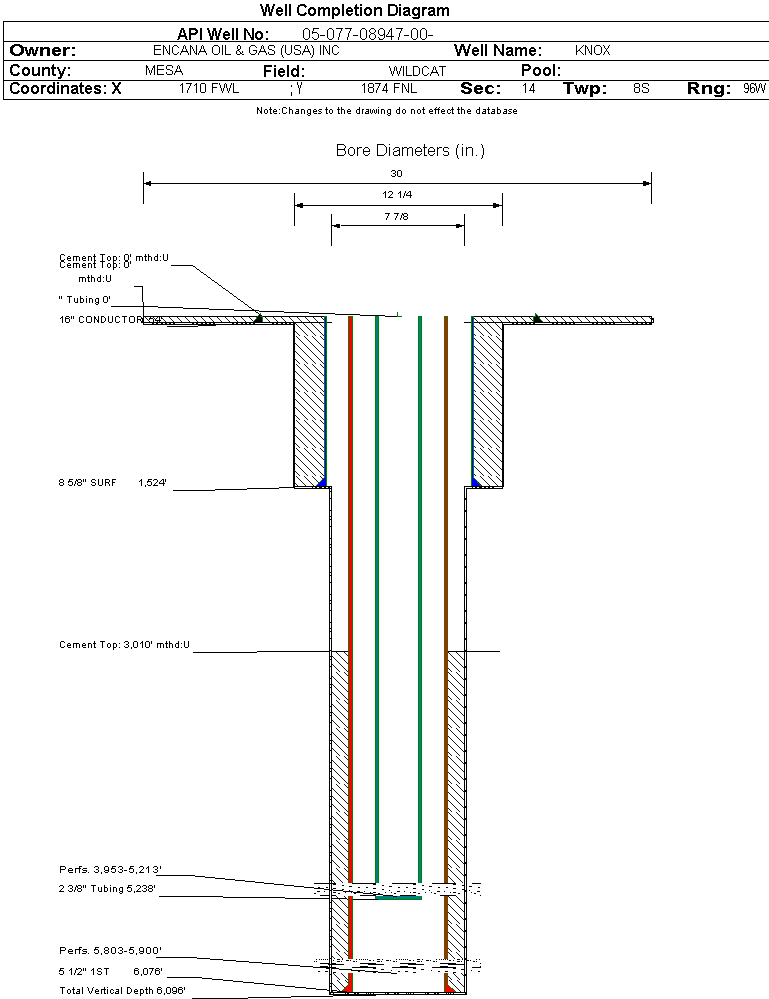

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-077-08947		Well Classification: GW Status: SI - 5/1/2025
Well Name/No:KNOX #14-6 (F14OU)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date5/1/2025
FacilityID:279893LocationID:334083
County:MESA #077Location:SENW 14 8S96W 6
Field:GRAND VALLEY - #31290Elevation:6013 ft.
Basin:PICEANCE BASIN
Planned Location:1874FNL  1710 FWLLat/Long: 39.352150 / -108.079814Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.352190 / -108.079780Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 5/1/2025             Measured TD: 6099 ft.    Vertical TD: 6096 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 5/1/2025
Wellbore Permit
Permit #:20052899 Expiration Date:9/8/2006
Proposed Depth/Form:6099 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:ORCHARD UNIT Unit Number:COC66496X
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:12/17/2005
Spud Date:11/21/2005Spud Date Is:ACTUAL
Measured TD:6099 ft.Measured PB depth:6038 ft.
True Vertical TD:6096 ft.True Vertical PB depth:
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:PLEX-AI/GR (2), CBL/GR/CCL/TEMP
Casing:String Type: CONDUCTOR, Hole Size: 30 in., Size: 16 in., Top: 0 ft., Depth: 54 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 125, Top: 0 ft., Bottom: 54 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1524 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1060, Top: 0 ft., Bottom: 1524 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6076 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 970, Top: 3010 ft., Bottom: 6076 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.2916 ft.NN
WILLIAMS FORK2917 ft.5288 ft.NN
ROLLINS5289 ft.5556 ft.NN
COZZETTE5557 ft.5793 ft.NN
CORCORAN5794 ft.6099 ft.NN

Formation CRCRN                   Formation Classification:  GW                   Status:  SI - 5/1/2025                  Interval Top: 5803 ft.    Interval Bottom: 5900 ft.

 Completed Information for Formation CORCORAN
1st Production Date:5/22/2006Choke Size:24.000 in.
Formation Name:CORCORANCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/12/2006
Treatment Summary:STAGE 1: 3,492 BBLS SLICKWATER; 103,075 LBS 20/40 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/5/2006Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 2
BTU_GAS 1170
CALC_BBLS_H2O 2
CALC_GOR 717000
CALC_MCF_GAS 143
CASING_PRESS 1150
MCF_GAS 143
TUBING_PRESS 825
Perforation Data:
Interval Top:5803 ft.# Of Holes:32
Interval Bottom:5900 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  SI - 5/1/2025                  Interval Top: 3953 ft.    Interval Bottom: 5213 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:5/22/2006Choke Size:24.000 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/13/2006
Treatment Summary:STAGES 2 THROUGH 4: 12,657 BBLS SLICKWATER; 430,350 LBS 20/40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:5238 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/5/2006Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 6
BBLS_OIL 1
BTU_GAS 1170
CALC_BBLS_H2O 6
CALC_BBLS_OIL 1
CALC_GOR 717000
CALC_MCF_GAS 574
CASING_PRESS 1150
MCF_GAS 574
TUBING_PRESS 825
Perforation Data:
Interval Top:3953 ft.# Of Holes:68
Interval Bottom:5213 ft.Hole Size:0.34 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)15
GOR
GOR DeterminationMCFE
Average BOE per Day0.009
Average MCFE per Day0.043

 Federal Financial Assurance  i Y

 Tribal Well  i No
