COGIS - WELL SCOUT CARD

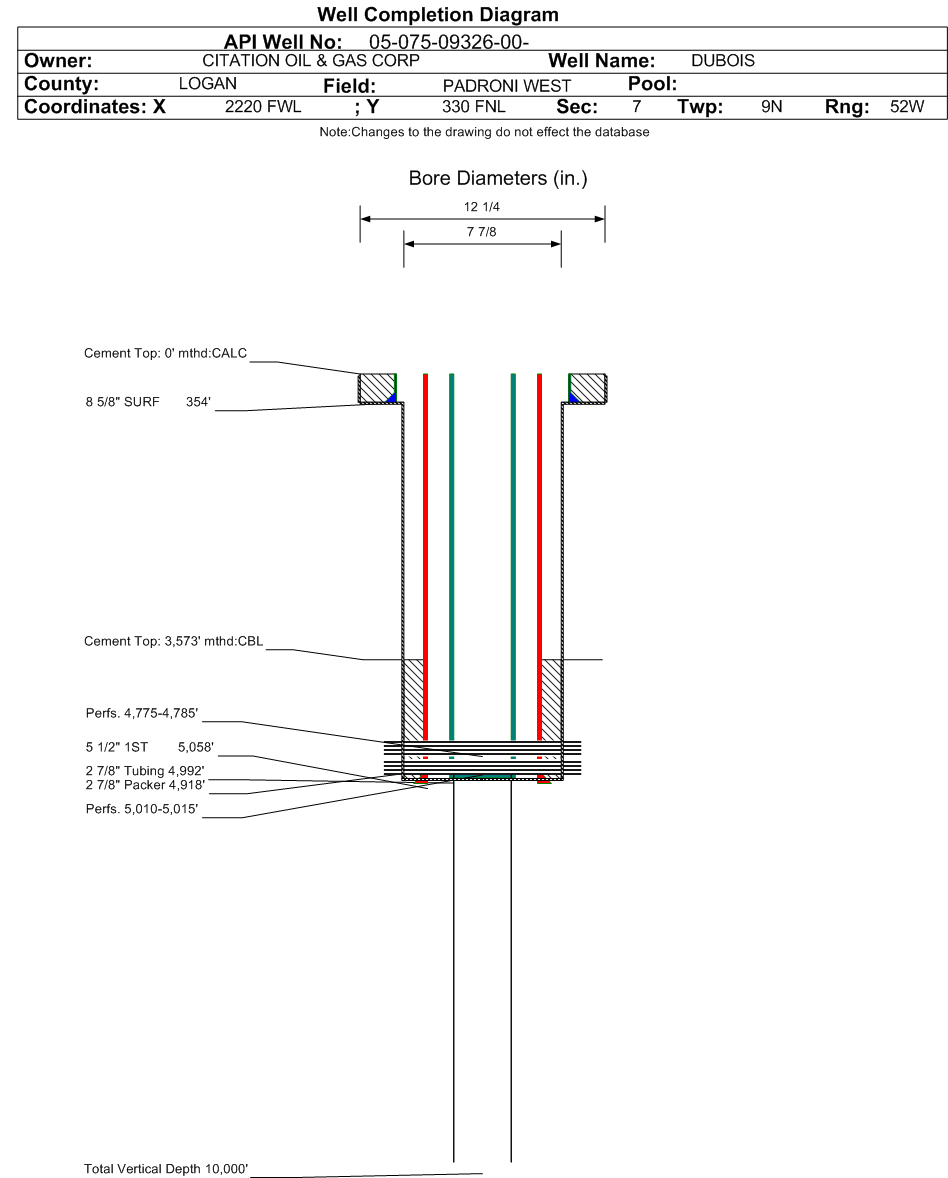

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-075-09326		Well Classification: OW Status: SI - 2/1/2019
Well Name/No:DUBOIS #5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CITATION OIL & GAS CORP - 17180
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date2/1/2019
FacilityID:257040LocationID:312315
County:LOGAN #075Location:NENW 7 9N52W 6
Field:PADRONI WEST - #67000Elevation:4036 ft.
Planned Location:330FNL  2220 FWLLat/Long: 40.774047 / -103.221266Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.774092 / -103.221475Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SI - 2/1/2019             Measured TD: 5074 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 2/1/2019
Wellbore Permit
Permit #:20000330 Expiration Date:8/14/2001
Proposed Depth/Form:5015 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: OSND , Formation: O SAND , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:4/26/2000
Spud Date:4/21/2000Spud Date Is:ACTUAL
Measured TD:5074 ft.Measured PB depth:5042 ft.
True Vertical TD:True Vertical PB depth:
Log Types:INDUCTION-GR,-SP,-CALIPER,NEUTRON-DENSITY MICROLOG
Log Types:INDUCTION, GR-SP-CALIPER, NEUTRON-DENSITY, MICROLOG CBL-GR-CCL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 354 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 260, Top: 0 ft., Bottom: 354 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 5058 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 3574 ft., Bottom: 5058 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA3975 ft.NN
D SAND4595 ft.NN
J SAND4735 ft.NN
O SAND4990 ft.NN

Formation OSND                     Formation Classification:  GW                     Status:  SI - 2/1/2019                  Interval Top: 5010 ft.    Interval Bottom: 5015 ft.

 Completed Information for Formation O SAND
1st Production Date:10/2/2000Choke Size:
Formation Name:O SANDCommingled:No
Production Method:ROD PUMP
Open Hole Completion:No
Formation Treatment
Treatment Date:4/26/2000
Treatment Summary:NATURAL
Tubing Size:2.875 in.Tubing Setting Depth:4992 ft.
Tubing Packer Depth:4938 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/2/2000Test Method:DOWN HOLE PUMP
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 320
BBLS_OIL 27
CALC_BBLS_H2O 320
CALC_BBLS_OIL 27
GRAVITY_OIL 170
Perforation Data:
Interval Top:5010 ft.# Of Holes:20
Interval Bottom:5015 ft.Hole Size:

Formation J-2                       Formation Classification:  GW                       Status:  AB - 9/9/2000                  Interval Top: 4775 ft.    Interval Bottom: 4785 ft.

 Completed Information for Formation J-2 SAND
1st Production Date:N/AChoke Size:
Formation Name:J-2 SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/26/2000
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation J-2.
Perforation Data:
Interval Top:4775 ft.# Of Holes:
Interval Bottom:4785 ft.Hole Size:
Primary Well Designation:
Reported Plugged      i
            All DesignationsDate
Reported PluggedY01/20/2025
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
01/31/2019
Low ProducingYProduction Period
05/2024 - 04/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
