Wellbore #00 Wellbore Classification: OW Status: PR - 12/12/2016 Measured TD: 8365 ft. Vertical TD: 8354 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 12/12/2016 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 4/19/2016 | | Proposed Top PZ Location: | Sec:14 Twp: 6S 54W | Footage: 1837 FNL 890 FWL | | Bottom Hole Location: | Sec:14 Twp: 6S 54W | Footage: 1837 FNL 890 FWL | | Proposed Depth/Form: | 9000 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ATOK , Formation: ATOKA , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: CHRK , Formation: CHEROKEE , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: LGKC , Formation: LANSING-KANSAS CITY , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: MRTN , Formation: MARMATON , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: MS-SP , Formation: MISSISSIPPIAN-SPERGEN , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WFCMP , Formation: WOLFCAMP , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 350 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 122, Top: 0 ft., Bottom: 350 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 9000 ft., Weight: 17 , Citings Type: PLANNED | | Cement: | Sacks: 1109, Top: 6000 ft., Bottom: 9000 ft. |
| | |

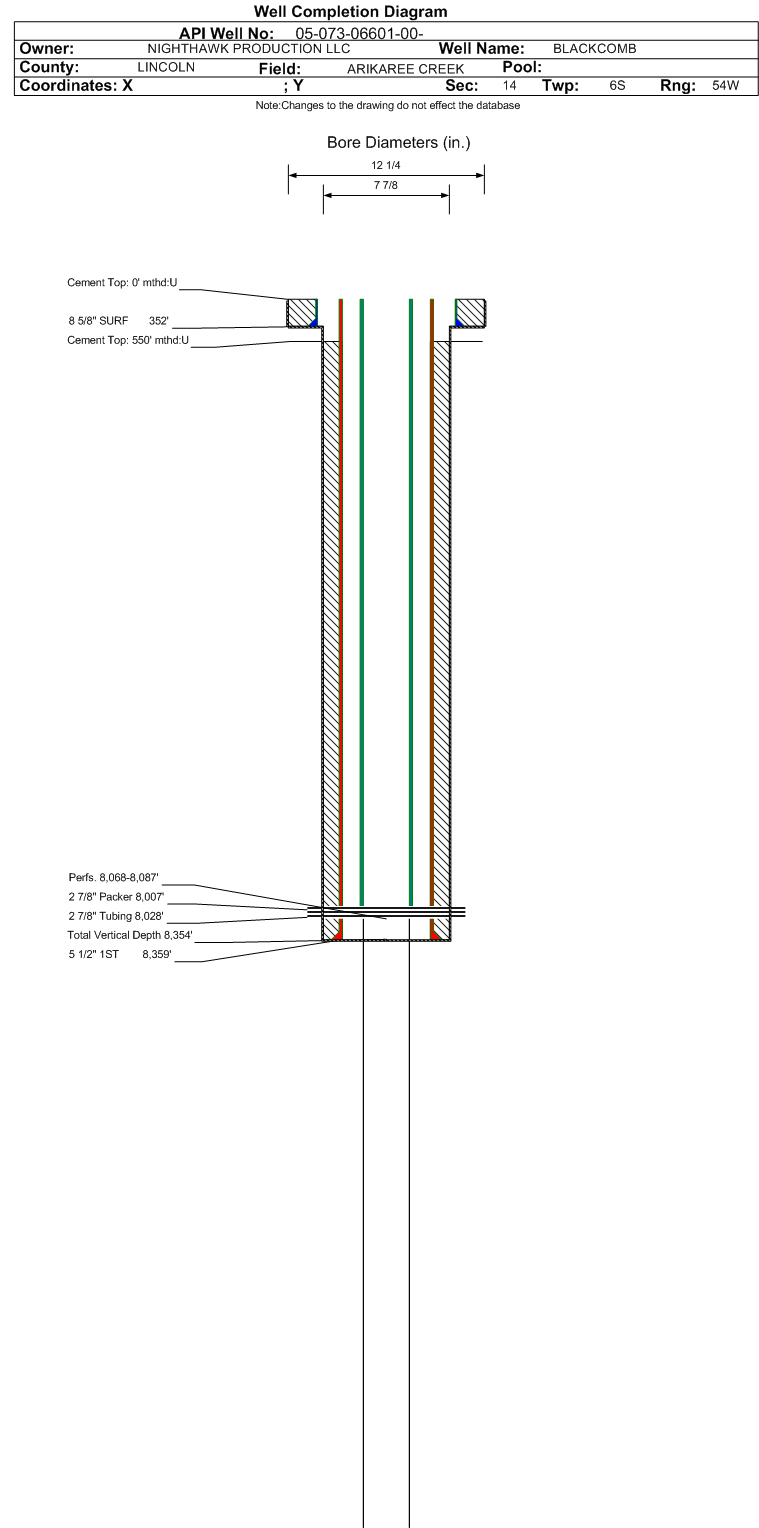

| Wellbore Completed | | Completion Date: | 9/13/2014 | | Spud Date: | 8/21/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 8365 ft. | Measured PB depth: | | | True Vertical TD: | 8354 ft. | True Vertical PB depth: | 8354 ft. | | Top PZ Location: | Sec:14 Twp: 6S 54W | Footage: 1837 FNL 890 FWL | | Bottom Hole Location: | Sec:14 Twp: 6S 54W | Footage: 1837 FNL 890 FWL | | Log Types: | Triple Combo, CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 352 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 175, Top: 0 ft., Bottom: 358 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8359 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 1164, Top: 550 ft., Bottom: 8365 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WOLFCAMP | 6168 ft. | | | | | LANSING-KANSAS CITY | 6856 ft. | | | | | MARMATON | 7187 ft. | | | | | CHEROKEE | 7381 ft. | | | | | ATOKA | 7558 ft. | | | | | SPERGEN | 8024 ft. | | | |
Formation SPGN Formation Classification: OW Status: PR - 12/12/2016 Interval Top: 8068 ft. Interval Bottom: 8087 ft.| Completed Information for Formation SPERGEN | | 1st Production Date: | 10/5/2014 | Choke Size: | | | Formation Name: | SPERGEN | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | ACID JOB | | Treatment Date: | 11/21/2016 | Treatment End Date: | 11/29/2016 | | Treatment Summary: | Pumped 6,000 gals 2% KCL with acetone, ethanol, @% KCL, anit sludge, Iron control, scale inhibitor & biocide.
Also dropped 70 bio balls.
Displaced with 30 bbls of 2% KCL.
| | Total fluid used in treatment (bbls): | 217 | Max pressure during treatment (psi): | 2460 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | 44 | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 213 | | Fresh water used in treatment (bbls): | 173 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: PIPELINE | | Formation Treatment | | Treatment Type: | | | Treatment Date: | 9/22/2014 | Treatment End Date: | 9/22/2014 | | Treatment Summary: | Perforated only | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 8028 ft. | | Tubing Packer Depth: | 8027 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/10/2016 | Test Method: | Pump | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | FLARED | |
| Test Type | Measure |
|---|
| BBLS_H2O | 149 | | BBLS_OIL | 106 | | BTU_GAS | 758 | | CALC_BBLS_H2O | 149 | | CALC_BBLS_OIL | 106 | | CALC_GOR | 198 | | CALC_MCF_GAS | 21 | | CASING_PRESS | 52 | | GRAVITY_OIL | 36 | | MCF_GAS | 21 | | TUBING_PRESS | 2200 |
| | Perforation Data: | | Interval Top: | 8068 ft. | # Of Holes: | 76 | | Interval Bottom: | 8087 ft. | Hole Size: | 0.52 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 15492 |
| Total Gas Produced (MCF) | 1747 |
| GOR | 112 |
| GOR Determination | BOE |
| Average BOE per Day | 43.273 |
| Average MCFE per Day | 250.987 |
| Federal Financial Assurance | i | |
|
|
