Wellbore #00 Wellbore Classification: OW Status: PR - 10/1/2025 Measured TD: 8290 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 10/1/2025 | | Wellbore Permit | | | Permit #: | | Expiration Date: | 10/22/2015 | | Proposed Depth/Form: | 8700 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ABCK , Formation: ARBUCKLE , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: ATOK , Formation: ATOKA , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: CHRK , Formation: CHEROKEE , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: KDRK , Formation: KINDERHOOK , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: LGKC , Formation: LANSING-KANSAS CITY , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: MRTN , Formation: MARMATON , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: MS-SP , Formation: MISSISSIPPIAN-SPERGEN , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: STLS , Formation: ST LOUIS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WFCMP , Formation: WOLFCAMP , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WRSW , Formation: WARSAW , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 300 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 69, Top: 0 ft., Bottom: 300 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8700 ft., Weight: 17 , Citings Type: PLANNED | | Cement: | Sacks: 1039, Top: 0 ft., Bottom: 8700 ft. |
| | |

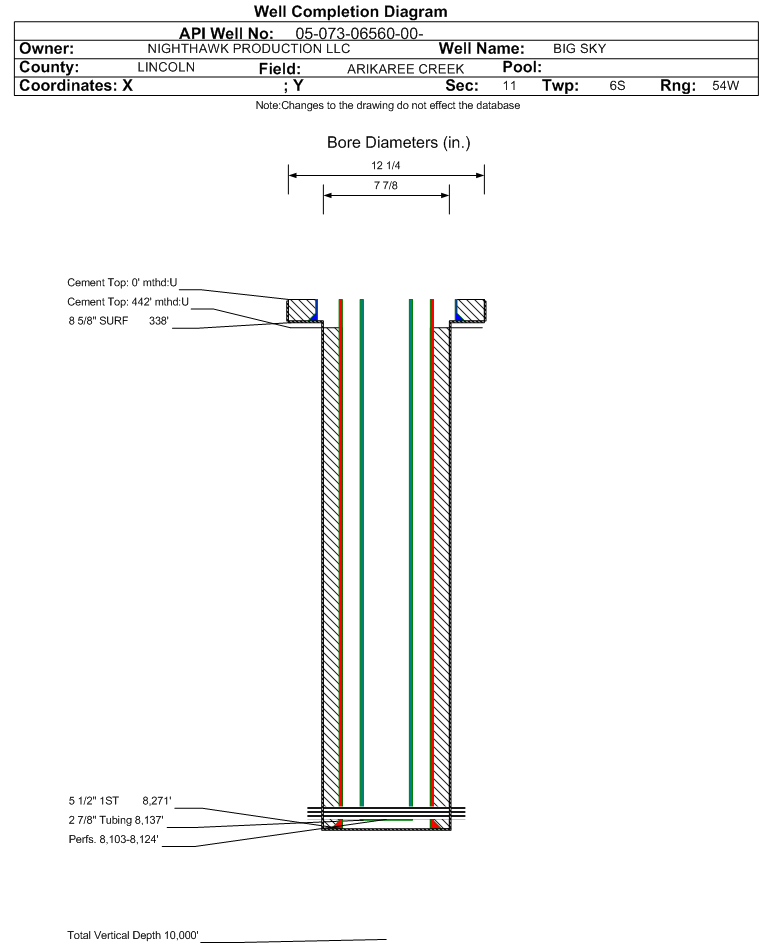

| Wellbore Completed | | Completion Date: | 1/25/2014 | | Spud Date: | 12/17/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 8290 ft. | Measured PB depth: | 8154 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 338 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 130, Top: 0 ft., Bottom: 338 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8271 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 1252, Top: 442 ft., Bottom: 8271 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | NIOBRARA | 3651 ft. | | | | | DAKOTA | 4599 ft. | | | | | STONE CORRAL | 5979 ft. | | | | | WOLFCAMP | 6190 ft. | | | | | LANSING-KANSAS CITY | 6894 ft. | | | | | MARMATON | 7230 ft. | | | | | CHEROKEE | 7412 ft. | | | | | ATOKA | 7619 ft. | | | | | MORROW | 7853 ft. | | | | | SPERGEN | 8063 ft. | | | | | GRANITE | 8288 ft. | | | |
Formation SPGN Formation Classification: OW Status: PR - 10/1/2025 Interval Top: 8103 ft. Interval Bottom: 8124 ft.| Completed Information for Formation SPERGEN | | 1st Production Date: | 2/17/2014 | Choke Size: | | | Formation Name: | SPERGEN | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 4/28/2015 | Treatment End Date: | 4/30/2015 | | Treatment Summary: | Re-perfed 8,103' - 8,124' 126 addtl holes
Acidized with 210 bbls of 2% KCL with acetone and ethanol and displaced with 65 bbls of 2% KCL | | Total fluid used in treatment (bbls): | 275 | Max pressure during treatment (psi): | 1430 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | 210 | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 275 | | Fresh water used in treatment (bbls): | 65 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: PIPELINE | | Formation Treatment | | Treatment Type: | ACID JOB | | Treatment Date: | 1/31/2014 | Treatment End Date: | 2/4/2014 | | Treatment Summary: | Acidize with 50 bbls of 7 1/5% Acetic Acid. Total fluids used was 110 bbls
| | Total fluid used in treatment (bbls): | 110 | Max pressure during treatment (psi): | 800 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | 50 | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | 60 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 0 | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: PIPELINE |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 8137 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/8/2015 | Test Method: | pumping | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | FLARED | |
| Test Type | Measure |
|---|
| BBLS_H2O | 291 | | BBLS_OIL | 55 | | BTU_GAS | 996 | | CALC_BBLS_H2O | 291 | | CALC_BBLS_OIL | 55 | | CALC_GOR | 291 | | CALC_MCF_GAS | 16 | | CASING_PRESS | 50 | | GRAVITY_OIL | 36 | | MCF_GAS | 16 | | TUBING_PRESS | 60 |
| | Perforation Data: | | Interval Top: | 8103 ft. | # Of Holes: | 210 | | Interval Bottom: | 8124 ft. | Hole Size: | 0.45 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2330 |
| Total Gas Produced (MCF) | 326 |
| GOR | 139 |
| GOR Determination | BOE |
| Average BOE per Day | 6.500 |
| Average MCFE per Day | 37.719 |
| Federal Financial Assurance | i | |
|
|
