Wellbore #00 Wellbore Classification: OW Status: PR - 10/1/2025 Measured TD: 8284 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 10/1/2025 | | Wellbore Permit | | | Permit #: | | Expiration Date: | 9/22/2015 | | Proposed Depth/Form: | 8700 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ABCK , Formation: ARBUCKLE , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: ATOK , Formation: ATOKA , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: CHRK , Formation: CHEROKEE , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: LGKC , Formation: LANSING-KANSAS CITY , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: MRRW , Formation: MORROW , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: MRTN , Formation: MARMATON , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: MS-SL , Formation: MISSISSIPPIAN-ST LOUIS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: SPGN , Formation: SPERGEN , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WFCMP , Formation: WOLFCAMP , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WRSW , Formation: WARSAW , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 300 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 69, Top: 0 ft., Bottom: 300 ft. | | Casing: | String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8700 ft., Weight: 17 , Citings Type: PLANNED | | Cement: | Sacks: 722, Top: 0 ft., Bottom: 8700 ft. | | Casing: | String Type: S.C. 1.2, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8700 ft., Weight: 17 , Citings Type: PLANNED | | Cement: | Sacks: 317, Top: 6000 ft., Bottom: 8700 ft. |
| | |

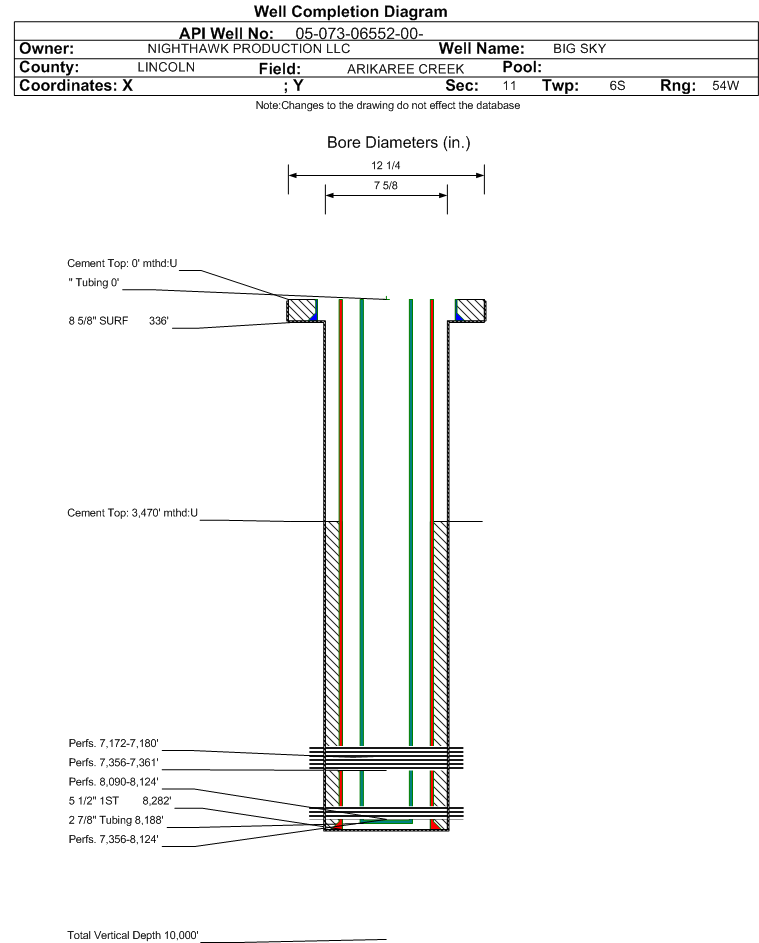

| Wellbore Completed | | Completion Date: | 2/26/2014 | | Spud Date: | 1/14/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 8284 ft. | Measured PB depth: | 8237 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | triple combo, CBL, sonic | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 336 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 122, Top: 0 ft., Bottom: 336 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.625 in., Size: 5.5 in., Top: 0 ft., Depth: 8282 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 1109, Top: 3470 ft., Bottom: 8282 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | NIOBRARA | 3680 ft. | | | | | DAKOTA | 4614 ft. | | | | | STONE CORRAL | 5996 ft. | | | | | WOLFCAMP | 6200 ft. | | | | | LANSING-KANSAS CITY | 6912 ft. | | | | | MARMATON | 7244 ft. | | | | | CHEROKEE | 7446 ft. | | | | | ATOKA | 7637 ft. | | | | | MORROW | 7880 ft. | | | | | SPERGEN | 8063 ft. | | | |
Formation SPGN Formation Classification: OW Status: PR - 10/1/2025 Interval Top: 8090 ft. Interval Bottom: 8124 ft.| Completed Information for Formation SPERGEN | | 1st Production Date: | 3/5/2014 | Choke Size: | | | Formation Name: | SPERGEN | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | ACID JOB | | Treatment Date: | 4/13/2015 | Treatment End Date: | 4/15/2015 | | Treatment Summary: | Re-perforated 8,108'-8,124' (96 holes)
Acidized with 84.5 bbls of Parene solvent and dropped 200 1.3 SG bio balls. Displaced with 43.5 bbls of 2% KCL | | Total fluid used in treatment (bbls): | 128 | Max pressure during treatment (psi): | 1970 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | 84 | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | 43 | Total flowback volume recovered (bbls): | 0 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Type: | ACID JOB | | Treatment Date: | 2/3/2015 | Treatment End Date: | 2/27/2015 | | Treatment Summary: | Re- perfed existing interval, plus an additional 6' new interval (204 new perf holes, plus 112 original holes shot = 316 total).
Pumped 4830 gallons of Mutual Solvent & pumped 100 bio degradable perf balls. Displaced with 45 bbls of 2% KCL | | Total fluid used in treatment (bbls): | 160 | Max pressure during treatment (psi): | 2610 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | 115 | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | 45 | Total flowback volume recovered (bbls): | 220 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: PIPELINE | | Formation Treatment | | Treatment Type: | | | Treatment Date: | 2/21/2014 | Treatment End Date: | 2/21/2014 | | Treatment Summary: | Perf'd Spergen formation only -* No treatment was done | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 258 | | BBLS_OIL | 221 | | CALC_BBLS_H2O | 258 | | CALC_BBLS_OIL | 221 | | CASING_PRESS | 45 | | GRAVITY_OIL | 36 | | TUBING_PRESS | 55 |
| | Perforation Data: | | Interval Top: | 8090 ft. | # Of Holes: | 412 | | Interval Bottom: | 8124 ft. | Hole Size: | 0.42 in. |
|
Formation MRTN Formation Classification: OW Status: PR - 10/1/2025 Interval Top: 7356 ft. Interval Bottom: 7361 ft.| Completed Information for Formation MARMATON | | 1st Production Date: | 12/19/2014 | Choke Size: | | | Formation Name: | MARMATON | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | ACID JOB | | Treatment Date: | 2/20/2015 | Treatment End Date: | 2/26/2015 | | Treatment Summary: | Re-perf'd 7356' - 7361' (30 addtl holes-added to original total, which has since been squeezed)
Acidized pumping 4,000 gallons of 20% HCI gelled acid, displaced with 100 bbls of 2% KCL
| | Total fluid used in treatment (bbls): | 195 | Max pressure during treatment (psi): | 2570 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | 95 | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | 100 | Total flowback volume recovered (bbls): | 147 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: PIPELINE | | Formation Treatment | | Treatment Type: | ACID JOB | | Treatment Date: | 11/14/2014 | Treatment End Date: | 12/1/2014 | | Treatment Summary: | Acidized with 600 gallons of 15% HCL with Ras 10,IC-75, CIA-161, SI-4 and ARG36 - and then additional 14 bbls of 15% HCL Displaced with 31 bbls of 2% KCL water. Perfs ( 7356-7361)
Acidized with 120 bbls of 15% HCL with Ras 10,(surfactant, anti-sludge) IC-75, (iron control) CIA,(corrosion/acid inhibitor) SI-4 (scale inhibitor) & AR-630 (clay stabilizer) displaced with 45 bbls of KCL water Perf's 7254-7274)
Acidized with 1200 gallons of 15% HCL with same above additives and displaced with 45 bbls of 2% KCL water(7218-7222) | | Total fluid used in treatment (bbls): | 342 | Max pressure during treatment (psi): | 2600 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | 176 | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 360 | | Fresh water used in treatment (bbls): | 166 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: PIPELINE |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 216 | | BBLS_OIL | 28 | | BTU_GAS | 820 | | CALC_BBLS_H2O | 216 | | CALC_BBLS_OIL | 28 | | CALC_GOR | 1 | | CALC_MCF_GAS | 30 | | CASING_PRESS | 14 | | GRAVITY_OIL | 36 | | MCF_GAS | 30 | | TUBING_PRESS | 60 |
| | Perforation Data: | | Interval Top: | 7356 ft. | # Of Holes: | 30 | | Interval Bottom: | 7361 ft. | Hole Size: | 0.48 in. |
|
Formation MS-PN Formation Classification: OW Status: CM - 6/11/2015 Interval Top: 7356 ft. Interval Bottom: 8124 ft.| Completed Information for Formation MISSISSIPPIAN-PENNSYLVANI | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | MISSISSIPPIAN-PENNSYLVANI | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 3/6/2015 | Treatment End Date: | N/A | | Treatment Summary: | Test info is commingled results of MRTN & SPGN | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 8188 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/18/2015 | Test Method: | Pumping | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | FLARED | |
| Test Type | Measure |
|---|
| BBLS_H2O | 89 | | BBLS_OIL | 77 | | BTU_GAS | 820 | | CALC_BBLS_H2O | 89 | | CALC_BBLS_OIL | 77 | | CALC_GOR | 208 | | CALC_MCF_GAS | 16 | | CASING_PRESS | 39 | | GRAVITY_OIL | 36 | | MCF_GAS | 16 | | TUBING_PRESS | 65 |
| | Perforation Data: | | Interval Top: | 7356 ft. | # Of Holes: | 442 | | Interval Bottom: | 8124 ft. | Hole Size: | 0.42 in. |
|
Formation LGKC Formation Classification: OW Status: AB - 2/5/2015 Interval Top: 7172 ft. Interval Bottom: 7180 ft.| Completed Information for Formation LANSING-KANSAS CITY | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | LANSING-KANSAS CITY | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 2/5/2015 | Treatment End Date: | N/A | | Treatment Summary: | Performed another cement squeeze | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Type: | | | Treatment Date: | 12/2/2014 | Treatment End Date: | 12/15/2014 | | Treatment Summary: | Perforated only and then squeezed - Formation no longer open | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation LGKC. |
| | Perforation Data: | | Interval Top: | 7172 ft. | # Of Holes: | 48 | | Interval Bottom: | 7180 ft. | Hole Size: | 0.51 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2182 |
| Total Gas Produced (MCF) | 1178 |
| GOR | 539 |
| GOR Determination | BOE |
| Average BOE per Day | 6.542 |
| Average MCFE per Day | 37.965 |
| Federal Financial Assurance | i | |
|
|
