COGIS - WELL SCOUT CARD

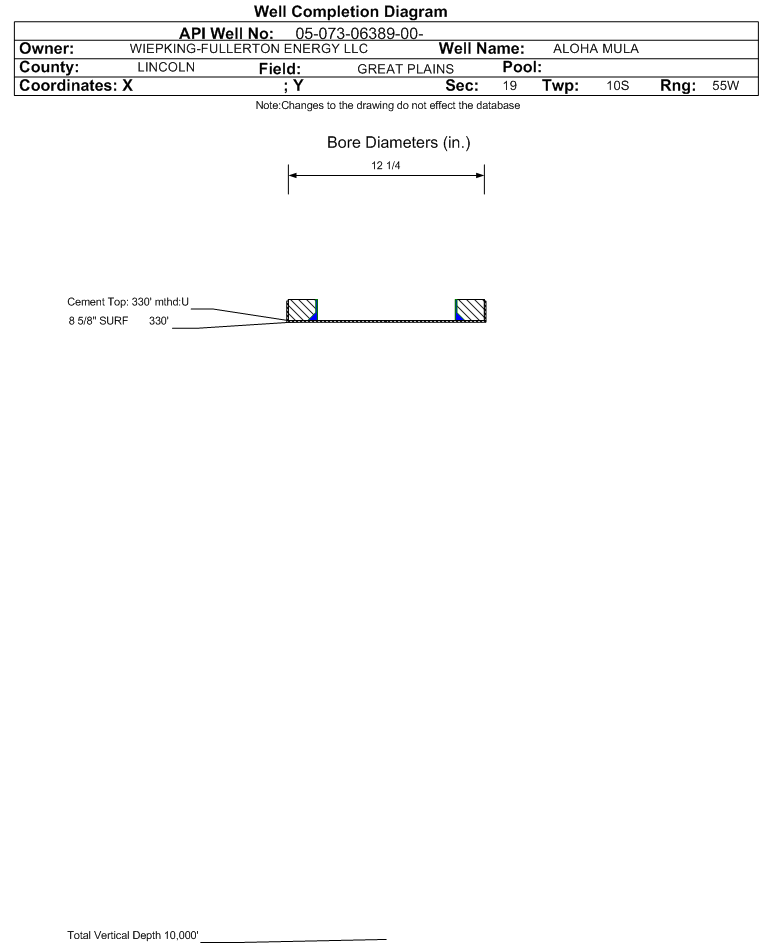

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-073-06389		Well Classification: DA Status: PA - 7/16/2010
Well Name/No:ALOHA MULA #6
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:WIEPKING-FULLERTON ENERGY LLC - 96340
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date7/16/2010
FacilityID:413110LocationID:413089
County:LINCOLN #073Location:SWNE 19 10S55W 6
Field:GREAT PLAINS - #32756Elevation:5228 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1981FNL  2077 FELLat/Long: 39.165950 / -103.591970Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.165950 / -103.591980Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DA             Status: PA - 7/16/2010             Measured TD: 7790 ft.

 Wellbore Data for Original WellboreWellbore Classification: DA        PA - 7/16/2010
Wellbore Permit
Permit #:Expiration Date:8/31/2011
Proposed Depth/Form:8400 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: ABCK , Formation: ARBUCKLE , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: CHRK , Formation: CHEROKEE , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: LNSNG , Formation: LANSING , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: MRRW , Formation: MORROW , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: MRTN , Formation: MARMATON , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: SURF, Hole Size: 12 in., Size: 8 in., Top: , Depth: 330 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 225, Top: 0 ft., Bottom: 330 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 8400 ft., Weight: 17 , Citings Type: PLANNED
Cement:Sacks: 325, Top: 5000 ft., Bottom: 8400 ft.
Wellbore Completed
Completion Date:7/16/2010
Spud Date:6/29/2010Spud Date Is:ACTUAL
Measured TD:7790 ft.Measured PB depth:7790 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DUAL INDUCTION GUARD LOG GAMMA RAY/COMPENSATED DENSITY COMPENSATED NEUTRON GAMMA RAY
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 330 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 225, Top: 330 ft., Bottom: 0 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
NIOBRARA3119 ft.
CODELL3649 ft.
DAKOTA4099 ft.
LANSING6627 ft.
MARMATON6969 ft.
CHEROKEE7095 ft. Y
MORROW7580 ft.
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/16/2010
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
