Wellbore #00 Wellbore Classification: DSPW Status: PA - 6/23/2017 Measured TD: 8296 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: DSPW PA - 6/23/2017 | | Wellbore Permit | | | Permit #: | 20090907 | Expiration Date: | 3/9/2010 | | Proposed Depth/Form: | 8311 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ABCK , Formation: ARBUCKLE , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: CHRK , Formation: CHEROKEE , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: MRRW , Formation: MORROW , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: MRTN , Formation: MARMATON , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: SPGN , Formation: SPERGEN , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: 2ND, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 8000 ft., Weight: 17 , Citings Type: PLANNED | | Cement: | Sacks: 497, Top: 2500 ft., Bottom: 8000 ft. | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 3840 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 200, Top: 2940 ft., Bottom: 3840 ft. |
| | |

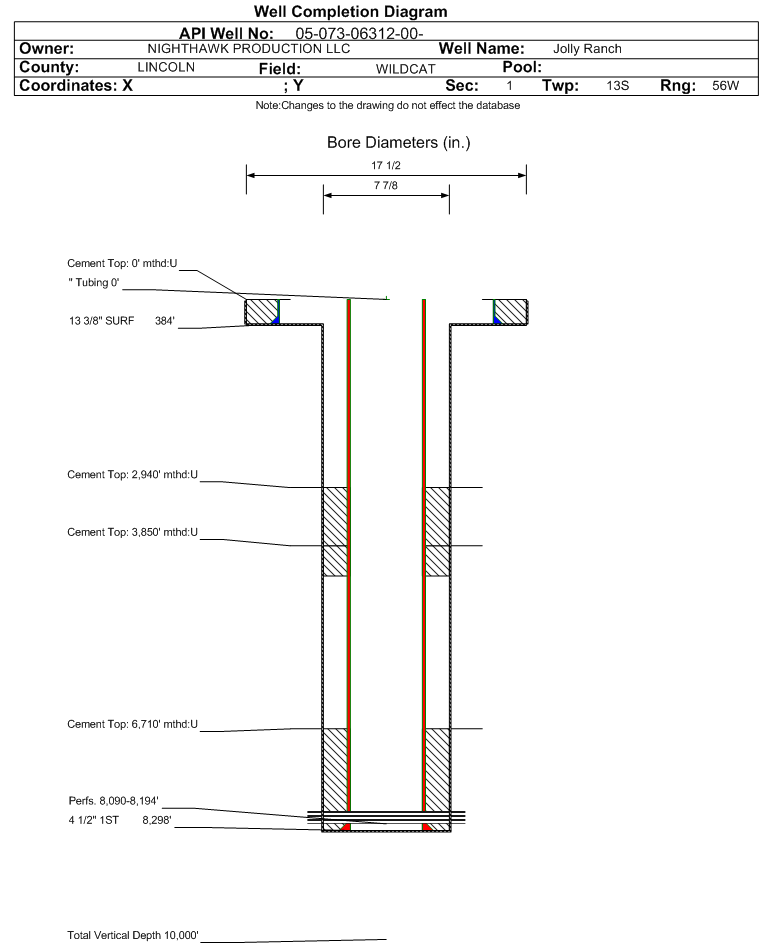

| Wellbore Completed | | Completion Date: | 11/16/2008 | | Spud Date: | 11/3/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 8296 ft. | Measured PB depth: | | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | DUEL INDUCTION, COMPENSATED DENSITY, BHC SONIC, CBL | | Casing: | String Type: SURF, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 384 ft., Weight: 54.5 , Citings Type: ACTUAL | | Cement: | Sacks: 325, Top: 0 ft., Bottom: 325 ft., Determination Method: CBL | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8298 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 420, Top: 6710 ft., Bottom: 8298 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 3836 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 200, Top: 2940 ft., Bottom: 3850 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 4320 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 150, Top: 3850 ft., Bottom: 4320 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | ARBUCKLE | 8060 ft. | | N | N | | REAGAN | 8240 ft. | | N | N |
Formation ABCK Formation Classification: DSPW Status: AB - 6/23/2017 Interval Top: 8090 ft. Interval Bottom: 8194 ft.| Completed Information for Formation ARBUCKLE | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | ARBUCKLE | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/14/2009 | | Treatment Summary: | BROKE DOWN PERFS WITH 1000 GAL. 15% HCL W/ ADDITIVES |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation ABCK. |
| | Perforation Data: | | Interval Top: | 8090 ft. | # Of Holes: | 320 | | Interval Bottom: | 8194 ft. | Hole Size: | 0.47 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 06/23/2017 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
