COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-073-06096		Well Classification: OW Status: PA - 10/11/2002
Well Name/No:BRAUKMANN FARM #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:MULL DRILLING COMPANY INC - 61250
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date10/11/2002
FacilityID:218111LocationID:386999
County:LINCOLN #073Location:SESW 1 12S53W 6
Field:CLIFFORD - #11410Elevation:5019 ft.
Planned Location:660FSL  1980 FWLLat/Long: 39.025469 / -103.286605Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.025440 / -103.286550Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 10/11/2002             Measured TD: 7150 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 10/11/2002
Wellbore Permit
Permit #:19812181 Expiration Date:4/9/1982
Proposed Depth/Form:7200 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: MRTN , Formation: MARMATON , Order: 0 , Unit Acreage: 80, Drill Unit: E2SW
Wellbore Completed
Completion Date:11/30/1988
Spud Date:12/21/1981Spud Date Is:ACTUAL
Measured TD:7150 ft.Measured PB depth:0 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CNL-DENSITY, DUAL, BHC SONIC

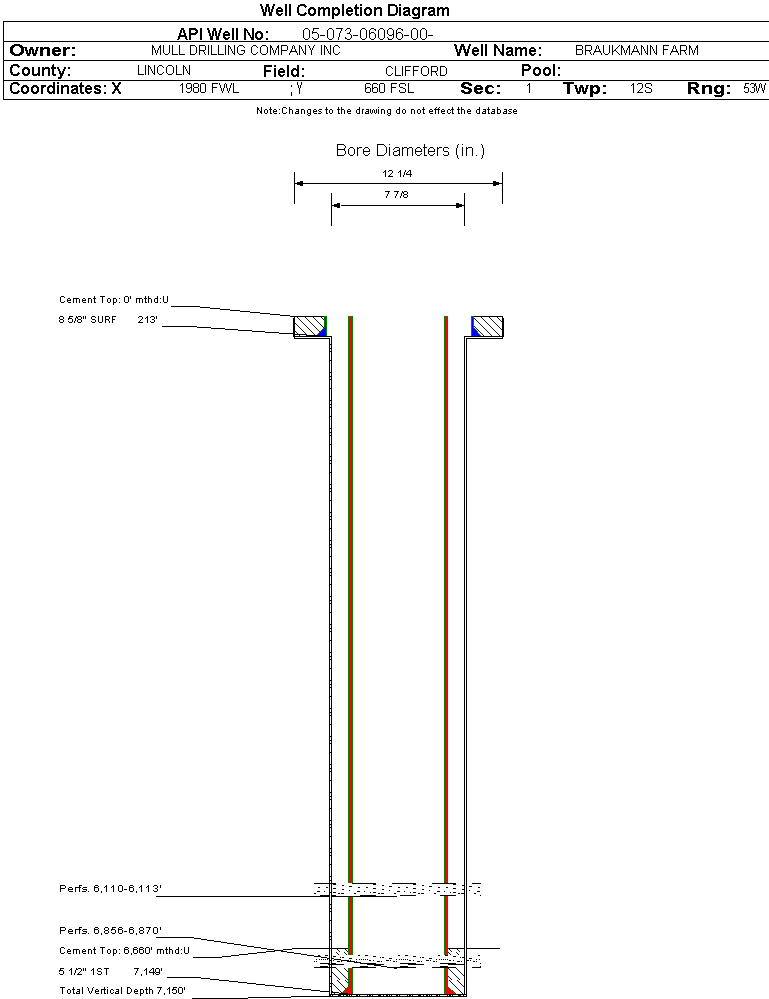

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 213 ft., Weight: 20 , Citings Type: ACTUAL
Cement:Sacks: 175, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 7149 ft., Weight: 14,15,17 , Citings Type: ACTUAL
Cement:Sacks: 75, Top: 6660 ft., Bottom: , Determination Method:
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 6261 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 75, Top: 5925 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
NIOBRARA2095 ft.
NEVA5129 ft.
FORAKER5206 ft.
SHAWNEE5448 ft.
HEEBNER5666 ft.
TORONTO5690 ft.
LANSING5704 ft.
MARMATON6060 ft. Y
CHEROKEE K6194 ft.
ATOKA6413 ft.
MORROW6754 ft.YY
KEYES6948 ft.Y
SPERGEN6992 ft.
ST JOE7116 ft.

Formation MRRW                     Formation Classification:  GW                     Status:  AB - 11/30/1988                Interval Top: 6856 ft.    Interval Bottom: 6870 ft.

 Completed Information for Formation MORROW
1st Production Date:3/4/1982Choke Size:
Formation Name:MORROWCommingled:No
Production Method:PUMPING
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/11/1982Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 82
BBLS_OIL 207
GRAVITY_OIL 43
Perforation Data:
Interval Top:6856 ft.# Of Holes:
Interval Bottom:6870 ft.Hole Size:

Formation MRTN                     Formation Classification:  GW                     Status:  AB - 10/11/2002                Interval Top: 6110 ft.    Interval Bottom: 6113 ft.

 Completed Information for Formation MARMATON
1st Production Date:12/17/1988Choke Size:
Formation Name:MARMATONCommingled:
Production Method:PUMPING
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/4/1989Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 72
BBLS_OIL 40
GRAVITY_OIL 35.5
Perforation Data:
Interval Top:6110 ft.# Of Holes:
Interval Bottom:6113 ft.Hole Size:0.5 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/11/2002
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
June 2024 - May 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
