COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-073-06004		Well Classification: DA Status: PA - 9/19/1970
Well Name/No:STATE #1-36
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:UNION TEXAS PETROLEUM - 91500
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:C-70/7577
Facility Status:PAStatus Date9/19/1970
FacilityID:218019LocationID:386910
County:LINCOLN #073Location:NENE 36 13S53W 6
Field:WILDCAT - #99999Elevation:4693 ft.
Planned Location:675FNL  635 FELLat/Long: 38.876521 / -103.276333Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DA             Status: PA - 9/19/1970             Measured TD: 5135 ft.

 Wellbore Data for Original WellboreWellbore Classification: DA        PA - 9/19/1970
Wellbore Permit
Permit #:19700359 Expiration Date:7/31/1971
Proposed Depth/Form:5800 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:STATESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WFCMP , Formation: WOLFCAMP , Order: , Unit Acreage: 40, Drill Unit: NENE
Wellbore Completed
Completion Date:9/19/1970
Spud Date:9/1/1970Spud Date Is:ACTUAL
Measured TD:5135 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:SIDEWALL NEUTRON POROSITY LOG, DUAL INDUCTION-LATERLOG, COMPENSATED FORMATION DENSITY LOG

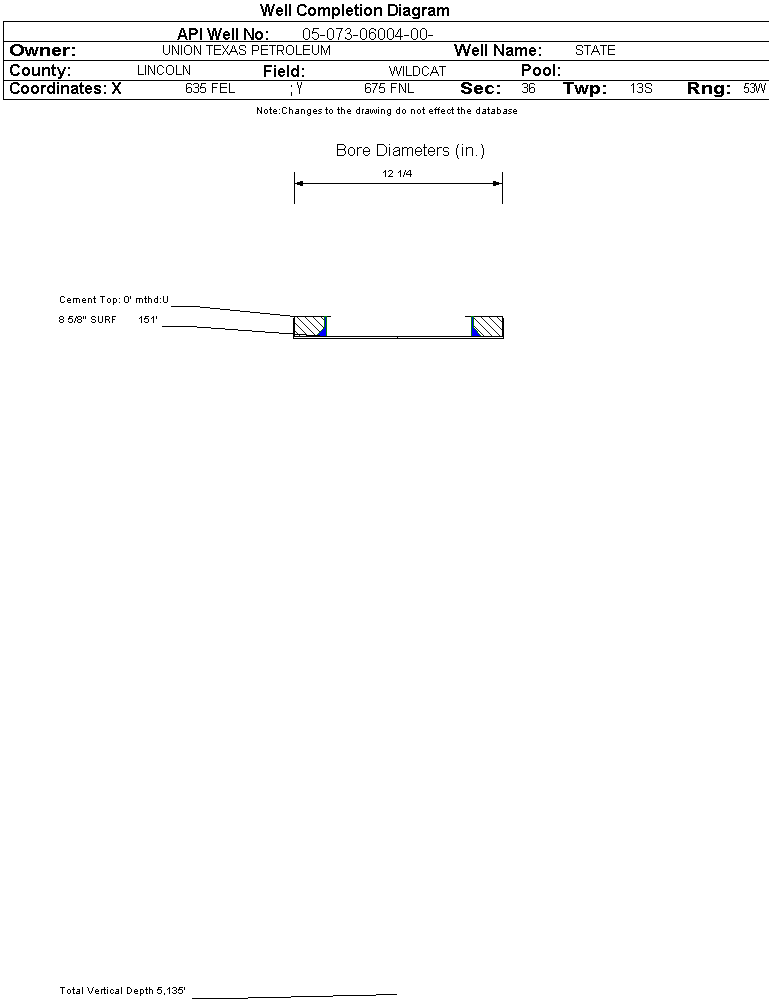

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 151 ft., Weight: 20 , Citings Type: ACTUAL
Cement:Sacks: 135, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FORT HAYS2035 ft.
CODELL2076 ft.
GREENHORN2151 ft.
BENTONITE2349 ft.
D SAND2434 ft.
J SAND2457 ft.
SKULL CREEK2672 ft.
CHEYENNE2785 ft.
MORRISON2863 ft.
BLAINE3566 ft.
STONE CORRAL3855 ft.
WOLFCAMP4147 ft.YY
VIRGIL4746 ft.
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/19/1970
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
June 2024 - May 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
