Wellbore #00 Wellbore Classification: CBM Status: PR - 2/7/2018 Measured TD: 2305 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 2/7/2018 | | Wellbore Permit | | | Permit #: | | Expiration Date: | 6/16/2013 | | Proposed Depth/Form: | 2305 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | STATE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 45 ft., Weight: 54 , Citings Type: PLANNED | | Cement: | Sacks: 98, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 250 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 190, Top: 0 ft., Bottom: 250 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2305 ft., Weight: 15.5 , Citings Type: PLANNED | | Cement: | Sacks: 100, Top: 1576 ft., Bottom: 2305 ft. | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 1576 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 250, Top: 0 ft., Bottom: 1576 ft. |
| | |

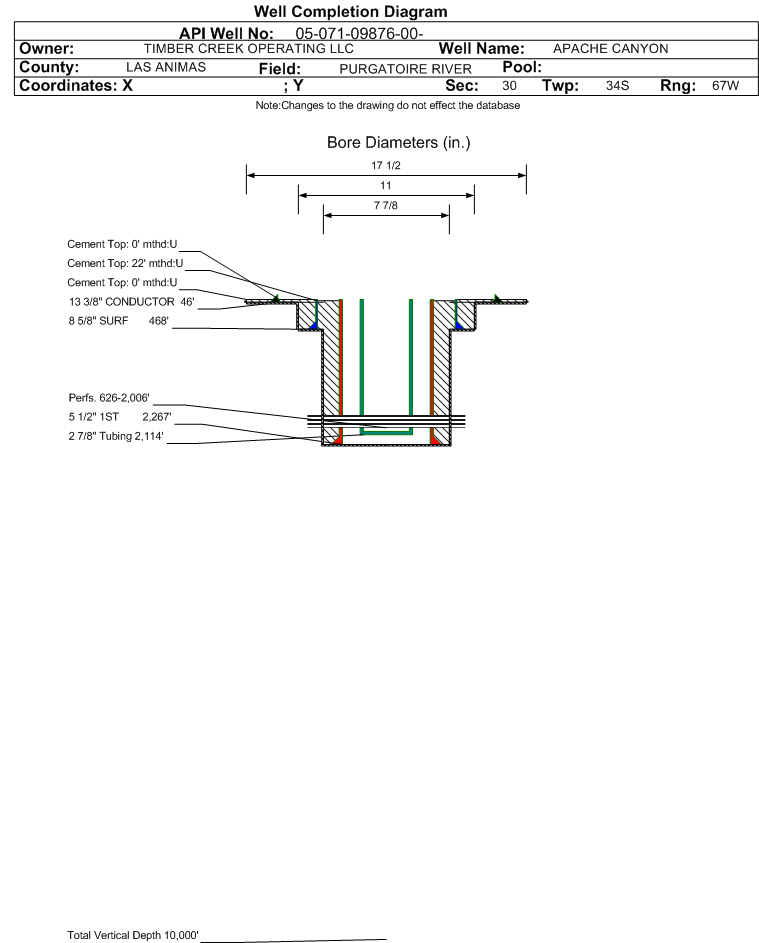

| Wellbore Completed | | Completion Date: | 7/20/2011 | | Spud Date: | 7/18/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 2305 ft. | Measured PB depth: | 2220 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | OH, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 46 ft., Weight: 54.50 , Citings Type: ACTUAL | | Cement: | Sacks: 266, Top: 0 ft., Bottom: 46 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 468 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 211, Top: 0 ft., Bottom: 468 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2267 ft., Weight: 15.50 , Citings Type: ACTUAL | | Cement: | Sacks: 330, Top: 22 ft., Bottom: 2267 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | | N | N | | VERMEJO COAL | 1739 ft. | | N | N | | TRINIDAD | 2077 ft. | | N | N |
Formation RT-VJ Formation Classification: GW Status: PR - 2/7/2018 Interval Top: 626 ft. Interval Bottom: 2006 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | 8/15/2012 | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 1/17/2018 | Treatment End Date: | 1/17/2018 | | Treatment Summary: | Perforated four Vermejo Coal intervals listed by stage with 4 SPF and 120 degree phasing including Stage 1 - 1,979' - 82', 1,989' - 94' and 2,004' - 06', Stage 2 - 1,813' - 17', Stage 3 - 1,756' - 58' and Stage 4 - 1,532' - 35' and 1,536' - 39 (net - 22' or 88 holes) with Coil Tubing Unit, 2-7/8" coiled tubing to isolate stages and a 70/30 Quality foam frac. A total of 500 gallons of 15% HCl, 115,784 gallons of produced water, 70,524 lbs of 20/40 mesh Premium White Sand and 494,387 scf N2 were pumped. Stage 3 screened out with 2.6 ppg downhole sand concentration. Stage 4 was skipped as NCS tool could not get back down to setting depth.
Perforated six Raton Coal intervals listed by stage with 4 SPF and 120 degree phasing and fraced the six Raton Coal intervals including Stage 5 - 993' - 96', Stage 6 - 894' - 97, Stage 7 - 804' - 07' and 830 - 34', Stage 8 - 755' - 759', Stage 9 - 712' - 16' and Stage 10 - 654' - 58' (net - 25' or 100 holes) with Coil Tubing Unit, 2-7/8" coiled tubing to isolate stages and a 70/30 Quality foam frac. A total of 250 gallons of 15% HCl, 112,143 gallons of produced water, 151,293 lbs of 20/40 mesh Premium White Sand and 425,825 scf N2 were pumped. All six Raton Coal stages were pumped according to prognosis.
The CTU rigged down and moved to next loaction. Well was cleaned out to PBTD and returned to production as a commingled Raton-Vermejo Coal well. | | Total fluid used in treatment (bbls): | 5444 | Max pressure during treatment (psi): | 3238 | | Total gas used in treatment (mcf): | 920212 | Fluid density (lbs/gal): | 8.35 | | Type Of gas: | NITROGEN | Number Of staged intervals: | 10 | | Total acid used in treatment (bbls): | 17 | Min frac gradient (psi/ft): | 0.52 | | Recycled water used in treatment (bbls): | 5427 | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 221817 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/5/2012 | Treatment End Date: | 7/5/2012 | | Treatment Summary: | Pumped 4,000 gals 15% HCl acid. Frac'd w/217,407 gals 20# Delta 140 w/sandwedge OS carrying 374,842# 16/30 Brady sand. | | Total fluid used in treatment (bbls): | 5272 | Max pressure during treatment (psi): | 2683 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 4 | | Total acid used in treatment (bbls): | 96 | Min frac gradient (psi/ft): | 2.46 | | Recycled water used in treatment (bbls): | 5178 | Total flowback volume recovered (bbls): | 0 | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 374842 | Green completions techniques utilized: | No | | Reason green techniques Not utilized: PRESSURE |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 2114 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/25/2018 | Test Method: | Pumping | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 147 | | BTU_GAS | 998 | | CALC_BBLS_H2O | 147 | | CALC_MCF_GAS | 14 | | CASING_PRESS | 9 | | GRAVITY_OIL | 1 | | TUBING_PRESS | 4 |
| | Perforation Data: | | Interval Top: | 626 ft. | # Of Holes: | 188 | | Interval Bottom: | 2006 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 16686 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 7.880 |
| Average MCFE per Day | 45.702 |
| Federal Financial Assurance | i | |
|
|
