Wellbore #00 Wellbore Classification: CBM Status: PR - 8/17/2011 Measured TD: 1950 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 8/17/2011 | | Wellbore Permit | | | Permit #: | | Expiration Date: | 2/28/2013 | | Proposed Depth/Form: | 1725 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 17.5 in., Size: 13.375 in., Top: , Depth: 48 ft., Weight: 54 , Citings Type: PLANNED | | Cement: | Sacks: 98, Top: 0 ft., Bottom: 48 ft. | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: , Depth: 450 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 300, Top: 0 ft., Bottom: 450 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 1925 ft., Weight: 15.5 , Citings Type: PLANNED | | Cement: | Sacks: 120, Top: 1068 ft., Bottom: 1925 ft. | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 1068 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 170, Top: 0 ft., Bottom: 1068 ft. |
| | |

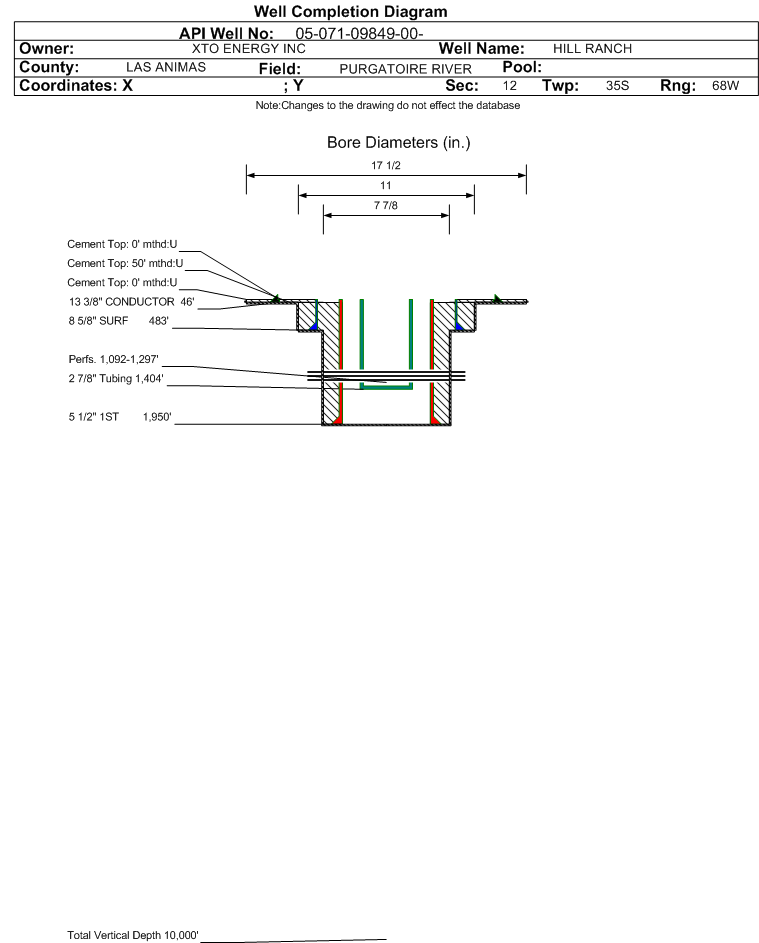

| Wellbore Completed | | Completion Date: | 5/26/2011 | | Spud Date: | 5/23/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 1950 ft. | Measured PB depth: | 1902 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | Triple Combo, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 46 ft., Weight: 46 , Citings Type: ACTUAL | | Cement: | Sacks: 65, Top: 0 ft., Bottom: 46 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 483 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 215, Top: 0 ft., Bottom: 483 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 1950 ft., Weight: 15.5 , Citings Type: ACTUAL | | Cement: | Sacks: 270, Top: 50 ft., Bottom: 1950 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | | N | N | | VERMEJO COAL | 1041 ft. | | N | N | | TRINIDAD | 1328 ft. | | N | N |
Formation VRMJ Formation Classification: GW Status: PR - 8/17/2011 Interval Top: 1092 ft. Interval Bottom: 1297 ft.| Completed Information for Formation VERMEJO COAL | | 1st Production Date: | 8/11/2011 | Choke Size: | | | Formation Name: | VERMEJO COAL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/28/2011 | | Treatment Summary: | Acidized w/2,000 gals 15% HCl acid. Frac'd w/49,498 gals 20# Delta 140 w/Sandwedge OS carrying 173,759# 16/30 Nebraska sd. |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 1404 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/17/2011 | Test Method: | Pumping | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 13 | | BTU_GAS | 1005 | | CALC_BBLS_H2O | 13 | | CALC_MCF_GAS | 74 | | CASING_PRESS | 23 | | MCF_GAS | 74 | | TUBING_PRESS | 196 |
| | Perforation Data: | | Interval Top: | 1092 ft. | # Of Holes: | 45 | | Interval Bottom: | 1297 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 11995 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 5.665 |
| Average MCFE per Day | 32.858 |
| Federal Financial Assurance | i | |
|
|
