Wellbore #00 Wellbore Classification: CBM Status: PR - 2/21/2009 Measured TD: 1780 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 2/21/2009 | | Wellbore Permit | | | Permit #: | 20083506 | Expiration Date: | 7/21/2009 | | Proposed Depth/Form: | 1790 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | STATE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 1790 ft., Weight: 15.5 , Citings Type: PLANNED | | Cement: | Sacks: 100, Top: 1092 ft., Bottom: 1790 ft. | | Casing: | String Type: S.C. 1.2, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 1092 ft., Weight: 15.5 , Citings Type: PLANNED | | Cement: | Sacks: 170, Top: 0 ft., Bottom: 1092 ft. |
| | |

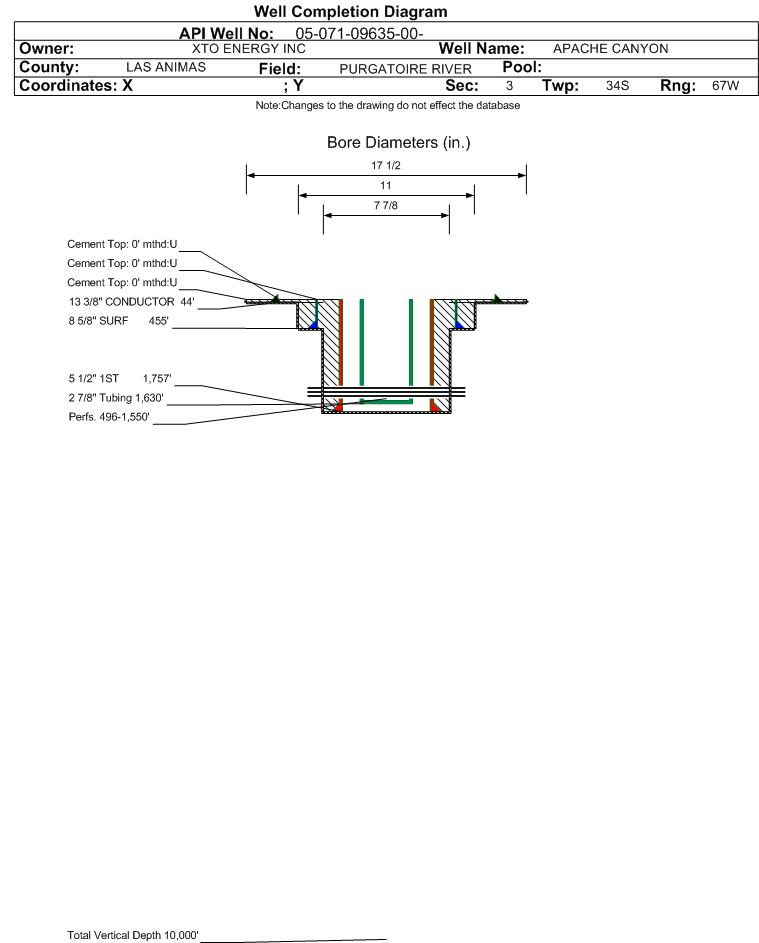

| Wellbore Completed | | Completion Date: | 8/25/2008 | | Spud Date: | 8/22/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 1780 ft. | Measured PB depth: | 1745 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | DUAL INDUC, COMP DENSITY NEUTRON W/GR & CALIPER, GR/CBL/CCL | | Casing: | String Type: CONDUCTOR, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 44 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 76, Top: 0 ft., Bottom: 47 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 455 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 221, Top: 0 ft., Bottom: 465 ft., Determination Method: CBL | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 1757 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 212, Top: 0 ft., Bottom: 1780 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1267 ft. | N | N | | VERMEJO COAL | 1267 ft. | 1611 ft. | N | N | | TRINIDAD | 1611 ft. | 1780 ft. | N | N |
Formation RT-VJ Formation Classification: GW Status: PR - 2/21/2009 Interval Top: 496 ft. Interval Bottom: 1550 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | 2/21/2009 | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/30/2009 | | Treatment Summary: | ACIDIZED W/2,200 GALS 15% HCI ACID. FRAC'D W/82,017 GALS 20# DELTA 140 W/SANDWEDGE OS CARRYING 118,724# 16/30 BRADY SD & 76,600# 12/20 BRADY SD. |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 1630 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/21/2009 | Test Method: | PUMPING | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 77 | | BTU_GAS | 1008 | | CALC_BBLS_H2O | 77 | | CALC_MCF_GAS | 40 | | CASING_PRESS | 13 | | MCF_GAS | 40 | | TUBING_PRESS | 5 |
| | Perforation Data: | | Interval Top: | 496 ft. | # Of Holes: | 69 | | Interval Bottom: | 1550 ft. | Hole Size: | 0.45 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 12320 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 5.821 |
| Average MCFE per Day | 33.749 |
| Federal Financial Assurance | i | |
|
|
