Wellbore #00 Wellbore Classification: CBM Status: PR - 2/1/2026 Measured TD: 1925 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 2/1/2026 | | Wellbore Permit | | | Permit #: | 20083504 | Expiration Date: | 7/21/2009 | | Proposed Depth/Form: | 1848 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | STATE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 1848 ft., Weight: 15.5 , Citings Type: PLANNED | | Cement: | Sacks: 100, Top: 1132 ft., Bottom: 1848 ft. | | Casing: | String Type: S.C. 1.2, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 1132 ft., Weight: 15.5 , Citings Type: PLANNED | | Cement: | Sacks: 180, Top: 0 ft., Bottom: 1132 ft. |
| | |

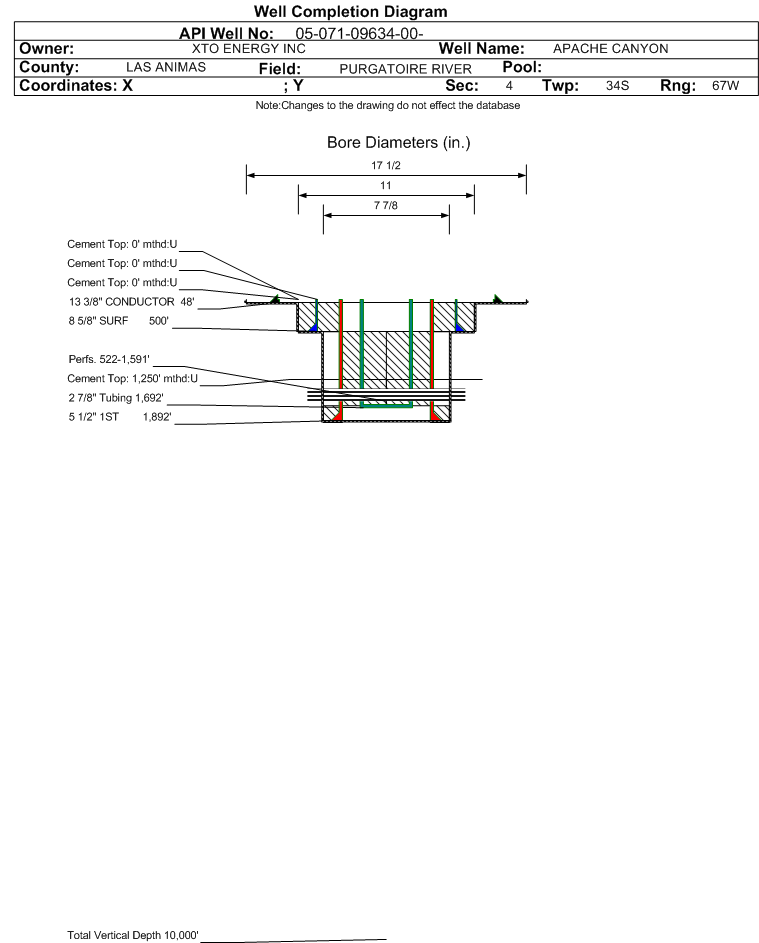

| Wellbore Completed | | Completion Date: | 8/17/2008 | | Spud Date: | 8/14/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 1925 ft. | Measured PB depth: | 1845 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | DUAL INDUC, COMP DENSITY NEUTRON W/ GR & CALIPER, GR/CBL/CCL(2) | | Casing: | String Type: CONDUCTOR, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 48 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 81, Top: 0 ft., Bottom: 50 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 500 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 232, Top: 0 ft., Bottom: 505 ft., Determination Method: CBL | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 1892 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 218, Top: 0 ft., Bottom: 1925 ft., Determination Method: CBL | | Casing: | String Type: 2ND, Hole Size: , Size: , Top: , Depth: 1660 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 135, Top: 1250 ft., Bottom: 1664 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1311 ft. | N | N | | VERMEJO COAL | 1311 ft. | 1680 ft. | N | N | | TRINIDAD | 1680 ft. | 1819 ft. | N | N | | PIERRE | 1819 ft. | 1925 ft. | N | N |
Formation RT-VJ Formation Classification: GW Status: PR - 2/1/2026 Interval Top: 522 ft. Interval Bottom: 1591 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | 2/4/2009 | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/9/2009 | | Treatment Summary: | ACIDIZED W/2,500 GALS 15% HCI ACID. FRAC'D W/127,210 GALS 20# DELTA 140 W/SANDWEDGE OS CARRYING 88,229# 16/30 BRADY SAND AND 86,500# 12/20 BRADY SAND. |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 1692 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/4/2009 | Test Method: | PUMPING | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 83 | | BTU_GAS | 1002 | | CALC_BBLS_H2O | 83 | | CASING_PRESS | 10 | | TUBING_PRESS | 2 |
| | Perforation Data: | | Interval Top: | 522 ft. | # Of Holes: | 48 | | Interval Bottom: | 1591 ft. | Hole Size: | 0.45 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
02/2025 - 01/2026 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 3391 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 1.614 |
| Average MCFE per Day | 9.391 |
| Federal Financial Assurance | i | |
|
|
