Wellbore #00 Wellbore Classification: CBM Status: PR - 11/1/2023 Measured TD: 2340 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 11/1/2023 | | Wellbore Permit | | | Permit #: | 20083500 | Expiration Date: | 7/21/2009 | | Proposed Depth/Form: | 2255 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | STATE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 2255 ft., Weight: 15.5 , Citings Type: PLANNED | | Cement: | Sacks: 100, Top: 1528 ft., Bottom: 2255 ft. | | Casing: | String Type: S.C. 1.2, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 1528 ft., Weight: 15.5 , Citings Type: PLANNED | | Cement: | Sacks: 240, Top: 0 ft., Bottom: 1528 ft. |
| | |

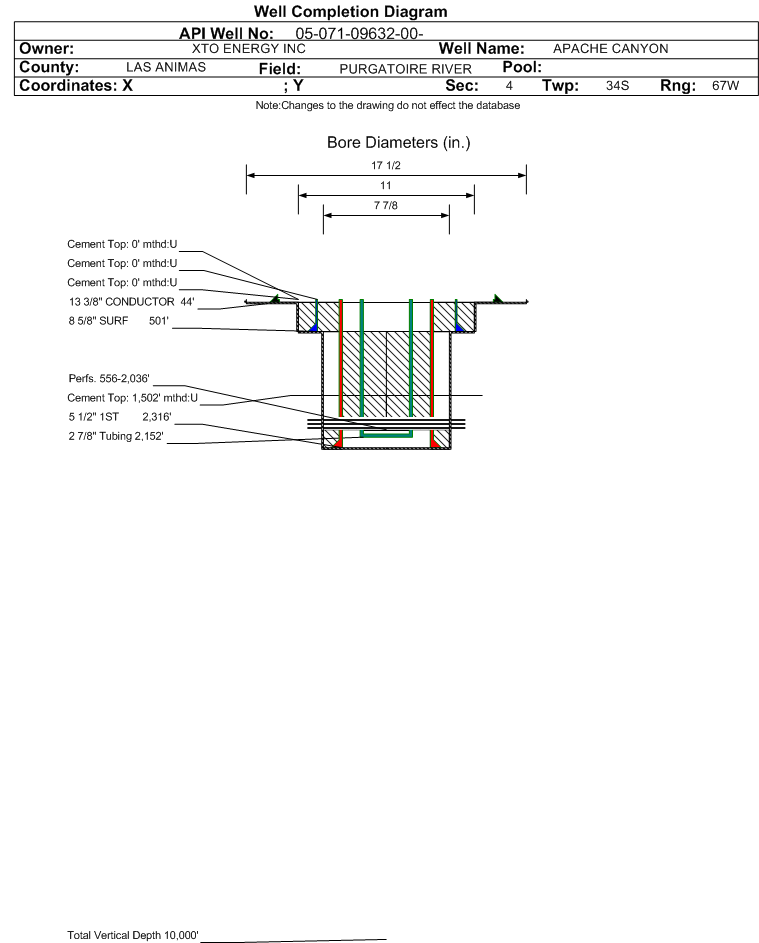

| Wellbore Completed | | Completion Date: | 8/11/2008 | | Spud Date: | 8/8/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 2340 ft. | Measured PB depth: | 2267 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | DUAL INDUC, COMP DENSITY NEUTRON W/GR & CALIPER, CBL (2) | | Casing: | String Type: CONDUCTOR, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 44 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 81, Top: 0 ft., Bottom: 48 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 501 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 232, Top: 0 ft., Bottom: 505 ft., Determination Method: CBL | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2316 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 272, Top: 0 ft., Bottom: 2340 ft., Determination Method: CBL | | Casing: | String Type: 2ND, Hole Size: , Size: , Top: , Depth: 2035 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 200, Top: 1502 ft., Bottom: 2050 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1680 ft. | N | N | | VERMEJO COAL | 1680 ft. | 2054 ft. | N | N | | TRINIDAD | 2054 ft. | 2208 ft. | N | N | | PIERRE | 2208 ft. | 2340 ft. | N | N |
Formation RT-VJ Formation Classification: GW Status: PR - 11/1/2023 Interval Top: 556 ft. Interval Bottom: 2036 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | 1/23/2009 | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/12/2009 | | Treatment Summary: | ACIDIZED W/5,500 GALS 15% HCL ACID. FRAC'D W/259,499 GALS 20# DELTA 140 W/SANDWEDGE OS CARRYING 199,885# BRADY SD, AND 268,762# 12/20 BRADY SD. |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 2152 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/23/2009 | Test Method: | PUMPING | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 103 | | BBLS_OIL | 0 | | BTU_GAS | 1010 | | CALC_BBLS_H2O | 103 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 0 | | CASING_PRESS | 4 | | GRAVITY_OIL | 1 | | MCF_GAS | 0 | | TUBING_PRESS | 2 |
| | Perforation Data: | | Interval Top: | 556 ft. | # Of Holes: | 127 | | Interval Bottom: | 2036 ft. | Hole Size: | 0.45 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 18274 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 8.631 |
| Average MCFE per Day | 50.088 |
| Federal Financial Assurance | i | |
|
|
