Wellbore #00 Wellbore Classification: CBM Status: PR - 4/9/2010 Measured TD: 2758 ft. Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 4/9/2010 | Wellbore Permit | | Permit #: | 20091727 | Expiration Date: | 4/27/2010 | Proposed Depth/Form: | 2758 ft. | Surface Mineral Owner Same: | Yes | Mineral Owner: | FEE | Surface Owner: | FEE | Unit: | | Unit Number: | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: | Casing: | String Type: 2ND, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 2053 ft., Weight: 15.5 , Citings Type: PLANNED | Cement: | Sacks: 320, Top: 0 ft., Bottom: 2053 ft. | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 2053 ft., Weight: , Citings Type: PLANNED | Cement: | Sacks: 320, Top: 0 ft., Bottom: 2053 ft. |
| | |

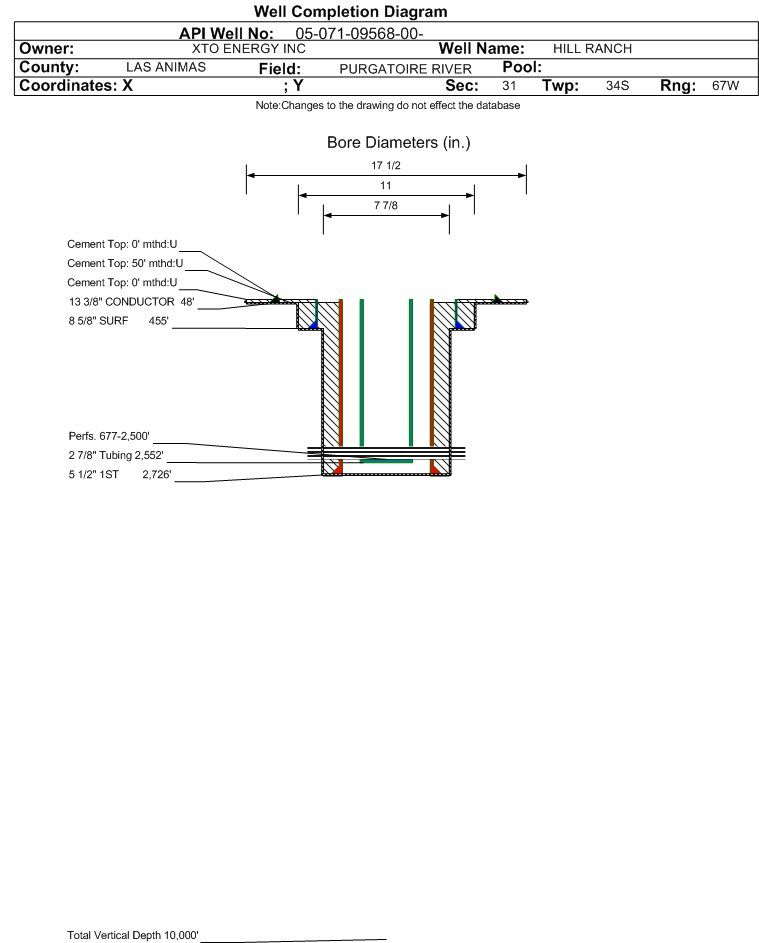

Wellbore Completed | Completion Date: | 2/2/2010 | Spud Date: | 1/30/2010 | Spud Date Is: | ACTUAL | Measured TD: | 2758 ft. | Measured PB depth: | 2638 ft. | True Vertical TD: | | True Vertical PB depth: | | Log Types: | DUAL INDUCTION, COMPENSATED DENSITY/NEUTRON, CBL | Casing: | String Type: CONDUCTOR, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 48 ft., Weight: , Citings Type: ACTUAL | Cement: | Sacks: 84, Top: 0 ft., Bottom: 50 ft., Determination Method: | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 455 ft., Weight: , Citings Type: ACTUAL | Cement: | Sacks: 235, Top: 0 ft., Bottom: 460 ft., Determination Method: | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2726 ft., Weight: , Citings Type: ACTUAL | Cement: | Sacks: 435, Top: 50 ft., Bottom: 2758 ft., Determination Method: CBL | Formation | Interval Top | Log Bottom | Cored | DSTs | RATON COAL | 0 ft. | | N | N | VERMEJO COAL | 2240 ft. | | N | N | TRINIDAD | 2570 ft. | | N | N |
Formation RT-VJ Formation Classification: GW Status: PR - 7/1/2011 Interval Top: 677 ft. Interval Bottom: 2500 ft. Completed Information for Formation RATON-VERMEJO COALS | 1st Production Date: | 4/9/2010 | Choke Size: | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | Production Method: | | Open Hole Completion: | No |
| Formation Treatment | Treatment Date: | 2/23/2010 | Treatment Summary: | ACIDIZED WITH 4000 GALS 15% HCI ACID. FRACD WITH 165931 GALS DELTA 140 WITH SANDWEDGE OS CARRYING 30316# 16/30 BRADY SD AND 380667# 12/20 BRADY SD. |
| Tubing Size: | 2.875 in. | Tubing Setting Depth: | 2552 ft. | Tubing Packer Depth: | | Tubing Multiple Packer: | | Open Hole Top: | | Open Hole Bottom: | | Initial Test Data: | Test Date: | 4/9/2010 | Test Method: | PUIMPING | Hours Tested: | 24 | Gas Type: | COAL GAS | Gas Disposal: | SOLD | |
Test Type | Measure |
---|
BBLS_H2O | 114 | BTU_GAS | 989 | CALC_BBLS_H2O | 114 | CALC_MCF_GAS | 22 | CASING_PRESS | 5 | MCF_GAS | 22 | TUBING_PRESS | 3 |
| Perforation Data: | Interval Top: | 677 ft. | # Of Holes: | 104 | Interval Bottom: | 2500 ft. | Hole Size: | 0.45 in. |
|
|
|
|
|
Reported Plugged | N | |
Out Of Service Repurposed | N | |
Out Of Service | N | |
Inactive Exception | N | |
Noticed Inactive | N | |
Defined Inactive | N | |
Low Producing | N | |
Total Oil Produced (Barrels) | 0 |
Total Gas Produced (MCF) | 21910 |
GOR | |
GOR Determination | MCFE |
Average BOE per Day | 10.348 |
Average MCFE per Day | 60.011 |
Federal Financial Assurance | i | |
|
|
