Wellbore #00 Wellbore Classification: CBM Status: PR - 5/1/2025 Measured TD: 2370 ft. Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 5/1/2025 | Wellbore Permit | | Permit #: | 20081053 | Expiration Date: | 4/13/2009 | Proposed Depth/Form: | 2421 ft. | Surface Mineral Owner Same: | Yes | Mineral Owner: | FEE | Surface Owner: | FEE | Unit: | | Unit Number: | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: |
| | |

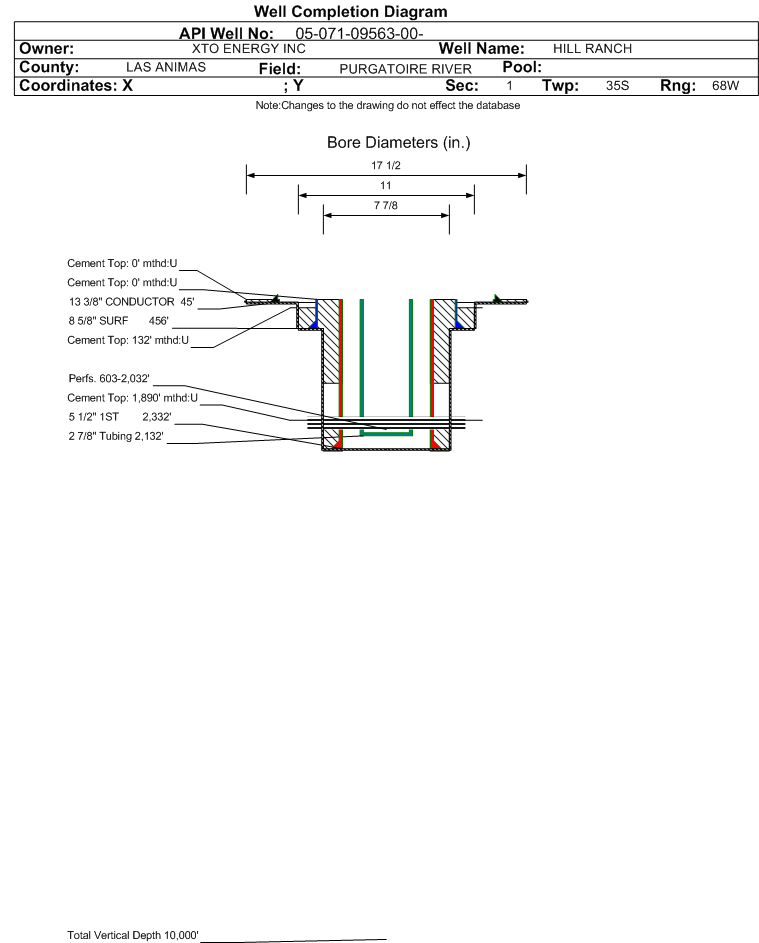

Wellbore Completed | Completion Date: | 3/8/2009 | Spud Date: | 3/5/2009 | Spud Date Is: | ACTUAL | Measured TD: | 2370 ft. | Measured PB depth: | 2290 ft. | True Vertical TD: | | True Vertical PB depth: | | Log Types: | DUAL INDUC, COMP DENSITY NEUTRON, CBL | Casing: | String Type: CONDUCTOR, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | Cement: | Sacks: 60, Top: 0 ft., Bottom: 50 ft., Determination Method: CALC | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 456 ft., Weight: , Citings Type: ACTUAL | Cement: | Sacks: 272, Top: 132 ft., Bottom: 460 ft., Determination Method: CALC | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2332 ft., Weight: , Citings Type: ACTUAL | Cement: | Sacks: 100, Top: 1890 ft., Bottom: 2370 ft., Determination Method: CBL | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 1309 ft., Weight: , Citings Type: ACTUAL | Cement: | Sacks: 240, Top: 0 ft., Bottom: 1312 ft., Determination Method: CBL | Formation | Interval Top | Log Bottom | Cored | DSTs | RATON COAL | 0 ft. | 1665 ft. | N | N | VERMEJO COAL | 1804 ft. | 2119 ft. | N | N | TRINIDAD | 2047 ft. | | N | N |
Formation RT-VJ Formation Classification: GW Status: PR - 5/1/2025 Interval Top: 603 ft. Interval Bottom: 2032 ft. Completed Information for Formation RATON-VERMEJO COALS | 1st Production Date: | 7/24/2009 | Choke Size: | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | Production Method: | | Open Hole Completion: | No |
| Formation Treatment | Treatment Date: | 6/30/2009 | Treatment Summary: | ACIDIZED W/ 5,440 GALS 15% HCI ACID. FRAC'D W/ 201,141 GALS 20# DELTA 140 W/SANDWEDGE OS CARRYING 164,200# 16/30 BRADY SAND & 257,800# 12/20 BRADY SND. |
| Tubing Size: | 2.875 in. | Tubing Setting Depth: | 2132 ft. | Tubing Packer Depth: | | Tubing Multiple Packer: | | Open Hole Top: | | Open Hole Bottom: | | Initial Test Data: | Test Date: | 7/24/2009 | Test Method: | PUMPING | Hours Tested: | 24 | Gas Type: | COAL GAS | Gas Disposal: | SOLD | |
Test Type | Measure |
---|
BBLS_H2O | 58 | BTU_GAS | 887 | CALC_BBLS_H2O | 58 | CALC_BBLS_OIL | 0 | CALC_MCF_GAS | 8 | CASING_PRESS | 4 | MCF_GAS | 8 | TUBING_PRESS | 3 |
| Perforation Data: | Interval Top: | 603 ft. | # Of Holes: | 104 | Interval Bottom: | 2032 ft. | Hole Size: | 0.45 in. |
|
|
|
|
|
Reported Plugged | N | |
Out Of Service Repurposed | N | |
Out Of Service | N | |
Inactive Exception | N | |
Noticed Inactive | N | |
Defined Inactive | N | |
Low Producing | Y | Production Period 05/2024 - 04/2025 |
Total Oil Produced (Barrels) | 0 |
Total Gas Produced (MCF) | 3437 |
GOR | |
GOR Determination | MCFE |
Average BOE per Day | 1.631 |
Average MCFE per Day | 9.438 |
Federal Financial Assurance | i | |
|
|
