Wellbore #00 Wellbore Classification: CBM Status: PR - 7/10/2009 Measured TD: 2637 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 7/10/2009 | | Wellbore Permit | | | Permit #: | 20081045 | Expiration Date: | 4/13/2009 | | Proposed Depth/Form: | 2577 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: 2ND, Hole Size: 7.875 in., Size: 55.5 in., Top: , Depth: 1895 ft., Weight: 15.5 , Citings Type: PLANNED | | Cement: | Sacks: 300, Top: 0 ft., Bottom: 1895 ft. |
| | |

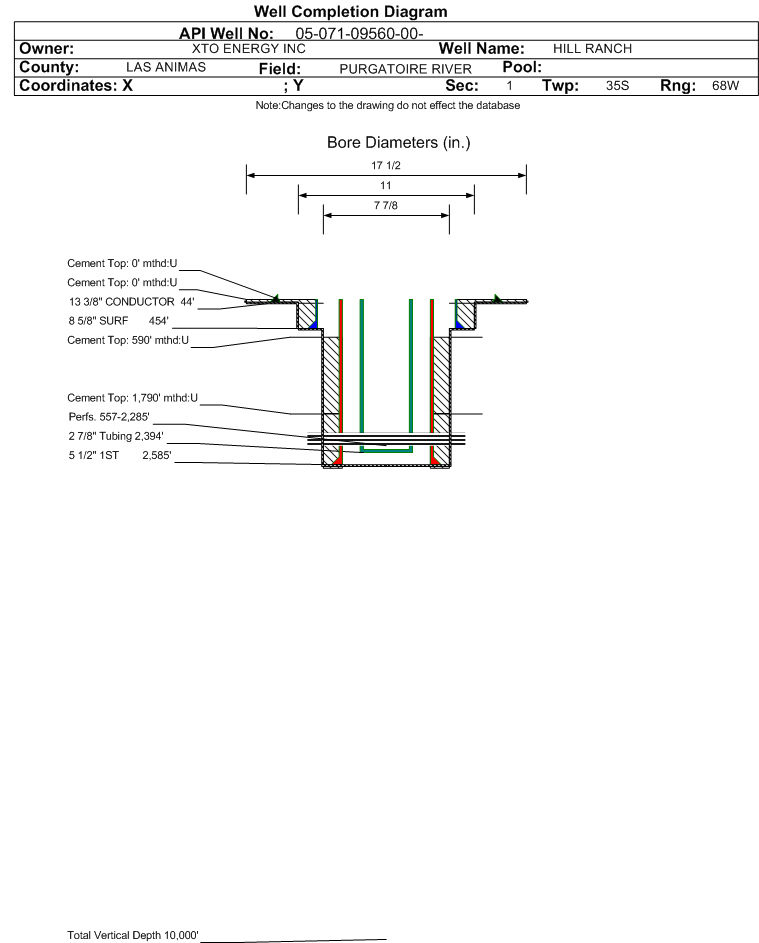

| Wellbore Completed | | Completion Date: | 3/14/2009 | | Spud Date: | 3/9/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 2637 ft. | Measured PB depth: | 2543 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | DUAL INDUC, COMP DENSITY NEUTRON, CBL, GR/NEU, COMP NEU | | Casing: | String Type: CONDUCTOR, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 44 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 60, Top: 0 ft., Bottom: 60 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 454 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 195, Top: 0 ft., Bottom: 460 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2585 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 116, Top: 1790 ft., Bottom: 2637 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 1782 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 260, Top: 590 ft., Bottom: 1782 ft., Determination Method: CBL | | Additional Cement: | String Type: SURF , Top: 0 ft., Depth: 545 ft., Bottom: 545 ft., Sacks: 120, Method: STAGE TOOL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 2059 ft. | N | N | | VERMEJO COAL | 2059 ft. | 2320 ft. | N | N | | TRINIDAD | 2320 ft. | 2411 ft. | N | N | | PIERRE | 2411 ft. | 2637 ft. | N | N |
Formation RT-VJ Formation Classification: GW Status: PR - 7/10/2009 Interval Top: 557 ft. Interval Bottom: 2285 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | 7/7/2009 | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/17/2009 | | Treatment Summary: | ACIDIZED W/5,400 GALS 15% HCL ACID. FRAC'D W/283,021 GALS 20# DELTA 140 W/SANDWEDGE OS CARRYING 37,800# 16/30 BRADY SD & 424,900# 12/20 BRADY SD. |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 2394 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/10/2009 | Test Method: | PUMPING | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 93 | | BBLS_OIL | 0 | | BTU_GAS | 1005 | | CALC_BBLS_H2O | 93 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 4 | | CASING_PRESS | 3 | | MCF_GAS | 4 | | TUBING_PRESS | 2 |
| | Perforation Data: | | Interval Top: | 557 ft. | # Of Holes: | 118 | | Interval Bottom: | 2285 ft. | Hole Size: | 0.45 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 19340 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 9.137 |
| Average MCFE per Day | 53.001 |
| Federal Financial Assurance | i | |
|
|
