Wellbore #00 Wellbore Classification: CBM Status: PR - 7/9/2008 Measured TD: 2478 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 7/9/2008 | | Wellbore Permit | | | Permit #: | 20076794 | Expiration Date: | 2/3/2009 | | Proposed Depth/Form: | 2472 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | STATE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: 2ND, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 1671 ft., Weight: 15.5 , Citings Type: PLANNED | | Cement: | Sacks: 290, Top: 0 ft., Bottom: 1671 ft. |
| | |

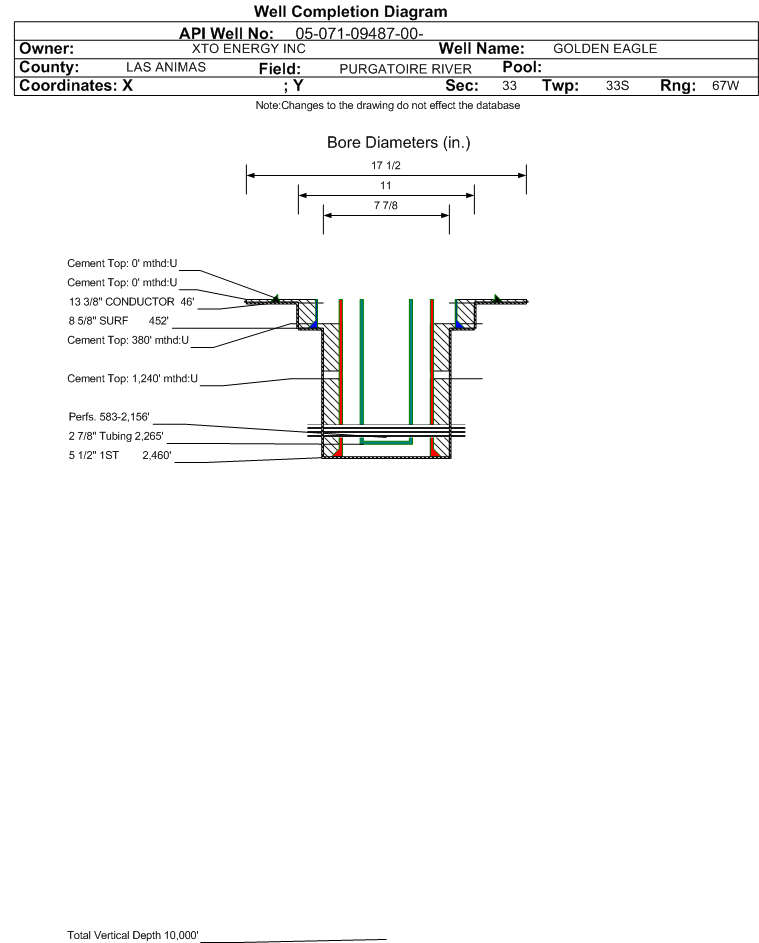

| Wellbore Completed | | Completion Date: | 3/5/2008 | | Spud Date: | 3/2/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 2478 ft. | Measured PB depth: | 2414 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | GR/CCL/CBL, GAMMA NEUTRON | | Casing: | String Type: CONDUCTOR, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 46 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 78, Top: 0 ft., Bottom: 55 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 452 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 227, Top: 0 ft., Bottom: 475 ft., Determination Method: CBL | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2460 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 240, Top: 1240 ft., Bottom: 2478 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 210, Top: 380 ft., Bottom: 1120 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1807 ft. | N | N | | VERMEJO COAL | 1807 ft. | 2182 ft. | N | N | | TRINIDAD | 2182 ft. | 2478 ft. | N | N |
Formation RT-VJ Formation Classification: GW Status: PR - 12/1/2010 Interval Top: 583 ft. Interval Bottom: 2156 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | 7/9/2008 | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/23/2008 | | Treatment Summary: | ACIDIZED W/5,000 GALS 15% HCI. FRAC'D W/271,422 GALS 20# DELTA W/SANDWEDGE OS CARRYING 156,994# 16/30 BRADY SAND & 334,500# 12/20 BRADY SAND. |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 2265 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/9/2008 | Test Method: | PUMPING | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 103 | | BTU_GAS | 1007 | | CALC_BBLS_H2O | 103 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 620 | | CASING_PRESS | 45 | | GRAVITY_OIL | 1 | | MCF_GAS | 620 | | TUBING_PRESS | 3 |
| | Perforation Data: | | Interval Top: | 583 ft. | # Of Holes: | 143 | | Interval Bottom: | 2156 ft. | Hole Size: | 0.45 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 38369 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 18.137 |
| Average MCFE per Day | 105.153 |
| Federal Financial Assurance | i | |
|
|
