Wellbore #00 Wellbore Classification: CBM Status: PR - 2/8/2018 Measured TD: 2225 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 2/8/2018 | | Wellbore Permit | | | Permit #: | 20072812 | Expiration Date: | 7/8/2008 | | Proposed Depth/Form: | 2152 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | STATE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 1432 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 250, Top: 0 ft., Bottom: 1432 ft. |
| | |

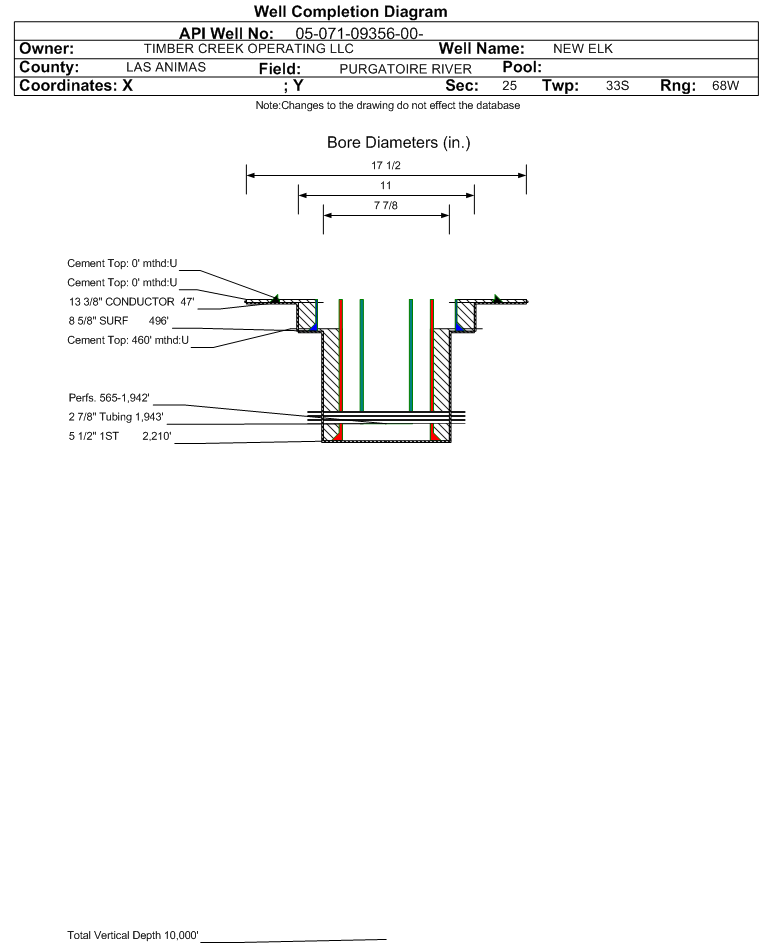

| Wellbore Completed | | Completion Date: | 8/8/2007 | | Spud Date: | 8/2/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 2225 ft. | Measured PB depth: | 2165 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | DUAL IND W/GR; COMP DENSITY NEUTRON W/CALIPER, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 47 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 78, Top: 0 ft., Bottom: 47 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 496 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 227, Top: 0 ft., Bottom: 496 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2210 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 300, Top: 460 ft., Bottom: 2210 ft., Determination Method: CBL | | Additional Cement: | String Type: 1ST , Top: 460 ft., Depth: 1678 ft., Bottom: 1430 ft., Sacks: 100, Method: SQUEEZE | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1488 ft. | N | N | | VERMEJO COAL | 1554 ft. | 1945 ft. | N | N | | TRINIDAD | 1945 ft. | 2225 ft. | N | N |
Formation RT-VJ Formation Classification: GW Status: PR - 2/8/2018 Interval Top: 565 ft. Interval Bottom: 1942 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | 2/14/2008 | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 1/21/2018 | Treatment End Date: | 1/22/2018 | | Treatment Summary: | Perforate five Vermejo Coal intervals with 4 SPF and 120 degree phasing listed by stage and fraced five Vermejo Coal intervals including Stage 1 - 1,933' - 37' and 1,940' - 42', Stage 2 - 1,883' - 85', 1,891' -93' and 1,907' - 10', Stage 3 - 1,850' - 54', Stage 4 - 1,642' - 45', Stage 5 - 1,586' - 89' and 1,597' - 98' (24' net or 96 holes) with Coil Tubing Unit, 2-7/8" coiled tubing to isolate stages and a 70/30 Quality foam frac. A total of 500 gallons of 15% HCl, 138,026 gallons of produced water, 116,367 lbs of 20/40 mesh Premium White Sand and 645,493 scf N2 were pumped. Stage 4 screened out with 1.0 ppg sand downhole concentration.
Perforate four Raton Coal intervals with 4 SPF and 120 degree phasing listed by stage and fraced four Raton Coal intervals including Stage 6 - 752' - 58' and 771' - 777', Stage 7 - 677' - 82', 695' - 698' and 700' - 02', Stage 8 - 628' - 32' and Stage 9 - 565' - 67' and 579' - 81' (net - 30' or 120 holes) with Coil Tubing Unit and 2-7/8" coiled tubing to isolate stages. A total of 177,726 gallons of produced water, 251,542 lbs of 20/40 mesh Premium White Sand and 580,386 scf N2 were pumped. All four stages were pumped according to prognosis.
In addition, TCE perforated three intervals with 4 SPF and 120 degree phasing that were not fraced. The three Vermejo Coal intervals were 1,809' - 14', 1,816' - 25' and 1,828' - 31' (net 17' or 68 holes). The intervales were not fraced.
The CTU rigged down and moved to next location. Well was cleaned out to PBTD and returned to production as a commingled Raton-Vermejo well. | | Total fluid used in treatment (bbls): | 7529 | Max pressure during treatment (psi): | 3730 | | Total gas used in treatment (mcf): | 1225779 | Fluid density (lbs/gal): | 8.35 | | Type Of gas: | NITROGEN | Number Of staged intervals: | 9 | | Total acid used in treatment (bbls): | 11 | Min frac gradient (psi/ft): | 0.54 | | Recycled water used in treatment (bbls): | 7518 | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 367909 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Date: | 2/5/2007 | | Treatment Summary: | ACIDIZED W/ 3250 GALS 15% HCL FRACD W/ 202.283 GALS 20# DELTA 140 WITH SANDWEDGE OS CARRYING 25,500# 16/30 ARIZONA SAND FOLLOWED BY 42,603# 12/20 ARIZONA SAND |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 1943 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/7/2018 | Test Method: | Pumping | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 48 | | BBLS_OIL | 0 | | BTU_GAS | 994 | | CALC_BBLS_H2O | 48 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1 | | CASING_PRESS | 2 | | GRAVITY_OIL | 1 | | MCF_GAS | 1 | | TUBING_PRESS | 1 |
| | Perforation Data: | | Interval Top: | 565 ft. | # Of Holes: | 284 | | Interval Bottom: | 1942 ft. | Hole Size: | 0.421875 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 19730 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 9.318 |
| Average MCFE per Day | 54.043 |
