Wellbore #00 Wellbore Classification: GW Status: TA - 5/1/2021 Measured TD: 1900 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW TA - 5/1/2021 | | Wellbore Permit | | | Permit #: | 20072656 | Expiration Date: | 7/4/2008 | | Proposed Depth/Form: | 1850 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | STATE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 1120 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 200, Top: 0 ft., Bottom: 1120 ft. |
| | |

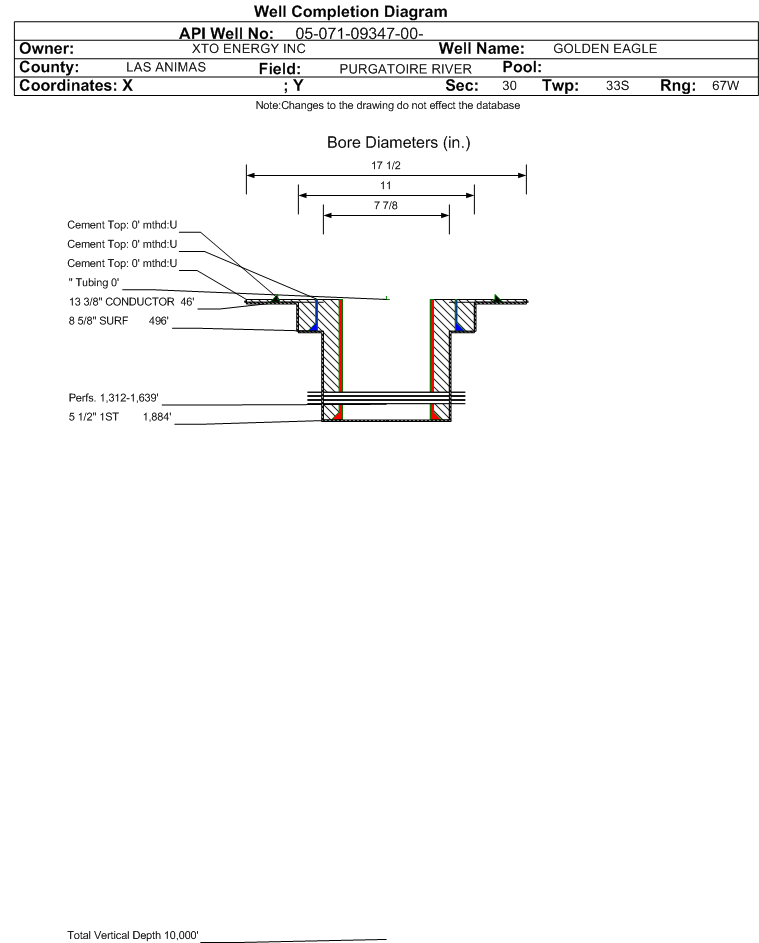

| Wellbore Completed | | Completion Date: | 7/31/2007 | | Spud Date: | 7/30/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 1900 ft. | Measured PB depth: | 1838 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | DIL, CD/NL, CBL (2) | | Casing: | String Type: CONDUCTOR, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 46 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 81, Top: 0 ft., Bottom: 46 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 496 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 250, Top: 0 ft., Bottom: 496 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 1884 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 259, Top: 0 ft., Bottom: 1884 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1144 ft. | N | N | | VERMEJO COAL | 1253 ft. | 1660 ft. | N | N | | TRINIDAD | 1660 ft. | 1894 ft. | N | N |
Formation VRMJ Formation Classification: GW Status: TA - 5/1/2021 Interval Top: 1312 ft. Interval Bottom: 1639 ft.| Completed Information for Formation VERMEJO COAL | | 1st Production Date: | 2/20/2008 | Choke Size: | | | Formation Name: | VERMEJO COAL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/23/2008 | | Treatment Summary: | ACIDIZED W/2000 GALS 15% HCL ACID. FRAC'D W/95.317 GALS 20# DELTA 140 W/SANDWEDGE OS CARRYING 149,844# 16/30 ARIZONA SAND AND 61,700# 12/20 BRADY SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 45 | | BBLS_OIL | 0 | | BTU_GAS | 1006 | | CALC_BBLS_H2O | 45 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 12 | | CASING_PRESS | 14 | | GRAVITY_OIL | 1 | | MCF_GAS | 12 | | TUBING_PRESS | 5 |
| | Perforation Data: | | Interval Top: | 1312 ft. | # Of Holes: | 47 | | Interval Bottom: | 1639 ft. | Hole Size: | 0.45 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2028 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive (TA ) | Y | Defined Inactive
04/30/2021 |
| Low Producing | Y | Production Period
10/2024 - 09/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
