COGIS - WELL SCOUT CARD

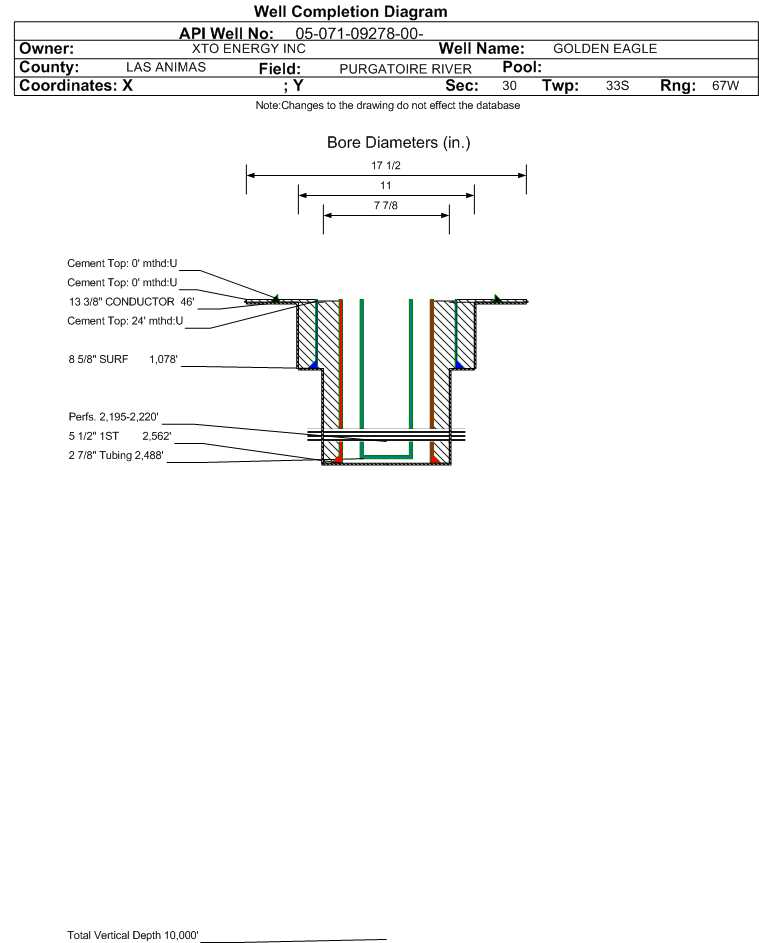

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-09278		Well Classification: CBM Status: PR - 3/20/2008
Well Name/No:GOLDEN EAGLE #30-10
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/20/2008
FacilityID:290524LocationID:309234
County:LAS ANIMAS #071Location:NWSE 30 33S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:7874 ft.
Basin:RATON BASIN
Planned Location:1593FSL  2345 FELLat/Long: 37.140170 / -104.926510Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.140144 / -104.926428Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 3/20/2008             Measured TD: 2585 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 3/20/2008
Wellbore Permit
Permit #:20071781 Expiration Date:5/7/2008
Proposed Depth/Form:2450 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:STATE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 1724 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: 300, Top: 0 ft., Bottom: 1724 ft.
Wellbore Completed
Completion Date:1/27/2008
Spud Date:1/24/2008Spud Date Is:ACTUAL
Measured TD:2585 ft.Measured PB depth:2514 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DUAL INDUC, COMP DEN NEU, CBL
Casing:String Type: CONDUCTOR, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 46 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 183, Top: 0 ft., Bottom: 46 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 1078 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 521, Top: 0 ft., Bottom: 1078 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2562 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 328, Top: 24 ft., Bottom: 2562 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.1859 ft.NN
VERMEJO COAL1859 ft.2252 ft.NN
TRINIDAD2252 ft.2585 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  PR - 3/20/2008                 Interval Top: 2195 ft.    Interval Bottom: 2220 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:3/19/2008Choke Size:
Formation Name:VERMEJO COALCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/28/2008
Treatment Summary:ACIDIZED W/1000 GALS 15% HCL ACID. FRAC W/39,275 GALS 20# DELTA 140 W/SANDWEDGE OS CARRYING 6500# 16/30 BRADY SAND FOLLOWED BY 68,299# 12/20 BRADY SAND.
Tubing Size:2.875 in.Tubing Setting Depth:2488 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/20/2008Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 187
BBLS_OIL 0
BTU_GAS 1008
CALC_BBLS_H2O 187
CALC_BBLS_OIL 0
CALC_MCF_GAS 61
CASING_PRESS 17
GRAVITY_OIL 1
MCF_GAS 61
TUBING_PRESS 3
Perforation Data:
Interval Top:2195 ft.# Of Holes:20
Interval Bottom:2220 ft.Hole Size:0.45 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)7227
GOR
GOR DeterminationMCFE
Average BOE per Day3.411
Average MCFE per Day19.801

 Federal Financial Assurance  i

 Tribal Well  i No
