Wellbore #00 Wellbore Classification: CBM Status: SI - 6/1/2022 Measured TD: 2700 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM SI - 6/1/2022 | | Wellbore Permit | | | Permit #: | 20071782 | Expiration Date: | 5/7/2008 | | Proposed Depth/Form: | 2499 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | STATE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 1928 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 340, Top: 0 ft., Bottom: 1928 ft. |
| | |

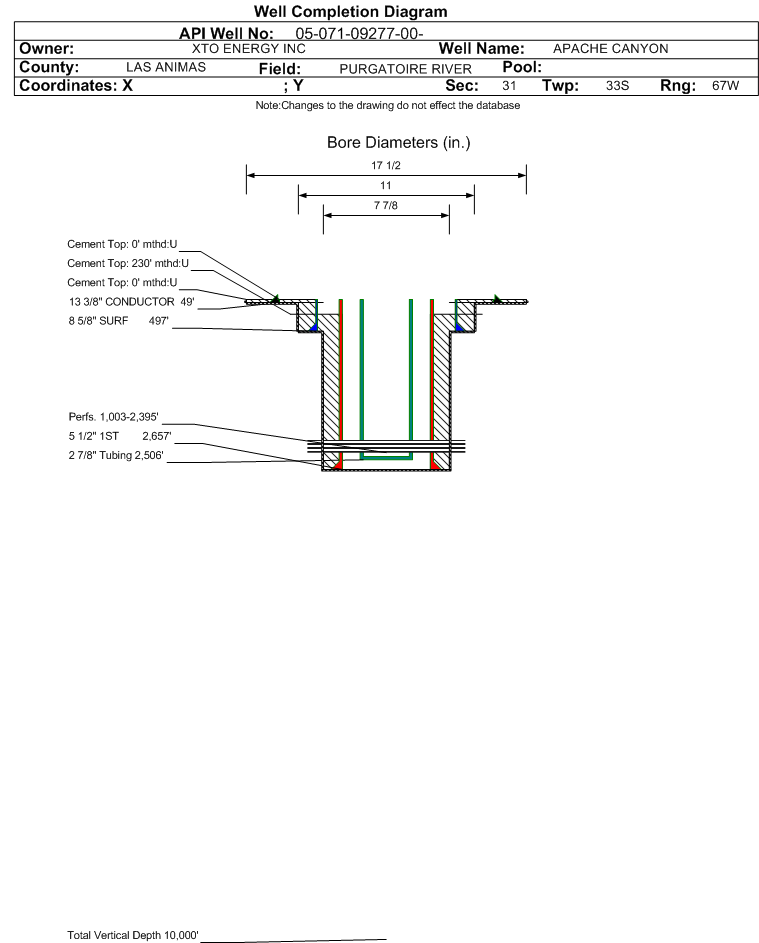

| Wellbore Completed | | Completion Date: | N/A | | Spud Date: | 6/21/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 2700 ft. | Measured PB depth: | 2611 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | COMP DENSITY NEURON W/GR&CALIPER;LTD | | Casing: | String Type: CONDUCTOR, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 49 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 81, Top: 0 ft., Bottom: 49 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 497 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 223, Top: 0 ft., Bottom: 497 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2657 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 420, Top: 230 ft., Bottom: 2657 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1985 ft. | N | N | | VERMEJO COAL | 2067 ft. | 2435 ft. | N | N | | TRINIDAD | 2435 ft. | 2694 ft. | N | N |
Formation RT-VJ Formation Classification: GW Status: SI - 6/1/2022 Interval Top: 1003 ft. Interval Bottom: 2395 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | 9/1/2007 | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/18/2007 | | Treatment Summary: | ACIDIZED W/3800 GALS 15% HCI ACID. FRAC'D W/211,267 GALS 20# DELTA 140 WITH SANDWEDGE OS CARRYING 105,389# 16/30 BRADY SAND & 572,231# 12/20 ARIZONA SAND. |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 2506 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/23/2007 | Test Method: | PUMPING | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 97 | | BTU_GAS | 1003 | | CALC_BBLS_H2O | 97 | | CASING_PRESS | 5 | | GRAVITY_OIL | 1 | | TUBING_PRESS | 3 |
| | Perforation Data: | | Interval Top: | 1003 ft. | # Of Holes: | 131 | | Interval Bottom: | 2395 ft. | Hole Size: | 0.45 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
11/27/2028 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive (SI ) | Y | Defined Inactive
05/31/2022 |
| Low Producing | Y | Production Period
10/2024 - 09/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
