Wellbore #00 Wellbore Classification: CBM Status: PR - 9/29/2007 Measured TD: 1750 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 9/29/2007 | | Wellbore Permit | | | Permit #: | 20070313 | Expiration Date: | 4/2/2008 | | Proposed Depth/Form: | 1625 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 918 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 160, Top: 0 ft., Bottom: 918 ft. |
| | |

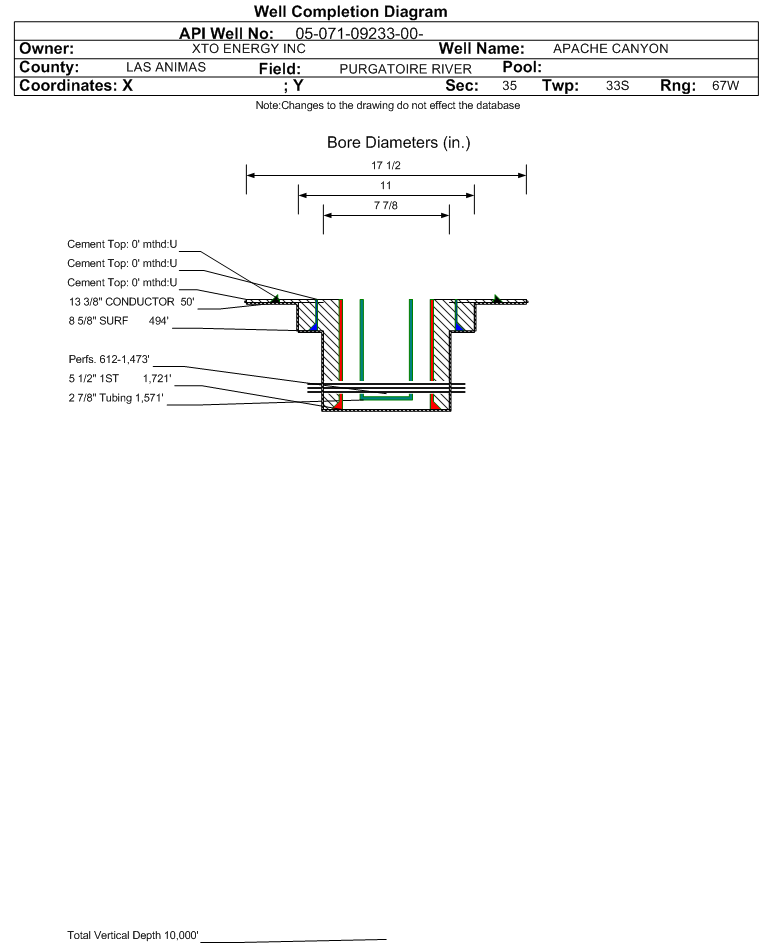

| Wellbore Completed | | Completion Date: | 4/29/2007 | | Spud Date: | 4/27/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 1750 ft. | Measured PB depth: | 1676 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | DIAL IND W/GR: COMP DENSITY NEUTRON W/GR & CALIP | | Casing: | String Type: CONDUCTOR, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 50 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 85, Top: 0 ft., Bottom: 50 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 494 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 233, Top: 0 ft., Bottom: 494 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 1721 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 210, Top: 0 ft., Bottom: 1721 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1036 ft. | N | N | | VERMEJO COAL | 1111 ft. | 1480 ft. | N | N | | TRINIDAD | 1480 ft. | 1750 ft. | N | N |
Formation RT-VJ Formation Classification: GW Status: PR - 9/29/2007 Interval Top: 612 ft. Interval Bottom: 1473 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | 9/26/2007 | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/29/2007 | | Treatment Summary: | ACIDIZE W/2500 GALS 15% HCL ACID. FRAC'D W/145,310 GALS 20# DELTA 140 WITH SANDWEDGE OS CARRYING 16,000# 16/30 BRADY SAND AND 205,137# 12/20 BRADY SAND AND 20,000# 12/20 SLC SAND. |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 1571 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/29/2007 | Test Method: | PUMPING | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 113 | | BBLS_OIL | 0 | | BTU_GAS | 1009 | | CALC_BBLS_H2O | 113 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 53 | | CASING_PRESS | 14 | | GRAVITY_OIL | 1 | | MCF_GAS | 53 | | TUBING_PRESS | 3 |
| | Perforation Data: | | Interval Top: | 612 ft. | # Of Holes: | 88 | | Interval Bottom: | 1473 ft. | Hole Size: | 0.45 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 7956 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 3.759 |
| Average MCFE per Day | 21.795 |
| Federal Financial Assurance | i | |
|
|
