Wellbore #00 Wellbore Classification: CBM Status: PR - 7/26/2007 Measured TD: 2300 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 7/26/2007 | | Wellbore Permit | | | Permit #: | 20070361 | Expiration Date: | 3/11/2008 | | Proposed Depth/Form: | 2225 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 1487 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 260, Top: 0 ft., Bottom: 1487 ft. |
| | |

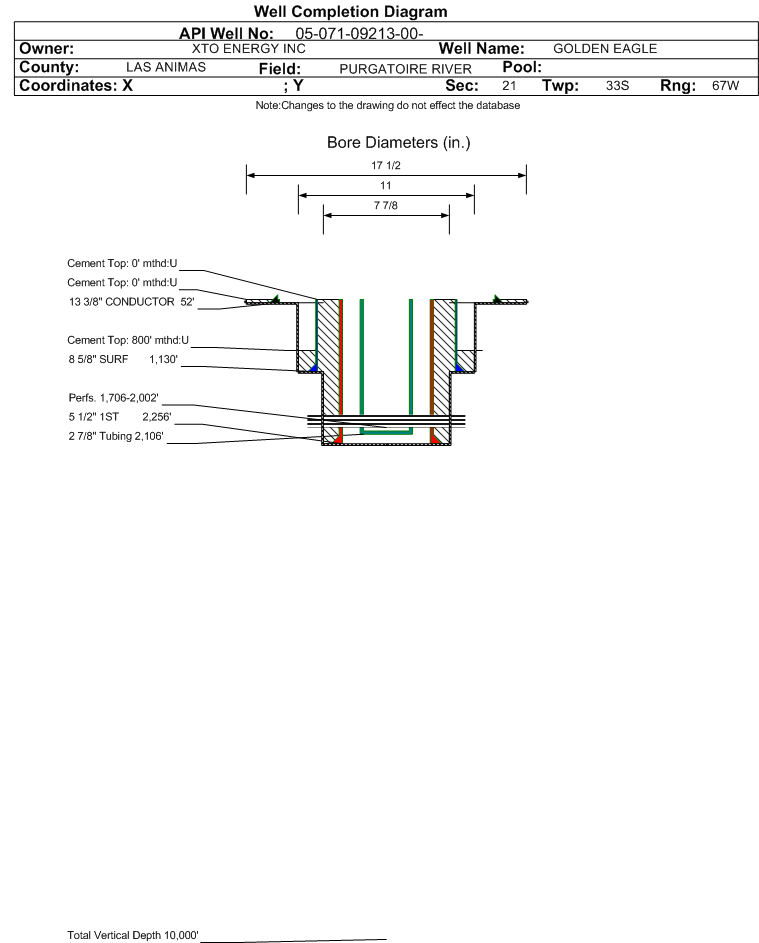

| Wellbore Completed | | Completion Date: | 4/23/2007 | | Spud Date: | 4/20/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 2300 ft. | Measured PB depth: | 2209 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | DUAL, IND; COMP DENSITY NEUTRON | | Casing: | String Type: CONDUCTOR, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 52 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 76, Top: 0 ft., Bottom: 52 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 1130 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 683, Top: 800 ft., Bottom: 1130 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2256 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 385, Top: 0 ft., Bottom: 2256 ft., Determination Method: CBL | | Additional Cement: | String Type: SURF , Top: 0 ft., Depth: 1438 ft., Bottom: 1971 ft., Sacks: 110, Method: PERF & PUMP | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1554 ft. | N | N | | VERMEJO COAL | 1611 ft. | 2025 ft. | N | N | | TRINIDAD | 2025 ft. | 2300 ft. | N | N |
Formation VRMJ Formation Classification: GW Status: PR - 6/1/2012 Interval Top: 1706 ft. Interval Bottom: 2002 ft.| Completed Information for Formation VERMEJO COAL | | 1st Production Date: | 7/3/2007 | Choke Size: | | | Formation Name: | VERMEJO COAL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/30/2007 | | Treatment Summary: | ACIDIZED W/2500 GALS 15% HCI ACID. FRAC'D W/111,146 GALS 20# DELTA 140 W/SANDWEDGE OS CARRYING 274,800# 16/30 BRADY SD |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 2106 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/4/2007 | Test Method: | PUMPING | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 76 | | BBLS_OIL | 0 | | BTU_GAS | 1010 | | CALC_BBLS_H2O | 76 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 76 | | CASING_PRESS | 15 | | GRAVITY_OIL | 558 | | MCF_GAS | 76 | | TUBING_PRESS | 5 |
| | Perforation Data: | | Interval Top: | 1706 ft. | # Of Holes: | 42 | | Interval Bottom: | 2002 ft. | Hole Size: | 0.45 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
10/2024 - 09/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 3007 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 1.419 |
| Average MCFE per Day | 8.238 |
