COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-08928		Well Classification: CBM Status: PR - 2/15/2008
Well Name/No:APACHE CANYON #18-16
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date2/15/2008
FacilityID:286228LocationID:308990
County:LAS ANIMAS #071Location:SESE 18 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:7898 ft.
Basin:RATON BASIN
Planned Location:9FSL  228 FELLat/Long: 37.077042 / -104.921064Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.077050 / -104.921021Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 2/15/2008             Measured TD: 2455 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 2/15/2008
Wellbore Permit
Permit #:20063025 Expiration Date:8/15/2007
Proposed Depth/Form:2400 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:STATE
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 1700 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: 300, Top: 0 ft., Bottom: 1700 ft.
Wellbore Completed
Completion Date:2/2/2007
Spud Date:1/31/2007Spud Date Is:ACTUAL
Measured TD:2455 ft.Measured PB depth:2383 ft.
True Vertical TD:True Vertical PB depth:

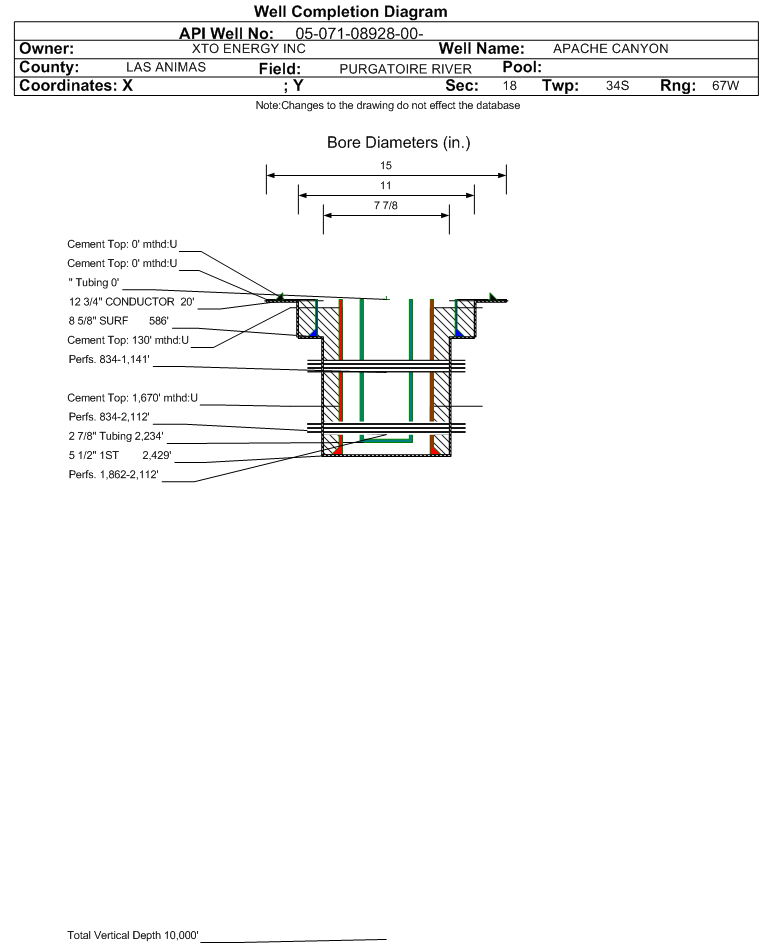

Log Types:DIL, CD/NL, CBL (2)
Casing:String Type: CONDUCTOR, Hole Size: 15 in., Size: 12.75 in., Top: 0 ft., Depth: 20 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 8, Top: 0 ft., Bottom: 20 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 586 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 267, Top: 0 ft., Bottom: 586 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2429 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 365, Top: 130 ft., Bottom: 2429 ft., Determination Method: CBL
Casing:String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 2058 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 91, Top: 1670 ft., Bottom: 2110 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.1729 ft.NN
VERMEJO COAL1809 ft.2179 ft.NN
TRINIDAD2179 ft.2453 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  CM - 12/13/2011                Interval Top: 1862 ft.    Interval Bottom: 2112 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:4/28/2007Choke Size:
Formation Name:VERMEJO COALCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/1/2007
Treatment Summary:Acidized w/1,250 gals 15% HCl acid. Frac'd w/88,974 gals 20# Delta 140 w/Sandwedge OS carrying 10,700# 16/30 Brady sd & 180,457# 12/20 Brady sd.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation VRMJ.
Perforation Data:
Interval Top:1862 ft.# Of Holes:44
Interval Bottom:2112 ft.Hole Size:0.45 in.

Formation RT-VJ                   Formation Classification:  GW                   Status:  PR - 5/1/2007                  Interval Top: 834 ft.    Interval Bottom: 2112 ft.

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:4/28/2007Choke Size:
Formation Name:RATON-VERMEJO COALSCommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:2.875 in.Tubing Setting Depth:2234 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/1/2007Test Method:Pumping
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 101
BTU_GAS 999
CALC_BBLS_H2O 101
CALC_MCF_GAS 22
CASING_PRESS 14
MCF_GAS 22
TUBING_PRESS 2
Perforation Data:
Interval Top:834 ft.# Of Holes:92
Interval Bottom:2112 ft.Hole Size:0.45 in.

Formation RTON                     Formation Classification:  GW                     Status:  CM - 12/13/2011                Interval Top: 834 ft.    Interval Bottom: 1141 ft.

 Completed Information for Formation RATON COAL
1st Production Date:4/28/2007Choke Size:
Formation Name:RATON COALCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/1/2007
Treatment Summary:Acidized w/1,750 gals 15% HCl acid. Frac'd w/93,430 gals 20# Delta 140 w/Sandwedge OS carrying 17,000# 16/30 Brady sd & 222,229# 12/20 Brady sd.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RTON.
Perforation Data:
Interval Top:834 ft.# Of Holes:48
Interval Bottom:1141 ft.Hole Size:0.45 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)12802
GOR
GOR DeterminationMCFE
Average BOE per Day6.055
Average MCFE per Day35.106

 Federal Financial Assurance  i

 Tribal Well  i No
