COGIS - WELL SCOUT CARD

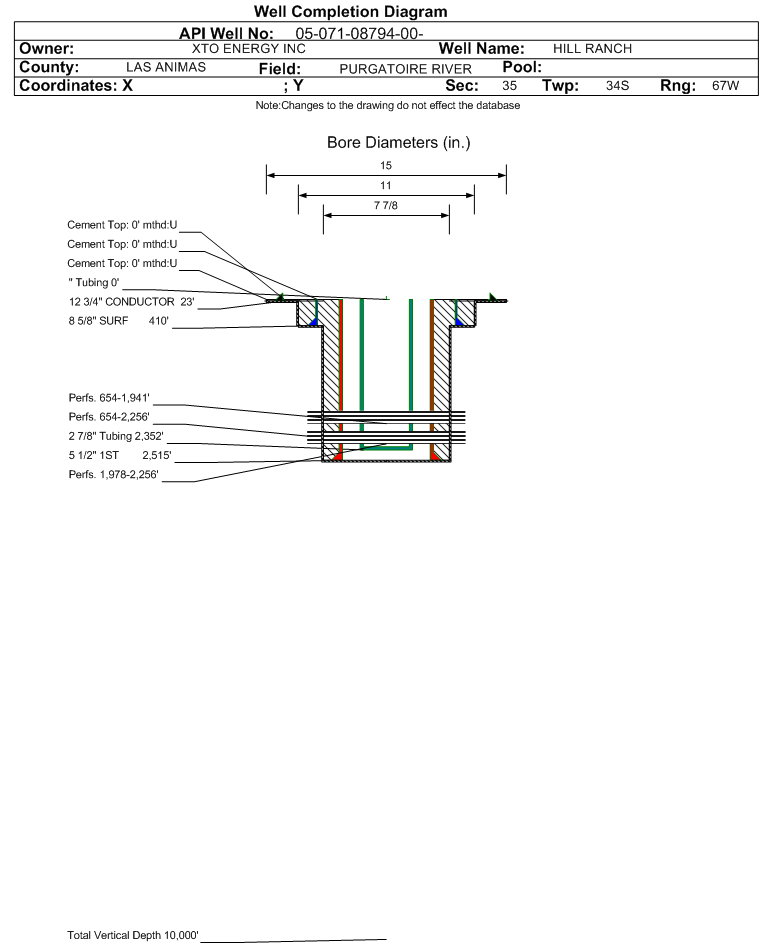

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-08794		Well Classification: CBM Status: PR - 1/24/2007
Well Name/No:HILL RANCH #35-15
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/24/2007
FacilityID:284775LocationID:308908
County:LAS ANIMAS #071Location:SWSE 35 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:7960 ft.
Basin:RATON BASIN
Planned Location:778FSL  2586 FELLat/Long: 37.035596 / -104.856772Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.035637 / -104.856735Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 1/24/2007             Measured TD: 2545 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 1/24/2007
Wellbore Permit
Permit #:20061551 Expiration Date:5/17/2007
Proposed Depth/Form:2475 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 1830 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: 320, Top: 0 ft., Bottom: 1830 ft.
Wellbore Completed
Completion Date:9/10/2006
Spud Date:9/8/2006Spud Date Is:ACTUAL
Measured TD:2545 ft.Measured PB depth:2468 ft.
True Vertical TD:True Vertical PB depth:
Log Types:COMP DENSITY/ NEUTRON W/CALIPER/ DUAL IND LOG
Casing:String Type: CONDUCTOR, Hole Size: 15 in., Size: 12.75 in., Top: , Depth: 23 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 8, Top: 0 ft., Bottom: 23 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: , Depth: 410 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 221, Top: 0 ft., Bottom: 410 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 2515 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 752, Top: 0 ft., Bottom: 2515 ft., Determination Method: CBL
Additional Cement:String Type: SURF , Top: 0 ft., Depth: 2050 ft., Bottom: 2152 ft., Sacks: 375, Method: SQUEEZE
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.1877 ft.NN
VERMEJO COAL1953 ft.2279 ft.NN
TRINIDAD2279 ft.2531 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  CM - 12/19/2011                Interval Top: 1978 ft.    Interval Bottom: 2256 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:11/22/2006Choke Size:
Formation Name:VERMEJO COALCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/30/2006
Treatment Summary:Acidized w/1,000 gals 15% HCl acid. Frac'd w/52,000 gals 20# Delta 140 w/Sandwedge NT carrying 99,545# 16/30 Brady sd.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation VRMJ.
Perforation Data:
Interval Top:1978 ft.# Of Holes:24
Interval Bottom:2256 ft.Hole Size:0.45 in.

Formation RT-VJ                   Formation Classification:  GW                   Status:  PR - 11/24/2006                Interval Top: 654 ft.    Interval Bottom: 2256 ft.

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:11/22/2006Choke Size:
Formation Name:RATON-VERMEJO COALSCommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:2.875 in.Tubing Setting Depth:2352 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/24/2006Test Method:Pumping
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 99
BTU_GAS 1008
CALC_BBLS_H2O 99
CALC_MCF_GAS 64
CASING_PRESS 5
MCF_GAS 64
TUBING_PRESS 4
Perforation Data:
Interval Top:654 ft.# Of Holes:103
Interval Bottom:2256 ft.Hole Size:0.45 in.

Formation RTON                     Formation Classification:  GW                     Status:  CM - 12/19/2011                Interval Top: 654 ft.    Interval Bottom: 1941 ft.

 Completed Information for Formation RATON COAL
1st Production Date:11/22/2006Choke Size:
Formation Name:RATON COALCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/30/2006
Treatment Summary:Acidized w/2,000 gals 15% HCl acid. Frac'd w/169,734 gals 20# Delta 140 w/Sandwedge NT carrying 17,900# 16/30 Brady sd & 324,203# 12/20 Brady sd & 23,593# 12/20 SLC sd w/Superset W.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RTON.
Perforation Data:
Interval Top:654 ft.# Of Holes:79
Interval Bottom:1941 ft.Hole Size:0.4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)21107
GOR
GOR DeterminationMCFE
Average BOE per Day9.951
Average MCFE per Day57.685

 Federal Financial Assurance  i

 Tribal Well  i No
