Wellbore #00 Wellbore Classification: CBM Status: PR - 12/9/2011 Measured TD: 2218 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 12/9/2011 | | Wellbore Permit | | | Permit #: | 20061554 | Expiration Date: | 5/17/2007 | | Proposed Depth/Form: | 2175 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 1490 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 260, Top: 0 ft., Bottom: 1490 ft. |
| | |

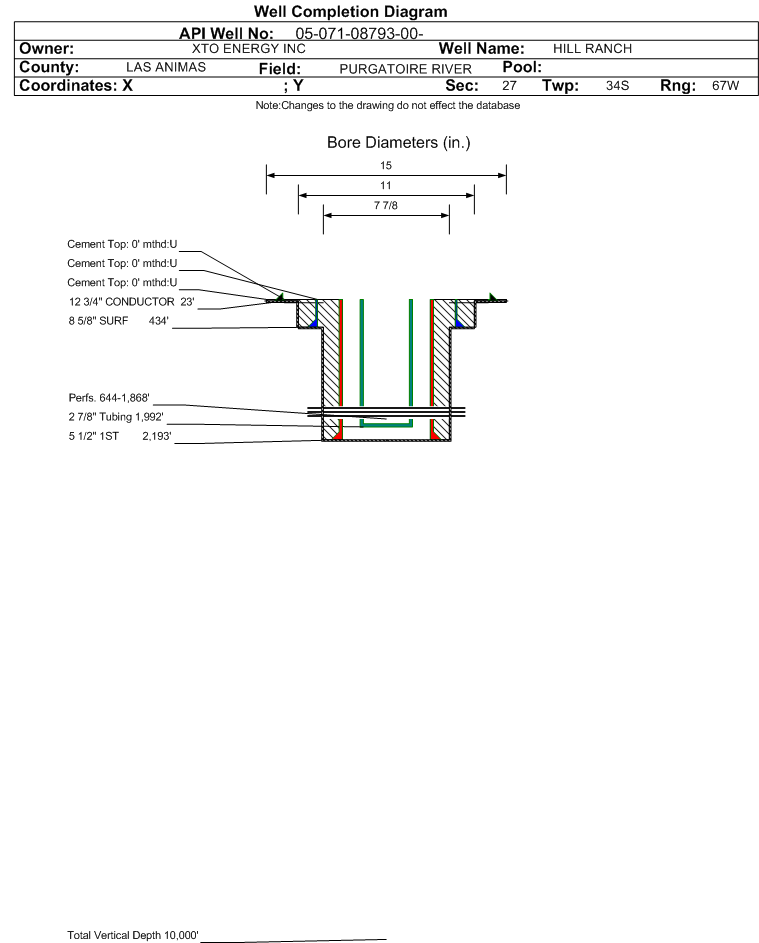

| Wellbore Completed | | Completion Date: | 7/25/2006 | | Spud Date: | 7/23/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 2218 ft. | Measured PB depth: | 2192 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CBL; DUAL IND, COMP DENSITY/NEUTRON W/CALIPER | | Casing: | String Type: CONDUCTOR, Hole Size: 15 in., Size: 12.75 in., Top: , Depth: 23 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 10, Top: 0 ft., Bottom: 53 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: , Depth: 434 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 200, Top: 0 ft., Bottom: 434 ft., Determination Method: CBL | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 2193 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 2193 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1527 ft. | N | N | | VERMEJO COAL | 1638 ft. | 1957 ft. | N | N | | TRINIDAD | 1957 ft. | 2218 ft. | N | N |
Formation RT-VJ Formation Classification: GW Status: PR - 12/9/2011 Interval Top: 644 ft. Interval Bottom: 1868 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | 10/24/2006 | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/15/2006 | | Treatment Summary: | ACIDIZED W/3200 GAKS 15% HCI ACID. FRA'D W/224,722 GALS 20# DELTA 140 W/SANDWEDGEA NT CARRYING 154,415# 16/30, 335,499# 12/20 BRADY SAND AND 31,194# 12/20 BRADY SAND W/SUPER LC & SUPERSET W. |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 1992 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/27/2006 | Test Method: | PUMPING | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 123 | | BTU_GAS | 1016 | | CALC_BBLS_H2O | 123 | | CALC_MCF_GAS | 608 | | CASING_PRESS | 8 | | GRAVITY_OIL | 1 | | MCF_GAS | 608 | | TUBING_PRESS | 4 |
| | Perforation Data: | | Interval Top: | 644 ft. | # Of Holes: | 68 | | Interval Bottom: | 1868 ft. | Hole Size: | 0.46 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 24808 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 11.722 |
| Average MCFE per Day | 67.957 |
| Federal Financial Assurance | i | |
|
|
