Wellbore #00 Wellbore Classification: CBM Status: PR - 12/23/2006 Measured TD: 2448 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 12/23/2006 | | Wellbore Permit | | | Permit #: | 20061549 | Expiration Date: | 5/17/2007 | | Proposed Depth/Form: | 2400 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 1700 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 300, Top: 0 ft., Bottom: 1700 ft. |
| | |

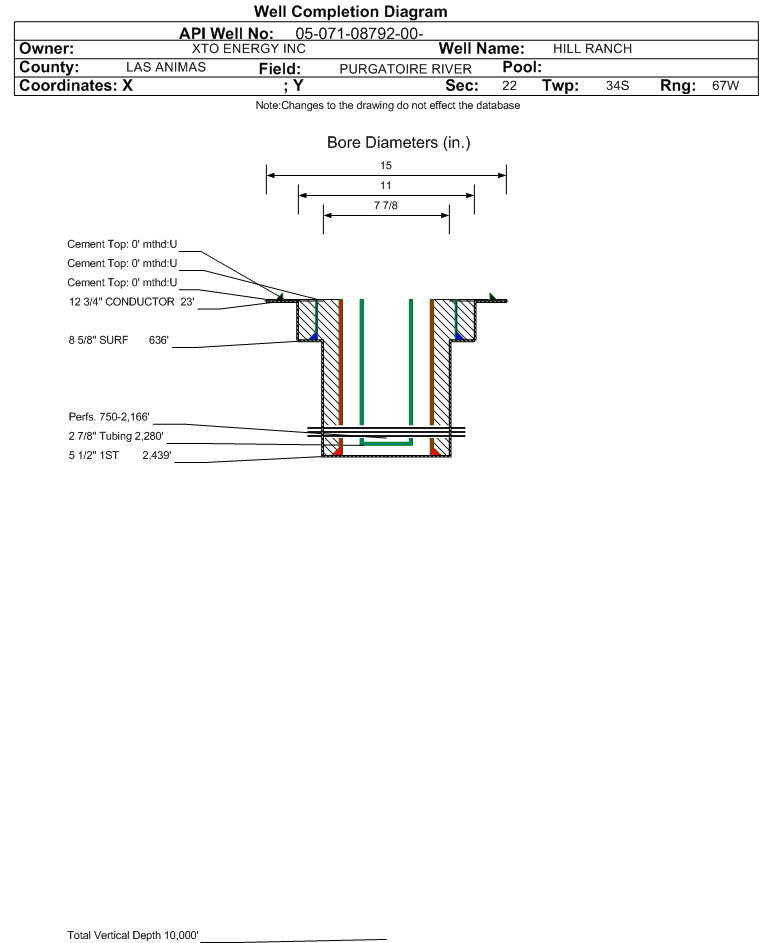

| Wellbore Completed | | Completion Date: | 9/19/2006 | | Spud Date: | 9/17/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 2448 ft. | Measured PB depth: | 2393 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | COMP.DENSITY;NEUTRON W/CALIPER;DUAL IND LOG | | Casing: | String Type: CONDUCTOR, Hole Size: 15 in., Size: 12.75 in., Top: , Depth: 23 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 10, Top: 0 ft., Bottom: 23 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: , Depth: 636 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 281, Top: 0 ft., Bottom: 636 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 2439 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 608, Top: 0 ft., Bottom: 2439 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1757 ft. | N | N | | VERMEJO COAL | 1860 ft. | 2182 ft. | N | N | | TRINIDAD | 2182 ft. | 2448 ft. | N | N |
Formation RT-VJ Formation Classification: GW Status: PR - 12/23/2006 Interval Top: 750 ft. Interval Bottom: 2166 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | 12/19/2006 | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/25/2006 | | Treatment Summary: | ACIDIZED W/ 1000 GALS 15% HCL ACID. FRAC'D W/232,336 GALS 20# DELTA 140 RAC FLUID CARRYING 131,162# 16/30 & 350,595# 12/20 BRADY SAND, & 26,000# 12/20 SUPER LC BRADY SAND. |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 2280 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/23/2006 | Test Method: | PUMPING | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 94 | | BBLS_OIL | 0 | | BTU_GAS | 1010 | | CALC_BBLS_H2O | 94 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 137 | | CASING_PRESS | 12 | | GRAVITY_OIL | 1 | | MCF_GAS | 137 | | TUBING_PRESS | 2 |
| | Perforation Data: | | Interval Top: | 750 ft. | # Of Holes: | 82 | | Interval Bottom: | 2166 ft. | Hole Size: | 0.4 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 26180 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 12.363 |
| Average MCFE per Day | 71.701 |
| Federal Financial Assurance | i | |
|
|
