Wellbore #00 Wellbore Classification: CBM Status: PR - 3/1/2021 Measured TD: 2610 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 3/1/2021 | | Wellbore Permit | | | Permit #: | 20061403 | Expiration Date: | 5/11/2007 | | Proposed Depth/Form: | 2490 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | STATE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 1804 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 140, Top: 0 ft., Bottom: 1804 ft. |
| | |

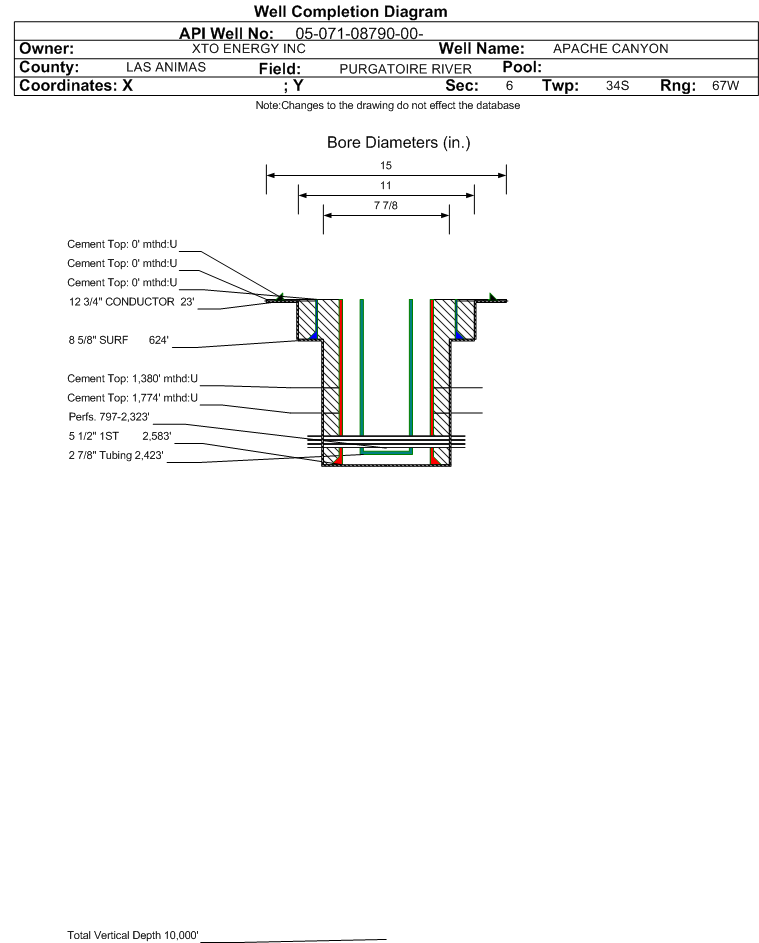

| Wellbore Completed | | Completion Date: | 7/21/2006 | | Spud Date: | 7/17/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 2610 ft. | Measured PB depth: | 2582 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CBL, CD/CNL, DIL | | Casing: | String Type: CONDUCTOR, Hole Size: 15 in., Size: 12.75 in., Top: , Depth: 23 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 11, Top: 0 ft., Bottom: 23 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: , Depth: 624 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 423, Top: 0 ft., Bottom: 624 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 2583 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 155, Top: 1774 ft., Bottom: 2583 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 1774 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 280, Top: 1380 ft., Bottom: 1774 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 1350 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 190, Top: 0 ft., Bottom: 1380 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1844 ft. | N | N | | VERMEJO COAL | 1954 ft. | 2328 ft. | N | N | | TRINIDAD | 2328 ft. | | N | N |
Formation RT-VJ Formation Classification: GW Status: PR - 3/1/2021 Interval Top: 797 ft. Interval Bottom: 2323 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | 10/16/2006 | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/11/2006 | | Treatment Summary: | ACIDIZED W/3700 GALS 15% HCI ACID. FRAC'D W/253,262 GALS 20# DELTA 140 W/EXPEDDITE & SANDWEDGE NT CARRYING 21,400# 16/30 BRADY SAND AND 468,666 12/20 BRADY SAND |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 2423 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/18/2006 | Test Method: | PUMPING | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 82 | | BTU_GAS | 1002 | | CALC_BBLS_H2O | 82 | | CASING_PRESS | 7 | | TUBING_PRESS | 3 |
| | Perforation Data: | | Interval Top: | 797 ft. | # Of Holes: | 105 | | Interval Bottom: | 2323 ft. | Hole Size: | 0.4 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 13223 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 6.240 |
| Average MCFE per Day | 36.191 |
| Federal Financial Assurance | i | |
|
|
