Wellbore #00 Wellbore Classification: CBM Status: PR - 2/7/2006 Measured TD: 2635 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 2/7/2006 | | Wellbore Permit | | | Permit #: | 20060648 | Expiration Date: | 4/12/2007 | | Proposed Depth/Form: | 2550 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | STATE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: |
| | |

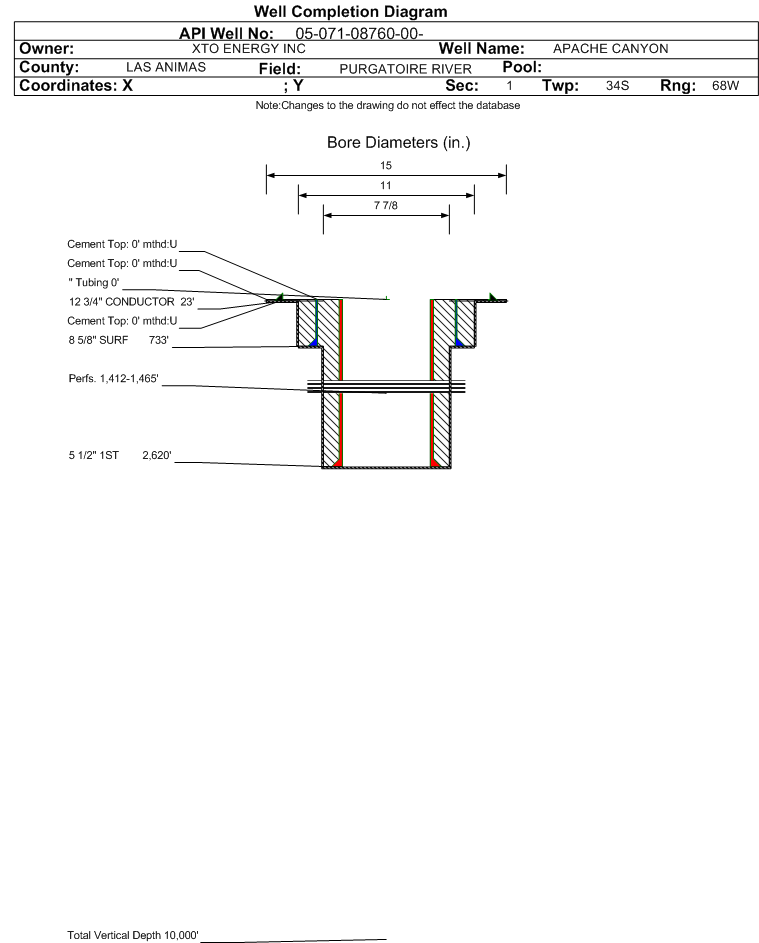

| Wellbore Completed | | Completion Date: | 8/1/2006 | | Spud Date: | 7/28/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 2635 ft. | Measured PB depth: | 2619 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | DUAL INDUCTION, COMP DENSITY, NEUTRON W/CALIP | | Casing: | String Type: CONDUCTOR, Hole Size: 15 in., Size: 12.75 in., Top: 0 ft., Depth: 23 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 18, Top: 0 ft., Bottom: 23 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 733 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 324, Top: 0 ft., Bottom: 733 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2620 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 410, Top: 0 ft., Bottom: 2620 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1922 ft. | N | N | | VERMEJO COAL | 2007 ft. | 2359 ft. | N | N | | TRINIDAD | 2359 ft. | 2633 ft. | N | N |
Formation RT-VJ Formation Classification: GW Status: PR - 2/7/2006 Interval Top: 1412 ft. Interval Bottom: 1465 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | 9/30/2006 | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/28/2006 | | Treatment Summary: | PPD 212 SX TRINIDAD PROD BLEND CMT MXD@13# GEL.PPD CMT W/NO RETS OF SURF.STING OUT OF CICR.RAN GR/CBL/CCCL. TIH W/5 1/2"CICR. ESTB INJEC RATE. PPD 40 BBL GEL W/BARACARB &N-SEAL. PPD 250 SX TRINIDAD PROD BLEND CMT MXD@ 13#GAL. PPD CMT@2-3 BPM.(CONT) |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 73 | | BBLS_OIL | 0 | | BTU_GAS | 1020 | | CALC_BBLS_H2O | 73 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 0 | | CASING_PRESS | 5 | | GRAVITY_OIL | 1 | | MCF_GAS | 0 | | TUBING_PRESS | 5 |
| | Perforation Data: | | Interval Top: | 1412 ft. | # Of Holes: | 8 | | Interval Bottom: | 1465 ft. | Hole Size: | 0.46 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 11549 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 5.456 |
| Average MCFE per Day | 31.650 |
| Federal Financial Assurance | i | |
|
|
