COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-08749		Well Classification: CBM Status: PR - 8/31/2006
Well Name/No:GOLDEN EAGLE #28-14
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/31/2006
FacilityID:284137LocationID:311967
County:LAS ANIMAS #071Location:SESW 28 33S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:7223 ft.
Basin:RATON BASIN
Planned Location:989FSL  2409 FWLLat/Long: 37.138896 / -104.892731Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.138851 / -104.892768Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 8/31/2006             Measured TD: 1915 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 8/31/2006
Wellbore Permit
Permit #:20060642 Expiration Date:4/6/2007
Proposed Depth/Form:1875 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:STATE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:N/A
Spud Date:6/19/2006Spud Date Is:ACTUAL
Measured TD:1915 ft.Measured PB depth:1822 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CBL/GR/CCL (4 RUNS), GR/NEUTRON

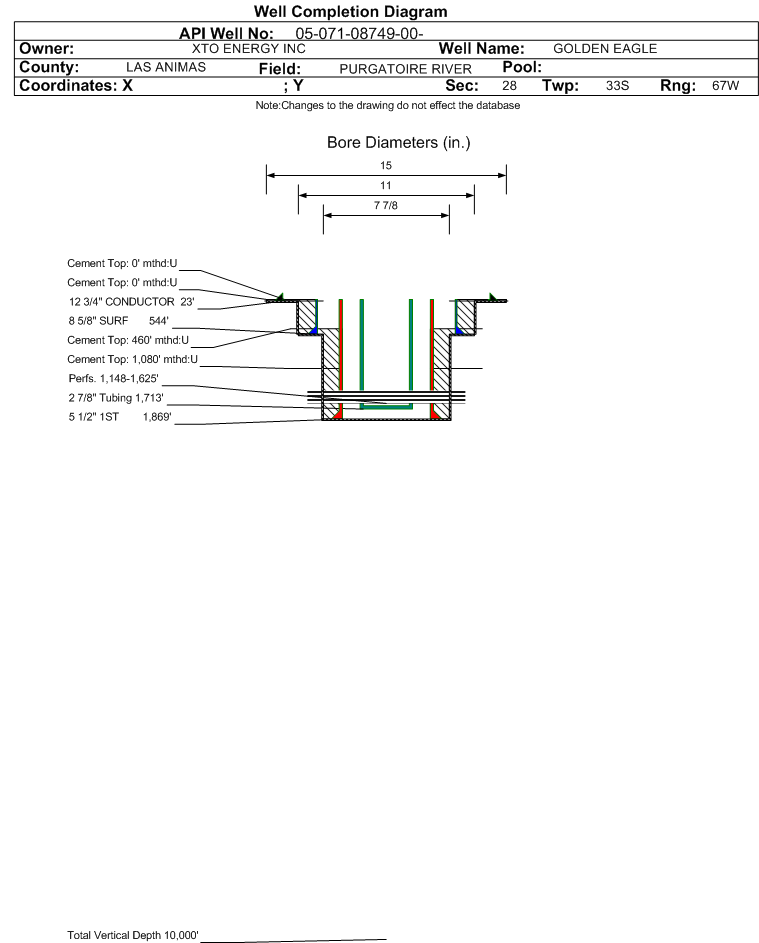

Casing:String Type: CONDUCTOR, Hole Size: 15 in., Size: 12.75 in., Top: , Depth: 23 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 11, Top: 0 ft., Bottom: 23 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: , Depth: 544 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 311, Top: 0 ft., Bottom: 544 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 1869 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 1080 ft., Bottom: 1869 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 1075 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 458, Top: 460 ft., Bottom: 1080 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON SAND0 ft.1190 ft.NN
VERMEJO COAL1258 ft.1644 ft.NN
TRINIDAD1644 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  PR - 8/31/2006                 Interval Top: 1148 ft.    Interval Bottom: 1625 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:8/30/2006Choke Size:
Formation Name:VERMEJO COALCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/19/2006
Treatment Summary:SEE SCANNED DOC.
Tubing Size:2.875 in.Tubing Setting Depth:1713 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/31/2006Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 100
BBLS_OIL 0
BTU_GAS 1004
CALC_BBLS_H2O 100
CALC_BBLS_OIL 0
CALC_MCF_GAS 300
CASING_PRESS 132
GRAVITY_OIL 1
MCF_GAS 300
TUBING_PRESS 6
Perforation Data:
Interval Top:1148 ft.# Of Holes:57
Interval Bottom:1625 ft.Hole Size:0.4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)20702
GOR
GOR DeterminationMCFE
Average BOE per Day9.776
Average MCFE per Day56.689

 Federal Financial Assurance  i

 Tribal Well  i No
