Wellbore #00 Wellbore Classification: GW Status: PR - 9/1/2017 Measured TD: 2500 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 9/1/2017 | | Wellbore Permit | | | Permit #: | 20060639 | Expiration Date: | 4/5/2007 | | Proposed Depth/Form: | 2400 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | STATE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: |
| | |

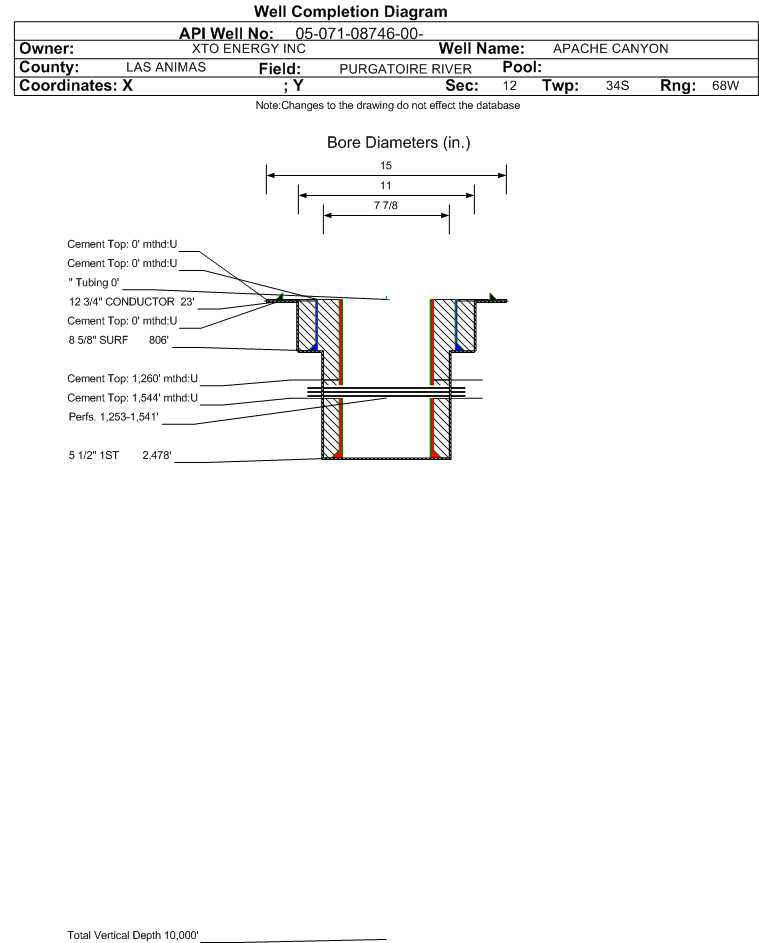

| Wellbore Completed | | Completion Date: | 8/6/2006 | | Spud Date: | 8/3/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 2500 ft. | Measured PB depth: | 2429 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | DUAL INDUCTION; COMP DENSITY/NEUTRON W/CALIPER; CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 15 in., Size: 12.75 in., Top: 0 ft., Depth: 23 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 8, Top: , Bottom: 23 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 806 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 528, Top: 0 ft., Bottom: 806 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2478 ft., Weight: 15.5 , Citings Type: ACTUAL | | Cement: | Sacks: 371, Top: 1544 ft., Bottom: 2478 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 1541 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 200, Top: 1260 ft., Bottom: 1541 ft., Determination Method: CALC | | Casing: | String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 1254 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 175, Top: 0 ft., Bottom: 1254 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON SAND | 0 ft. | 1800 ft. | N | N | | VERMEJO COAL | 1888 ft. | 2245 ft. | N | N | | TRINIDAD | 2245 ft. | 2496 ft. | N | N |
Formation RT-VJ Formation Classification: GW Status: PR - 9/1/2017 Interval Top: 1253 ft. Interval Bottom: 1541 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | 11/4/2006 | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/21/2006 | | Treatment Summary: | PPD 375 SX TRINIDAD PROD BLEND CMT MIXED@ 13# GAL. PPD @2-3 BPM &45 &310 PSIG W/NO RETURNS TO SURF. DISPL CMT W/3 & 4 BPW @25 PSIG & 200 PSIG. CIRC 10 SX CMT TO SURF. STING OUT OF CICR. TGD CICR @ 1182'. DO 1' CMT TO CICR @ 1182'. (NEXT PAGE) |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 84 | | BBLS_OIL | 0 | | BTU_GAS | 1009 | | CALC_BBLS_H2O | 84 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1 | | CASING_PRESS | 12 | | GRAVITY_OIL | 1 | | MCF_GAS | 1 | | TUBING_PRESS | 3 |
| | Perforation Data: | | Interval Top: | 1253 ft. | # Of Holes: | 8 | | Interval Bottom: | 1541 ft. | Hole Size: | 0.46 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 19539 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 9.239 |
| Average MCFE per Day | 53.566 |
| Federal Financial Assurance | i | |
|
|
