COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-08686		Well Classification: CBM Status: PR - 7/4/2006
Well Name/No:APACHE CANYON #23-16
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/4/2006
FacilityID:282647LocationID:308820
County:LAS ANIMAS #071Location:SESE 23 34S68W 6
Field:PURGATOIRE RIVER - #70830Elevation:7704 ft.
Planned Location:563FSL  519 FELLat/Long: 37.064026 / -104.957536Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.063992 / -104.956985Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 7/4/2006             Measured TD: 1738 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 7/4/2006
Wellbore Permit
Permit #:20054824 Expiration Date:1/12/2007
Proposed Depth/Form:1625 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:STATE
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:3/7/2006
Spud Date:3/5/2006Spud Date Is:ACTUAL
Measured TD:1738 ft.Measured PB depth:1640 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CBL, DIL, CD/CNL

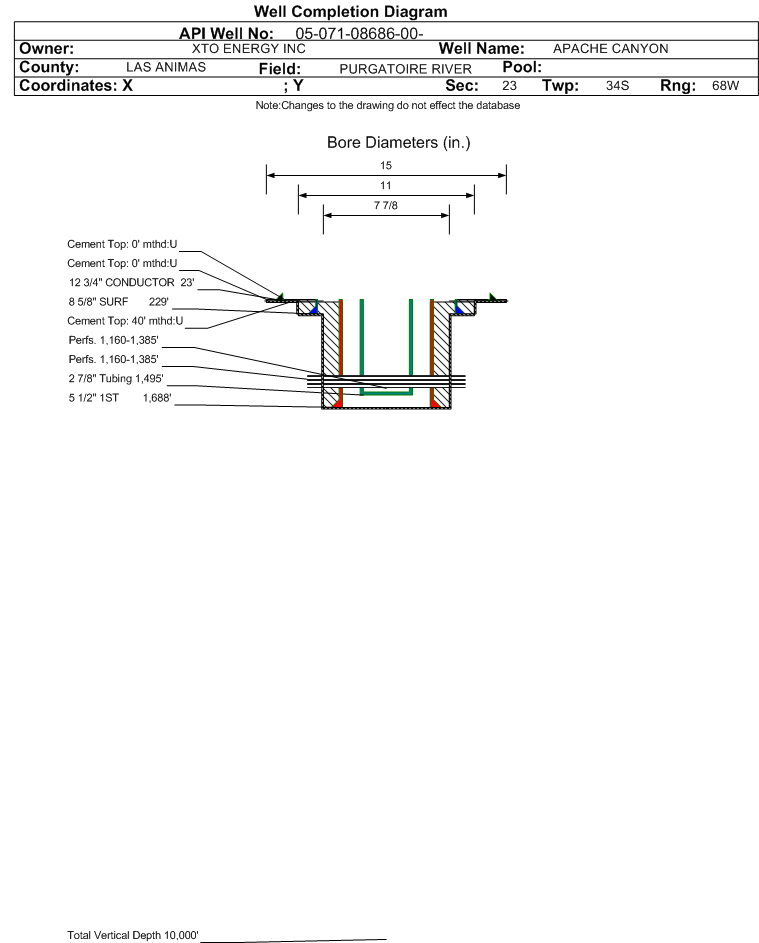

Casing:String Type: CONDUCTOR, Hole Size: 15 in., Size: 12.75 in., Top: 0 ft., Depth: 23 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 9, Top: 0 ft., Bottom: 23 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 229 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 152, Top: 0 ft., Bottom: 229 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 1688 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 290, Top: 40 ft., Bottom: 1688 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.1060 ft.NN
RATON SAND1060 ft.1143 ft.NN
VERMEJO COAL1143 ft.1442 ft.NN
TRINIDAD1442 ft.1735 ft.NN

Formation RT-VJ                   Formation Classification:  GW                   Status:  PR - 7/4/2006                  Interval Top: 1160 ft.    Interval Bottom: 1385 ft.

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:7/4/2006Choke Size:
Formation Name:RATON-VERMEJO COALSCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/7/2006
Treatment Summary:ACIDIZED W/2100 GALS 15% HCI ACID. FRAC'D W/ 107,820 GALS 20# DELTA 140 W/SANDWEDGE NT CARRYING 99,585 16/30 SAND & 168,836# 12/20 BRADY SAND.
Tubing Size:2.875 in.Tubing Setting Depth:1495 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/4/2006Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 79
BBLS_OIL 0
BTU_GAS 1121
CALC_BBLS_H2O 79
CALC_BBLS_OIL 0
CALC_MCF_GAS 1
CASING_PRESS 5
GRAVITY_OIL 1
MCF_GAS 1
TUBING_PRESS 2
Perforation Data:
Interval Top:1160 ft.# Of Holes:54
Interval Bottom:1385 ft.Hole Size:0.4 in.

Formation VRMJ                     Formation Classification:  GW                     Status:  CM - 7/4/2006                  Interval Top: 1160 ft.    Interval Bottom: 1385 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:N/AChoke Size:
Formation Name:VERMEJO COALCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/8/2006
Treatment Summary:ACIDIED W/2100 GALS 15% HCI ACID. FRAC'D W/107,820 GALS 20# DELTA 140 W/SANDWEDGE NT CARRYING 99,5853 16/30 AND 168,836# 12/20 BRADY SAND.
Tubing Size:2.875 in.Tubing Setting Depth:1495 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/4/2006Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 79
BBLS_OIL 0
BTU_GAS 1121
CALC_BBLS_H2O 79
CALC_BBLS_OIL 0
CALC_MCF_GAS 1
CASING_PRESS 5
GRAVITY_OIL 1
MCF_GAS 1
TUBING_PRESS 2
Perforation Data:
Interval Top:1160 ft.# Of Holes:54
Interval Bottom:1385 ft.Hole Size:0.4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)22967
GOR
GOR DeterminationMCFE
Average BOE per Day10.855
Average MCFE per Day62.922

 Federal Financial Assurance  i

 Tribal Well  i No
