Wellbore #00 Wellbore Classification: CBM Status: PR - 11/3/2005 Measured TD: 2150 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 11/3/2005 | | Wellbore Permit | | | Permit #: | 20054307 | Expiration Date: | 12/14/2006 | | Proposed Depth/Form: | 1962 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | STATE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: |
| | |

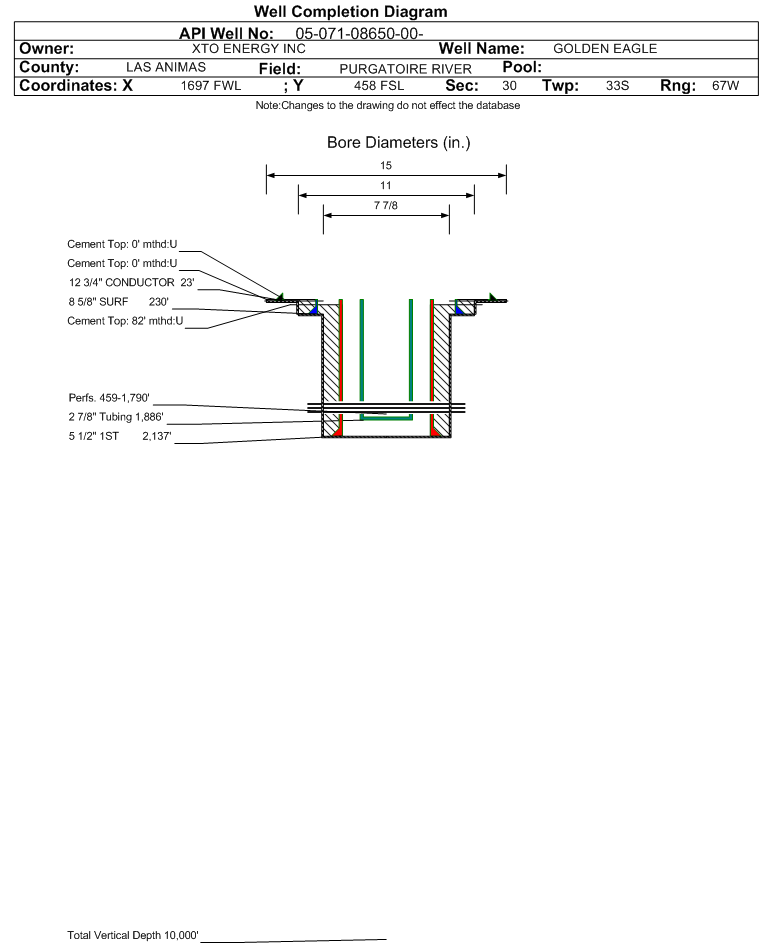

| Wellbore Completed | | Completion Date: | 2/21/2006 | | Spud Date: | 2/18/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 2150 ft. | Measured PB depth: | 2013 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | GR/CCL/CBL/DI/CDN | | Casing: | String Type: CONDUCTOR, Hole Size: 15 in., Size: 12.75 in., Top: , Depth: 23 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 9, Top: 0 ft., Bottom: 23 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: , Depth: 230 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 135, Top: 0 ft., Bottom: 230 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 2137 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 82 ft., Bottom: 2141 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1371 ft. | N | N | | VERMEJO COAL | 1457 ft. | 1829 ft. | N | N | | TRINIDAD | 1830 ft. | | N | N |
Formation RT-VJ Formation Classification: GW Status: PR - 7/1/2011 Interval Top: 459 ft. Interval Bottom: 1790 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | 8/10/2006 | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/28/2006 | | Treatment Summary: | ACIDIZED W/3700 GALS 15% HCI ACID. FRAC W/233,401 GALS 20# DELTA 140 CARRYING 223,200# 16/30 AND 213,300# 12/20 BRADY AD. |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 1886 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/11/2006 | Test Method: | PUMPING | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 92 | | BBLS_OIL | 0 | | BTU_GAS | 1005 | | CALC_BBLS_H2O | 92 | | CASING_PRESS | 2 | | GRAVITY_OIL | 561 | | MCF_GAS | 0 | | TUBING_PRESS | 1 |
| | Perforation Data: | | Interval Top: | 459 ft. | # Of Holes: | | | Interval Bottom: | 1790 ft. | Hole Size: | 0.4 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 10817 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 5.099 |
| Average MCFE per Day | 29.590 |
| Federal Financial Assurance | i | |
|
|
