COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-08599		Well Classification: CBM Status: PR - 10/1/2025
Well Name/No:GOLDEN EAGLE #20-4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/1/2025
FacilityID:280920LocationID:333596
County:LAS ANIMAS #071Location:NWNW 20 33S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:7697 ft.
Basin:RATON BASIN
Planned Location:702FNL  487 FWLLat/Long: 37.163182 / -104.918551Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 37.163410 / -104.917960Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 10/1/2025             Measured TD: 2575 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 10/1/2025
Wellbore Permit
Permit #:20053179 Expiration Date:10/25/2006
Proposed Depth/Form:2450 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:12/6/2005
Spud Date:12/3/2005Spud Date Is:ACTUAL
Measured TD:2575 ft.Measured PB depth:2497 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CBL, TEMP, DUAL INDUCTION, COMPENSATED DENSITY/NEUTRON

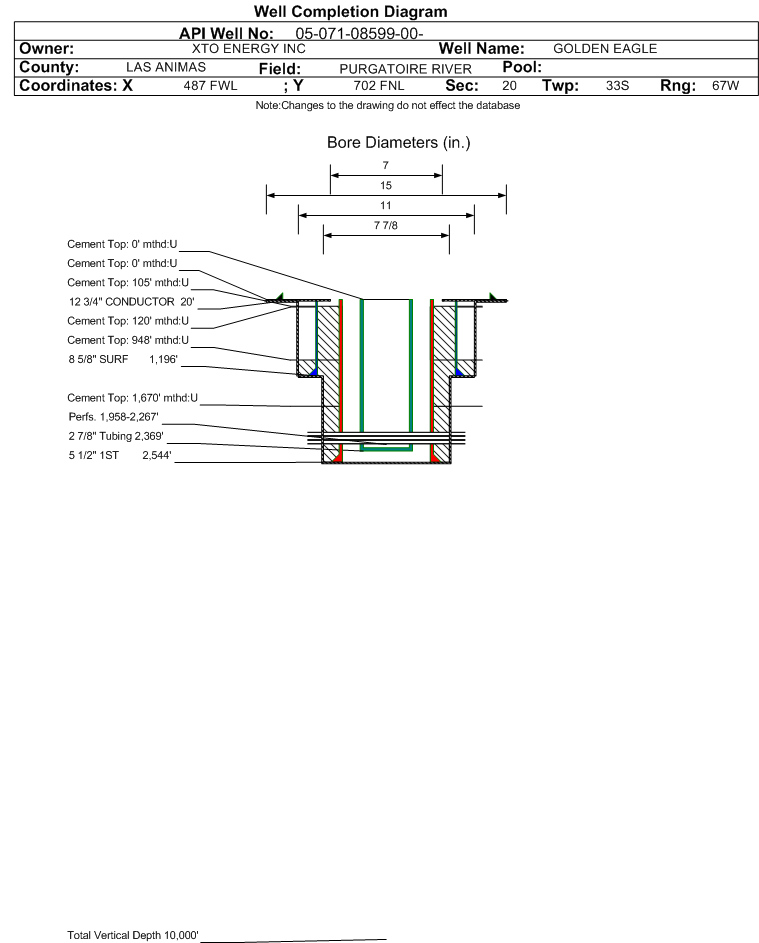

Casing:String Type: CONDUCTOR, Hole Size: 15 in., Size: 12.75 in., Top: , Depth: 20 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 7, Top: 0 ft., Bottom: 20 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: , Depth: 1196 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 95, Top: 948 ft., Bottom: 1196 ft., Determination Method: CBL
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 2544 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 160, Top: 1670 ft., Bottom: 2544 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 948 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 436, Top: 105 ft., Bottom: 948 ft., Determination Method: CBL
Casing:String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 1670 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 120 ft., Bottom: 1670 ft., Determination Method: CBL
Casing:String Type: 2ND, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method: CALC
Casing:String Type: 3RD, Hole Size: 7 in., Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.1876 ft.NN
VERMEJO COAL1877 ft.2295 ft.NN
TRINIDAD2296 ft.2571 ft.NN

Formation RT-VJ                   Formation Classification:  GW                   Status:  PR - 10/1/2025                 Interval Top: 1958 ft.    Interval Bottom: 2267 ft.

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:5/1/2006Choke Size:
Formation Name:RATON-VERMEJO COALSCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/11/2006
Treatment Summary:ACIDIZED W/ 1900 GALS 15% HCI ACID. FRAC'D W/ 184,540 GALS 20# DELTA 140 W/ SANDWEDGE NT CARRYING 18,877# 16/30 & 306,030# 12/20 BRADY SAND.
Tubing Size:2.875 in.Tubing Setting Depth:2369 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/3/2006Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 103
BBLS_OIL 0
BTU_GAS 1006
CALC_BBLS_H2O 103
CALC_BBLS_OIL 0
CALC_MCF_GAS 10
CASING_PRESS 3
GRAVITY_OIL 1
MCF_GAS 10
TUBING_PRESS 2
Perforation Data:
Interval Top:1958 ft.# Of Holes:52
Interval Bottom:2267 ft.Hole Size:0.4 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)409
GOR
GOR DeterminationMCFE
Average BOE per Day0.191
Average MCFE per Day1.114

 Federal Financial Assurance  i

 Tribal Well  i No
