Wellbore #00 Wellbore Classification: CBM Status: PR - 7/1/2011 Measured TD: 1800 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 7/1/2011 | | Wellbore Permit | | | Permit #: | 20052313 | Expiration Date: | 9/15/2006 | | Proposed Depth/Form: | 1720 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: |
| | |

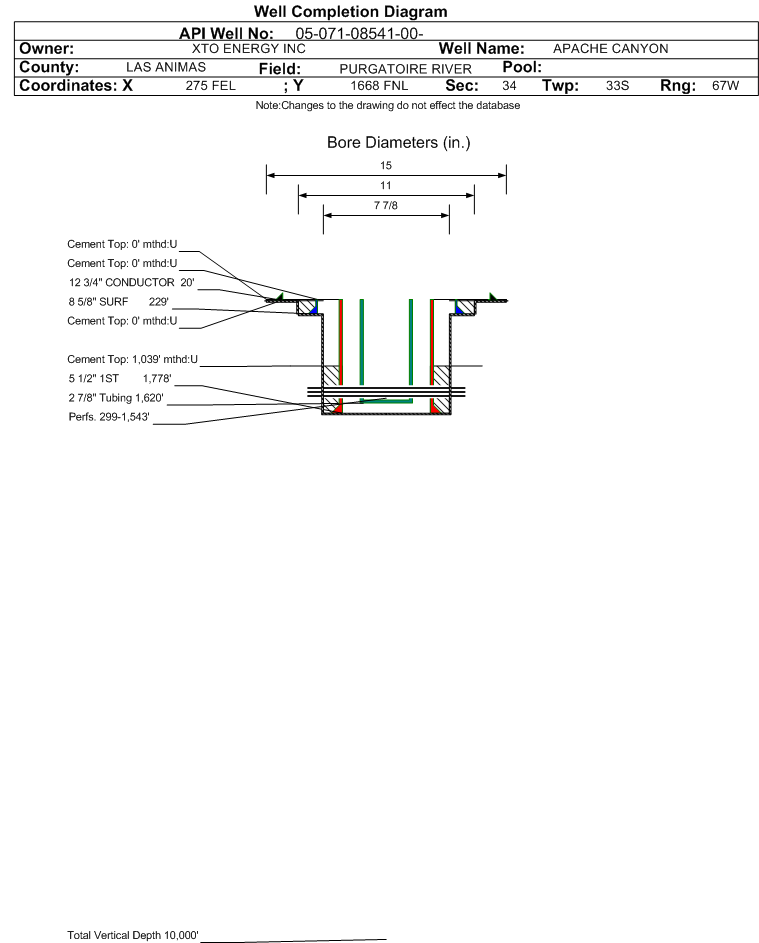

| Wellbore Completed | | Completion Date: | 11/21/2005 | | Spud Date: | 11/20/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 1800 ft. | Measured PB depth: | 1730 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | TEMP,AIT/GR,CNL/TLD, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 15 in., Size: 12.75 in., Top: , Depth: 20 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 7, Top: 0 ft., Bottom: 20 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: , Depth: 229 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 101, Top: 0 ft., Bottom: 229 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 1778 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 315, Top: 1039 ft., Bottom: 1778 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1058 ft. | N | N | | VERMEJO COAL | 1168 ft. | 1549 ft. | N | N | | TRINIDAD | 1550 ft. | 1796 ft. | N | N |
Formation RT-VJ Formation Classification: GW Status: PR - 7/1/2012 Interval Top: 299 ft. Interval Bottom: 1543 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/6/2006 | | Treatment Summary: | ACIDIZED W/2300 GALS 15% HCI ACID. FRAC'D W/294,818 GALS 20# DELTA 140 W/SANDWEDGE NT CARRYING 26,000# 16/30 AND 495,848# 12/20 BRADY SAND. |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 1620 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/26/2006 | Test Method: | PUMPING | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 121 | | BBLS_OIL | 0 | | BTU_GAS | 1003 | | CALC_BBLS_H2O | 121 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 0 | | CASING_PRESS | 11 | | GRAVITY_OIL | 1 | | MCF_GAS | 0 | | TUBING_PRESS | 6 |
| | Perforation Data: | | Interval Top: | 299 ft. | # Of Holes: | 93 | | Interval Bottom: | 1543 ft. | Hole Size: | 0.4 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 42806 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 20.223 |
| Average MCFE per Day | 117.297 |
