Wellbore #00 Wellbore Classification: CBM Status: PR - 5/1/2021 Measured TD: 2340 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 5/1/2021 | | Wellbore Permit | | | Permit #: | 20052411 | Expiration Date: | 8/10/2006 | | Proposed Depth/Form: | 2100 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | STATE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: |
| | |

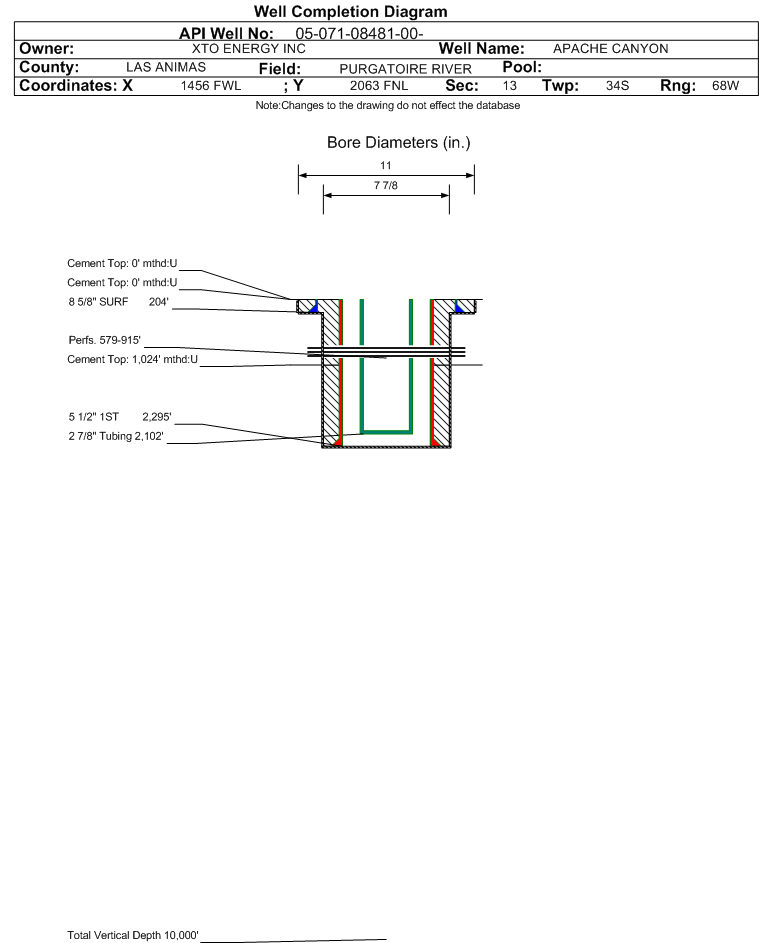

| Wellbore Completed | | Completion Date: | 9/24/2005 | | Spud Date: | 8/20/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 2340 ft. | Measured PB depth: | 2250 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | AIL/TLD/CNL/GR/CBL | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: , Depth: 204 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 108, Top: 0 ft., Bottom: 204 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 2295 ft., Weight: 15.5 , Citings Type: ACTUAL | | Cement: | Sacks: 410, Top: 1024 ft., Bottom: 2295 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 1024 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1582 ft. | N | N | | VERMEJO COAL | 1701 ft. | 2046 ft. | N | N | | TRINIDAD | 2046 ft. | 2318 ft. | N | N |
Formation RTON Formation Classification: GW Status: PR - 5/1/2021 Interval Top: 579 ft. Interval Bottom: 915 ft.| Completed Information for Formation RATON COAL | | 1st Production Date: | 3/12/2006 | Choke Size: | | | Formation Name: | RATON COAL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/23/2006 | | Treatment Summary: | ACIDIZED W/1000 GALS 15% HCL ACID. FRAC'D W/134,328 GALS 20# DELTA 140 W/SANDWEDGE NT CARRYING 27,800# 16/30 & 316,000# 12/20 BRADY SAND. |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 2102 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/13/2006 | Test Method: | PUMPING | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 74 | | BTU_GAS | 1137 | | CALC_BBLS_H2O | 74 | | CASING_PRESS | 3 | | MCF_GAS | 0 | | TUBING_PRESS | 4 |
| | Perforation Data: | | Interval Top: | 579 ft. | # Of Holes: | 54 | | Interval Bottom: | 915 ft. | Hole Size: | 0.4 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 4890 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 2.309 |
| Average MCFE per Day | 13.396 |
| Federal Financial Assurance | i | |
|
|
