COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-08469		Well Classification: CBM Status: PR - 7/1/2012
Well Name/No:NEW ELK #35-01
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/1/2012
FacilityID:279154LocationID:308693
County:LAS ANIMAS #071Location:NENE 35 33S68W 6
Field:PURGATOIRE RIVER - #70830Elevation:7614 ft.
Basin:RATON BASIN
Planned Location:938FNL  678 FELLat/Long: 37.132312 / -104.958172Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.132270 / -104.957990Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 7/1/2012             Measured TD: 1825 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 7/1/2012
Wellbore Permit
Permit #:20052315 Expiration Date:8/2/2006
Proposed Depth/Form:1775 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:STATE
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:9/2/2005
Spud Date:8/24/2005Spud Date Is:ACTUAL
Measured TD:1825 ft.Measured PB depth:1731 ft.
True Vertical TD:True Vertical PB depth:
Log Types:AIL/GR/TLD/CNL/TEMP

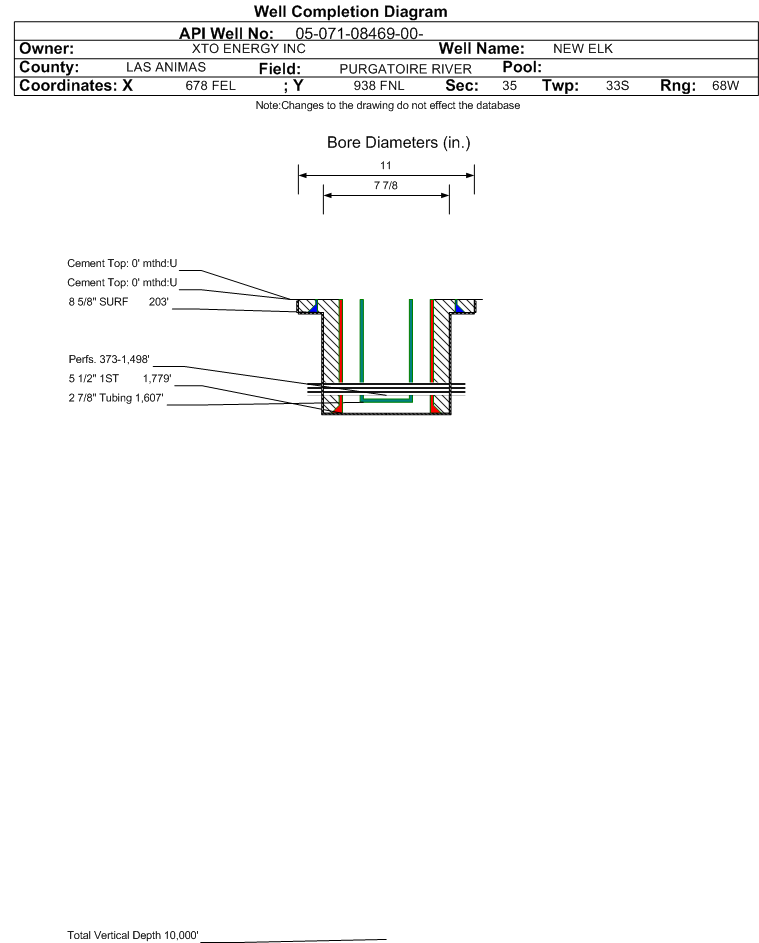

Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 203 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 110, Top: 0 ft., Bottom: 203 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 1779 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 312, Top: 0 ft., Bottom: 1779 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.1113 ft.NN
VERMEJO COAL1225 ft.1537 ft.NN
TRINIDAD1537 ft.1827 ft.NN

Formation RT-VJ                   Formation Classification:  GW                   Status:  PR - 7/1/2012                  Interval Top: 373 ft.    Interval Bottom: 1498 ft.

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:3/7/2006Choke Size:
Formation Name:RATON-VERMEJO COALSCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/20/2006
Treatment Summary:ACIDIZED W/1000 GALS 15% HCL ACID. FRACD W/68,041 GALS 203 DELTA 140 W/SANDWEDGE NT CARRYING 236,100# 12/20 BRADY SD & 27,800# 16/30 SAND.
Tubing Size:2.875 in.Tubing Setting Depth:1607 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/9/2006Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 102
BBLS_OIL 0
BTU_GAS 1003
CALC_BBLS_H2O 102
CALC_BBLS_OIL 0
CALC_MCF_GAS 2
CASING_PRESS 10
MCF_GAS 2
TUBING_PRESS 5
Perforation Data:
Interval Top:373 ft.# Of Holes:72
Interval Bottom:1498 ft.Hole Size:0.4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)39038
GOR
GOR DeterminationMCFE
Average BOE per Day18.444
Average MCFE per Day106.969

 Federal Financial Assurance  i

 Tribal Well  i No
