Wellbore #00 Wellbore Classification: CBM Status: PR - 11/19/2018 Measured TD: 2550 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 11/19/2018 | | Wellbore Permit | | | Permit #: | 20051797 | Expiration Date: | 6/15/2006 | | Proposed Depth/Form: | 2500 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: |
| | |

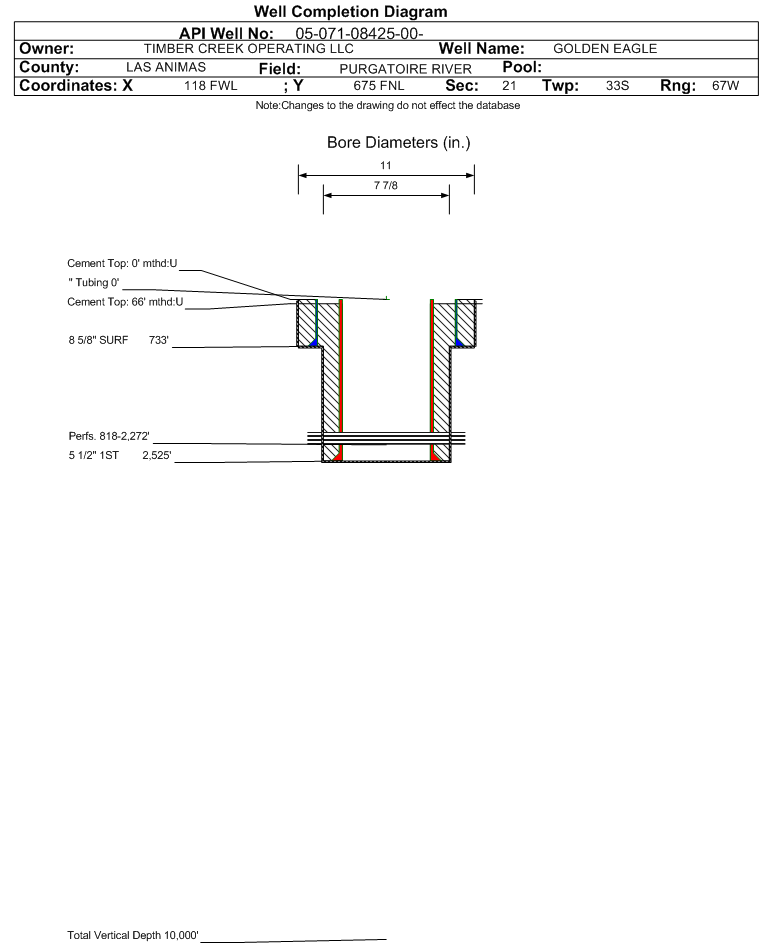

| Wellbore Completed | | Completion Date: | 9/3/2005 | | Spud Date: | 6/24/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 2550 ft. | Measured PB depth: | 2475 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | GR/CBL/CCL/AIL/TLD/CNL/TEMP LOGS | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 733 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 318, Top: 0 ft., Bottom: 733 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2525 ft., Weight: 15.5 , Citings Type: ACTUAL | | Cement: | Sacks: 405, Top: 66 ft., Bottom: 2525 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1769 ft. | N | N | | VERMEJO COAL | 1870 ft. | 2296 ft. | N | N | | TRINIDAD | 2296 ft. | 2542 ft. | N | N |
Formation RT-VJ Formation Classification: GW Status: PR - 11/19/2018 Interval Top: 818 ft. Interval Bottom: 2272 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | 10/1/2005 | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/14/2018 | Treatment End Date: | 10/5/2018 | | Treatment Summary: | Perforate Raton Coal intervals with 3 SPF and 120 degree phasing listed by stage and fraced Raton Coal intervals including Stage 1 - 1744' - 46', 1710' - 12' and 1647' - 48', Stage 2 - 1167' - 70', 1115' - 18' and 1101' - 09', Stage 3 - 1047' - 50', 1009' - 14' and 984' - 87', Stage 4 - 905' - 06', 899' - 900', 891' - 92', 806' - 61', 857' - 58', 830' - 31' and 818' - 20' (38' net or 114 holes). A total of 110,712 gallons of produced water with 120,162 gallons of x-link and 190,749 lbs of 16/30 sand were pumped. All four stages were pumped according to design.
The ECWS #33 rigged down and moved to next location. Well was cleaned out to PBTD and returned to production as a commingled Raton Vermejo well. | | Total fluid used in treatment (bbls): | 5497 | Max pressure during treatment (psi): | 3637 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 4 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.47 | | Recycled water used in treatment (bbls): | 5497 | Total flowback volume recovered (bbls): | 0 | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | | | Total proppant used (lbs): | 190749 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Date: | 9/3/2005 | | Treatment Summary: | ACIDIZED W/ 1500 GALS 15% HCL ACID. FRAC'D W/ 137,457 GALS 20# DELTA 140 S/ SANDWEDGE NT CARRYING 246,700# 16/30 BRADY SAND |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/9/2018 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 35 | | BBLS_OIL | 0 | | BTU_GAS | 1000 | | CALC_BBLS_H2O | 35 | | CALC_MCF_GAS | 137 | | CASING_PRESS | 2 | | MCF_GAS | 137 | | TUBING_PRESS | 5 |
| | Perforation Data: | | Interval Top: | 818 ft. | # Of Holes: | 173 | | Interval Bottom: | 2272 ft. | Hole Size: | 0.4 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 15818 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 7.476 |
| Average MCFE per Day | 43.350 |
| Federal Financial Assurance | i | |
|
|
